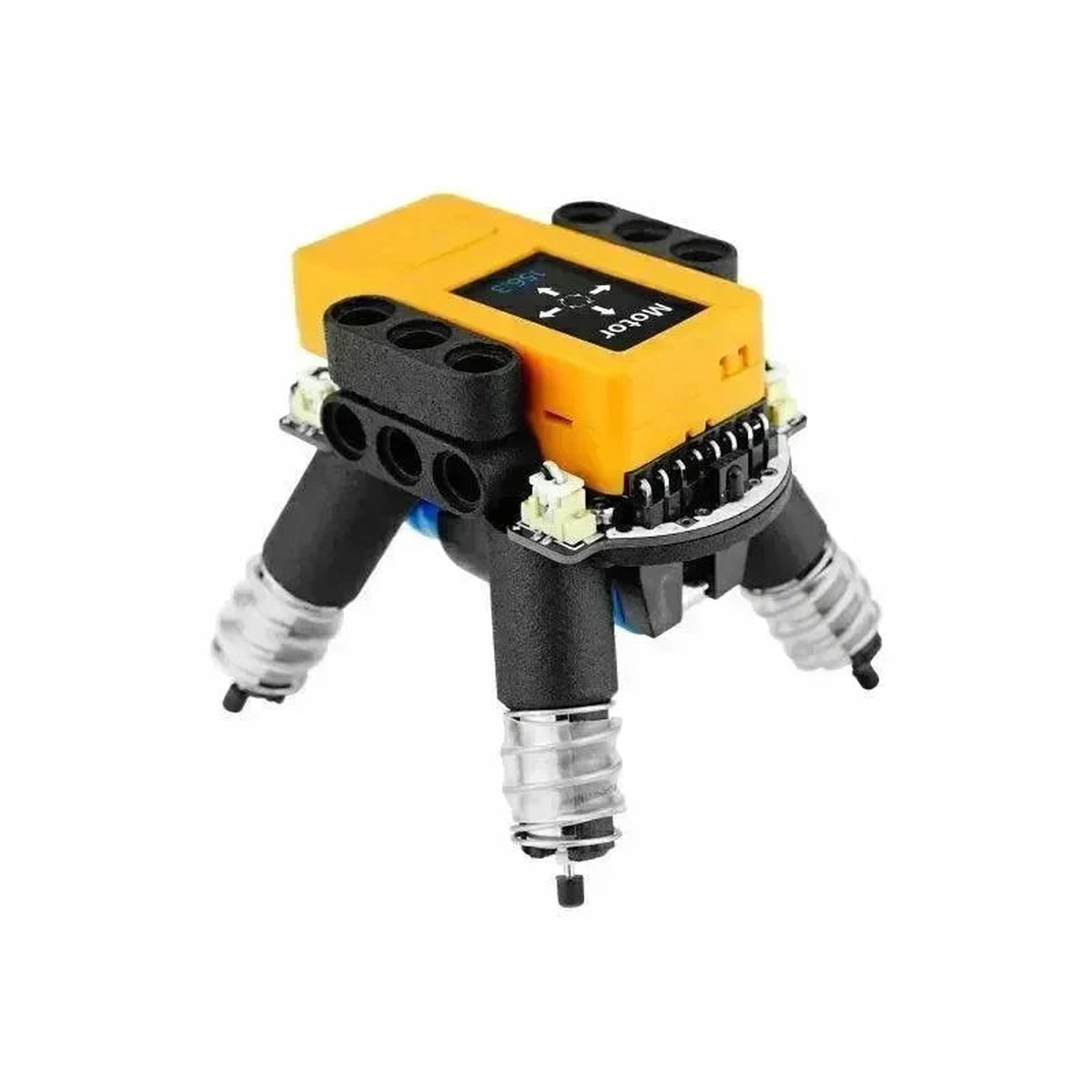

M5Stack BugC2 w/ M5StickC PLUS2

M5Stack BugC2 w/ M5StickC PLUS2

Electronic Components

M5Stack BugC2 w/ M5StickC PLUS2

Price
Original price was: $88.99.Current price is: $44.50.

SKU:

US31209389

Category:

Shopping information

Description

BugC2 is a programmable robot base compatible with M5StickC series controllers. It integrates a four-channel L9110S motor driver, DC geared motors, and an STM32F030F4 core control chip.

The base includes two programmable RGB LEDs, an infrared encoder, and a dedicated battery holder. Through the top slot, BugC2 connects tightly with the M5StickC controller and receives control commands via the I2C protocol at address 0x38.

BugC2 also includes a Type-C charging interface, battery reverse connection protection, and voltage detection. Its built-in 700mAh 16340 rechargeable lithium battery supports longer operation for educational, robot control, and smart toy applications.

Note: The transparent plastic film on the outside of the BugC2 foot springs is designed to prevent the springs from falling off. Do not remove it, otherwise the springs may detach and affect normal device operation.

Features

  • Programmable robot base
  • Remote control support
  • Four-channel motor driver: L9110S
  • 2 x RGB LED
  • Infrared remote decoding
  • Battery voltage detection
  • Onboard Type-C battery charging
  • Battery reverse connection protection
  • I2C control protocol, address 0x38

Specifications

Specification Parameter
MCU STM32F030F4P6
Motor Driver L9110S
Infrared Receiver SL0038GD
RGB WS2812C-2020
Battery Capacity 700mAh (Model: 16340)
Standby Current Avg: [email protected]
Operating Current Avg: [email protected]
IR Detection Range (StickC Plus2) 180 infrared emission range: 560cm; 90 infrared emission range: 400cm
Operating Temperature 0~40C
Product Size 53.5 x 53.5 x 51.5mm
Product Weight 74.5g
Package Size 71.7 x 70 x 58mm
Package Weight 87.9g

Interface

  • I2C control interface, address 0x38
  • Type-C charging interface
  • Four-channel DC motor driver output
  • Infrared receiver
  • RGB LED control
  • Battery voltage detection

Applications

  • Remote motor control
  • Robot control
  • Smart toys

Product List

  • 1 x StickC Plus2
  • 1 x BugC2 Base
  • 12 x Silicone Foot Pads

Resources

  • Official Documentation
  • BugC2 Schematics PDF
  • BugC2 Model Size PDF
  • L9110S Datasheet
  • BugC2 Arduino Library
  • BugC2 Internal Firmware
  • BugC2 Protocol
  • BugC2 Test Example EasyLoader
  • Official Product Video

FAQ

What controller does BugC2 use?

BugC2 uses the STM32F030F4P6 as its core control chip.

What motor driver is built in?

It uses the L9110S four-channel motor driver.

How does BugC2 communicate with M5StickC series controllers?

It receives control commands via the I2C protocol at address 0x38.

What battery does BugC2 include?

It includes a 700mAh 16340 rechargeable lithium battery.

Should the transparent film on the foot springs be removed?

No. The film prevents the foot springs from falling off and should not be removed.
