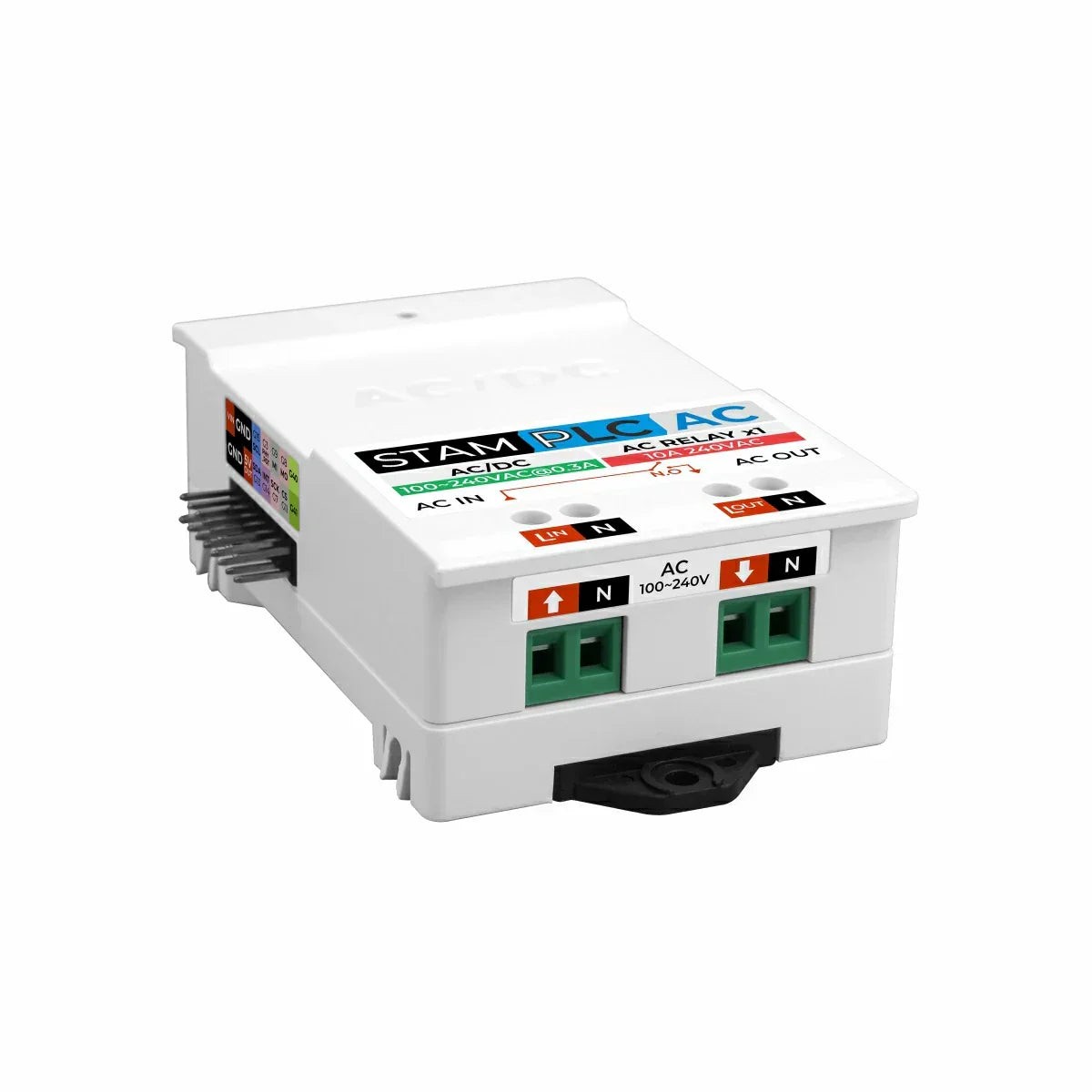

StamPLC AC is an AC relay expansion module compatible with the StamPLC host.

It integrates AC load control + system power supply, simplifying wiring during application development .

Equipped with a contact-type relay (SPST normally open), supporting up to AC 240V @ 10A line switching

Built-in AC-DC isolated conversion circuit supports AC 100240V input, powering both the relay load and providing a stepped-down DC 12V output for the main system .

Includes a programmable tri-color RGB LED for working status indication .

The StamPLC controller communicates via I2C protocol using an IO expansion chip to control the relay and RGB LED, saving IO resources .

Ideal for industrial-level applications such as AC load switching and solenoid valve control .

Features

Integrated Power Supply & Control Simplifies wiring for faster setup

Contact-Type Relay Reliable switching mechanism

Built-in AC-DC Isolated Conversion Supports AC 100240V wide input range

Programmable Tri-Color LED Clear status indication

I2C Protocol Control Efficient communication, saves IO resources

DIN Rail / Mounting Hole Installation Flexible and secure mounting options

Development Platforms Compatible with Arduino & UiFlow2

Includes

• 1 x StamPLC AC
• 2 x Fixed connectors

Applications

• AC/DC load ON/OFF control
• Solenoid valve control
• Remote control of industrial equipment
