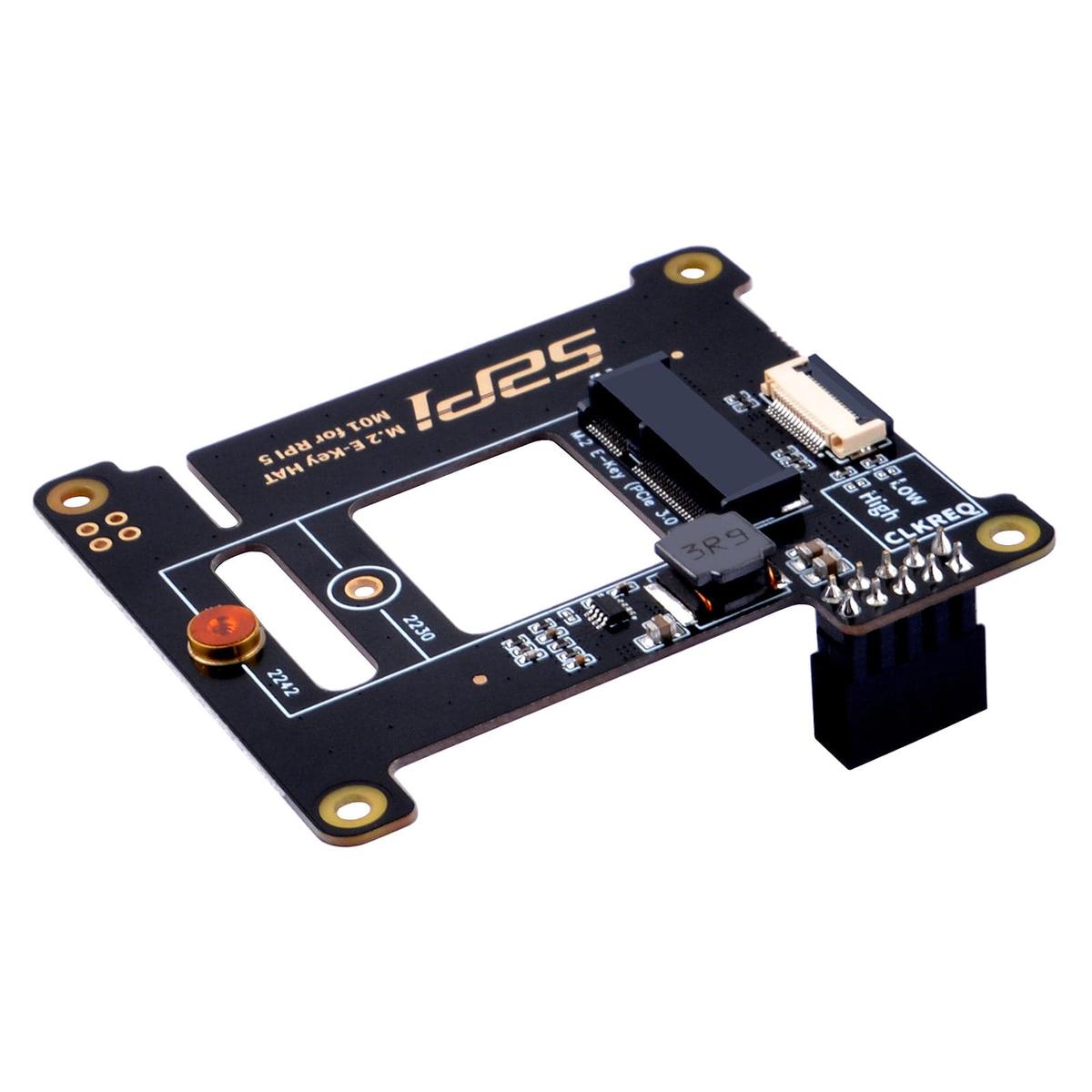

The 52Pi M.2 E-Key HAT (M01) provides a 2230/2242 size M.2 E-key expansion slot for the Raspberry Pi 5, making it convenient to connect M.2 E-Key expansion cards, such as the Google Coral Edge TPU or other common wireless/wired network cards etc.

This add-on is compatible with the standard HAT size of Raspberry Pi and supports two sizes of M.2 cards: 2230 and 2242. The included mounting screws make it convenient to switch between the two sizes at any time.

Raspberry Pi and M.2 device not included

Features

• Designed for Raspberry Pi 5: Dedicated to the latest single-board computer from Raspberry Pi
• PCIe Support: PCIe x1 interface in both Gen2 & Gen3 standards
• Hollow design: Hollow design provides excellent ventilation airflow
• Camera/Display FPC cutout: The openings in the PCB allow the routing of two Display/Camera FPC cables
• Gold-plated PCB: Superior electrical performance.
• PCIe ultra-short signal lines: The short trace routing of PCIe is more reliable and faster, fully meeting the signal requirements of PCIe 3.0
• LED Indicators: LED light for M.2 device status
• M.2 Standard-Compliant Power System: Integrated voltage regulator delivering up to 3A for the 3.3V power rail, compliant with M.2 standard
• Accessories Included: Comes with an FPC PCIe ribbon, M2 and M2.5 screws, spacers, and an extra custom CNC SSD mount screw

Resources

• Product Wiki

Package Contents

• 1 x M01 M.2 2242 E-key Top
• 1 x 8.5x40mm PCIe FFC cable (40mm length)
• 8 x M2.5x4mm Screws
• 4 x M2.5x17mm Copper pillar
• 1 x M2x4mm Screws(for fixing E-key extension board)
• 1 x M2.5 Screwdriver

Raspberry Pi and M.2 device not included
