Specifications:

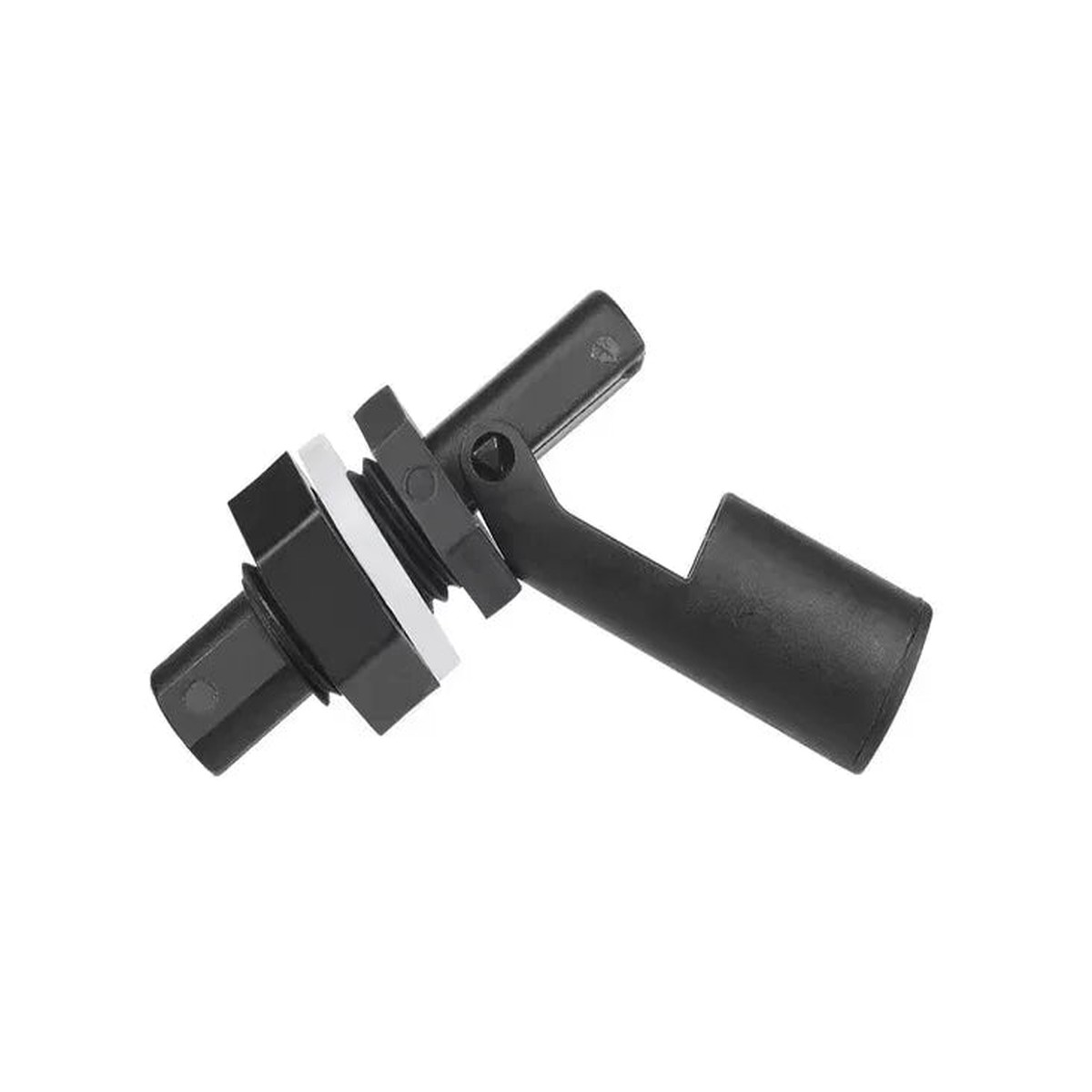

• Model NO.: LSYZ-1
• Installation : Side
• Switching Type: NO or NC
• Material: PP
• Working Temperature: -10~80
• Wire Gauge: UL 3266 22AWG
• Wire Length: 300mm
• Switching Voltage: 110 VDC
• Switching Current: 0.5A
• Contact Rating: 10W
• Float level switch is widely used in tank level auto control system, startup and shutdown the water pump or electric valve on the basis of liquid level.
• Vertical installation switch can be mounted on the top or bottom of liquid tank; side installation switch can be mounted on the wall of liquid tank.
• Switching type definition:
  • NO: Normally open,mounted switch on the top of tank, switching ON when float rising.
  • NC: Normally close,mounted switch on the top of tank, switching OFF when float rising.
