These devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

Features:

• Type: Differential
• Number of Elements:4
• Output Type: CMOS, MOS, Open-Collector, TTL
• Voltage – Supply, Single/Dual ():2 V ~ 36V, 1 V ~ 15 V
• Voltage – Input Offset (Max):5mV @ 30V
• Current – Input Bias (Max):0.25A @ 5V
• Current – Output (Typ):20mA
• Current – Quiescent (Max):2.5mA
• Operating Temperature:0C ~ 70C
• Mounting Type: Surface Mount
• Supplier Device Package:14-SOIC
• Base Part Number:LM339

Package Includes:

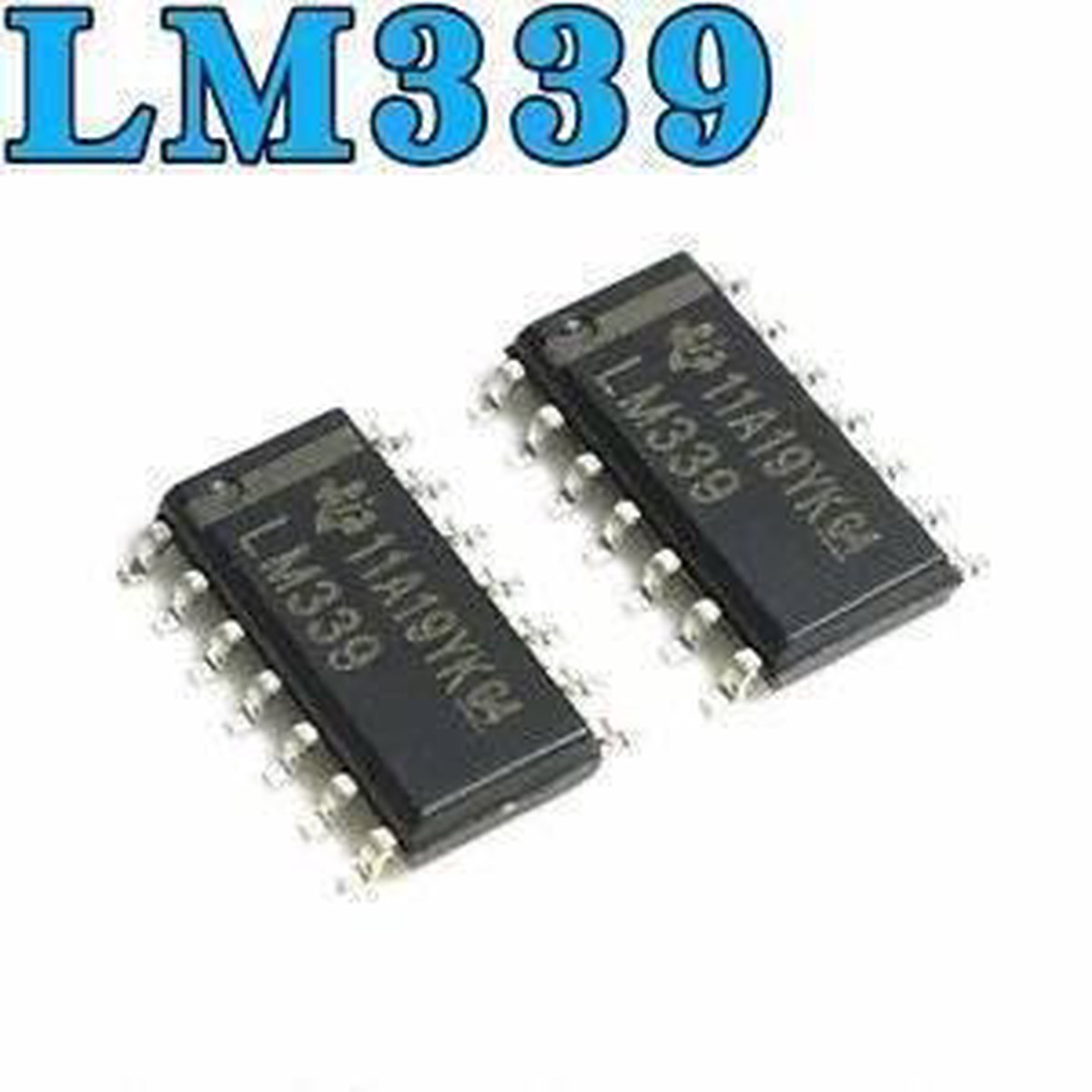

1 xLm339 Quad Comparator SMD
