If you have ever tried to drop a 12V battery down to 5V to power an Arduino using a classic LM7805 linear regulator, you know they get dangerously hot. They work by burning off the excess voltage as pure heat. The LM2596S-ADJ solves this massive inefficiency. It is a monolithic integrated circuit that provides all the active functions for a step-down (buck) switching regulator. Instead of burning off the difference, it rapidly switches on and off at 150kHz, efficiently converting the higher voltage into usable current.

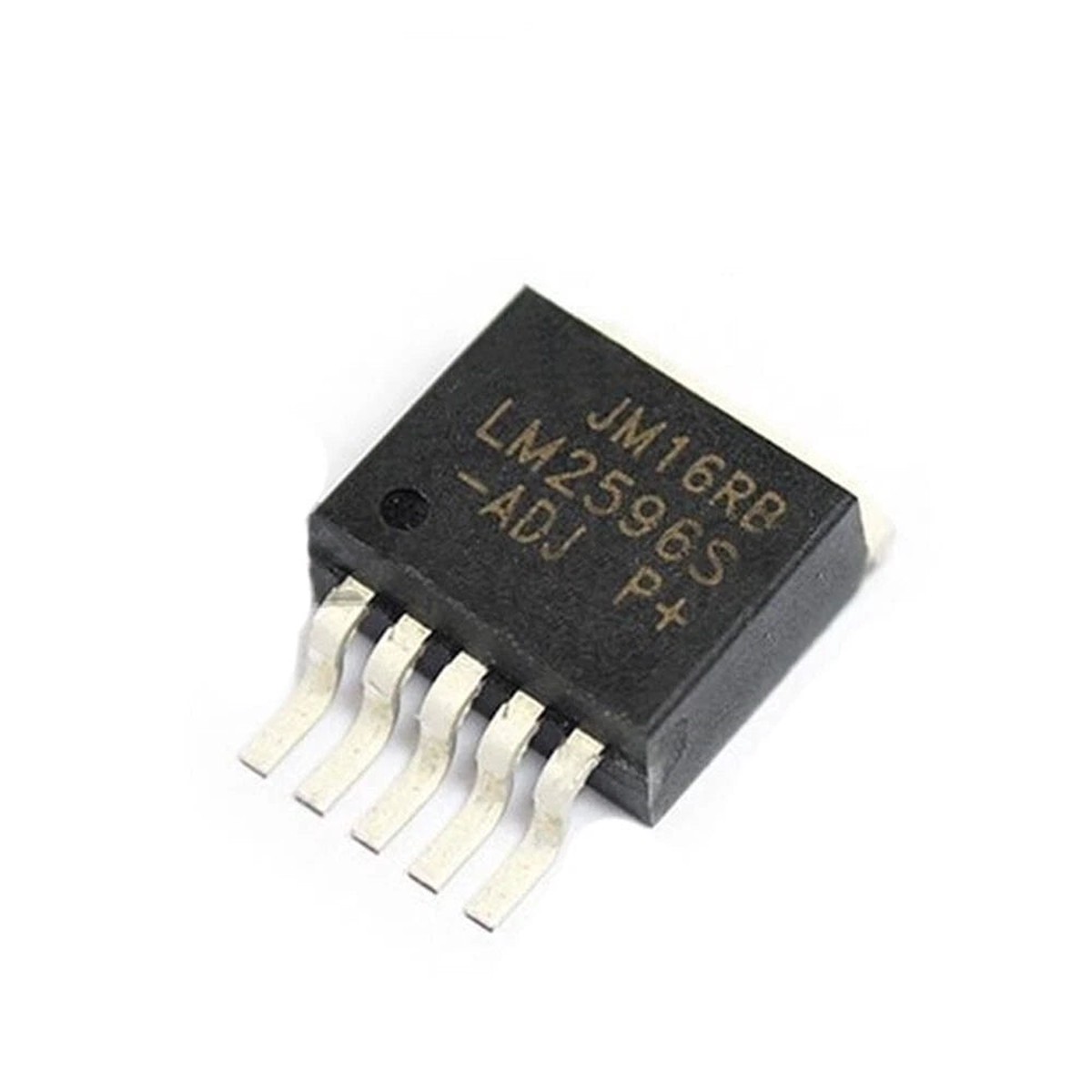

This specific chip is the exact silicon heart found on the famous blue “LM2596 Buck Converter” modules used by makers worldwide. By buying the bare IC in its robust TO-263 (D2PAK) surface-mount package, you can integrate this highly efficient power supply directly onto your custom printed circuit boards. It requires a minimum number of external componentsjust an inductor, a catch diode (like an SS34 or 1N5822), and a few capacitorsmaking the design of high-current, custom power supplies incredibly straightforward. Because this is the “-ADJ” (Adjustable) version, you can perfectly tune the output voltage from 1.23V all the way up to 37V using two external resistors.

Key Features & Functional Advantages:

• High Efficiency Switching: Operates as a buck converter, running vastly cooler and more efficiently than standard linear regulators, especially when the voltage drop is significant.

• Massive Current Capacity: Capable of driving a massive 3 Amp continuous load with excellent line and load regulation, providing plenty of power for thirsty microcontrollers, displays, and servos.

• Fully Adjustable Output: Requires just two external resistors (or a single potentiometer) to tune the output voltage down to a highly precise 1.23V, no matter what the input voltage is doing.

• Built-in Protection: Features integrated thermal shutdown circuitry and highly reliable current-limiting, preventing the chip from destroying itself under heavy loads or short circuits.

• 150 kHz Internal Oscillator: Because it switches at a relatively high frequency, you can use significantly smaller, cheaper external filter capacitors and inductors compared to older, slower switching regulators.

Perfect For:

• Custom PCB Power Supplies: The standard silicon choice for integrating reliable 5V or 3.3V power rails directly onto your custom robotics or IoT motherboards.

• Battery Step-Down: Excellent for taking 12V or 24V from lead-acid batteries or large LiPo packs and stepping it down to run sensitive microcontrollers.

• Solar Power Systems: Frequently used in DIY solar setups to regulate fluctuating panel voltages into a steady, usable output for charging devices.

• High-Power LED Drivers: A highly efficient way to build constant-voltage driver circuits for high-brightness 3W and 10W LEDs.

Technical Specifications:

• Regulator Type: Step-Down (Buck) Switching Regulator

• Output Type: Adjustable (-ADJ)

• Input Voltage Range: 4.5V to 40V DC

• Adjustable Output Voltage: 1.23V to 37V DC

• Maximum Output Current: 3A (Note: Heavy continuous loads above 2A will require the PCB’s copper plane to act as a heatsink).

• Switching Frequency: 150 kHz

• Protection: Thermal Shutdown & Current Limiting

• Package / Case: TO-263-5 (D2PAK – 5 Leads + Tab)

• Mounting Type: Surface Mount (SMD/SMT)
