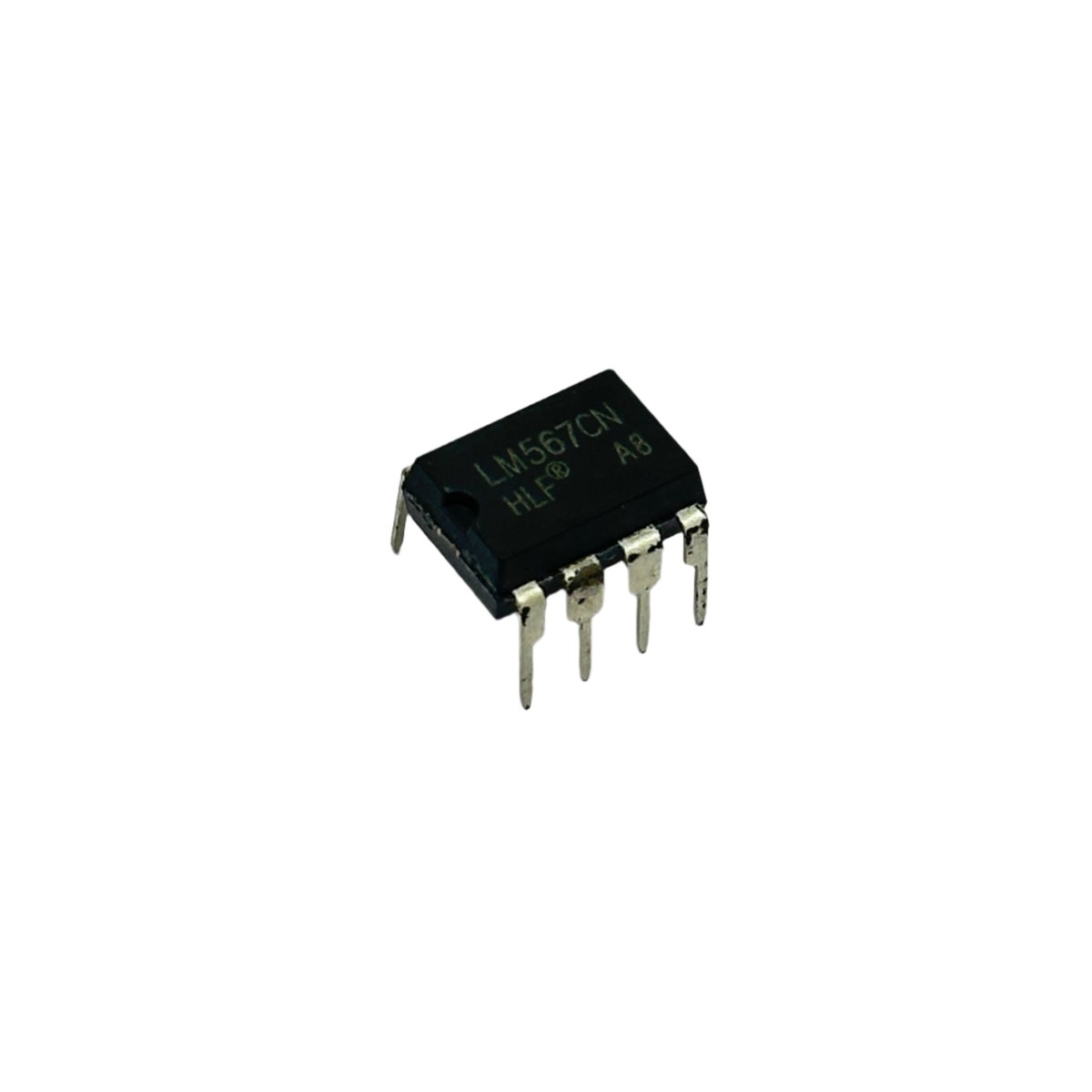

The LM 567 SEC is a tone decoder and phase-locked loop (PLL) IC designed for frequency detection and signal conditioning applications. It provides high sensitivity and reliability, making it ideal for tone detection, frequency shift keying (FSK) decoding, and communication systems.

Key Features:

• Wide Frequency Range: Operates from 0.01Hz to 500kHz, making it suitable for various signal processing applications.
• High Stability: PLL-based design ensures accurate frequency locking.
• Adjustable Bandwidth: Can be configured for narrowband or wideband frequency detection.
• Low Power Consumption: Optimized for efficient operation in battery-powered applications.
• Compact Package: Available in DIP-8 and SOIC-8 formats for easy PCB integration.

Package Includes:

• 1 x LM 567 SEC Tone Decoder/Phase-Locked Loop IC

Specifications:

• Supply Voltage: 5V to 9V
• Center Frequency: 0.01Hz to 500kHz
• Bandwidth: Adjustable
• Operating Temperature Range: -40C to +85C
• Package Type: DIP-8 / SOIC-8

Applications:

• Tone Detection
• FSK Demodulation
• Remote Control Systems
• Frequency Monitoring
• Signal Processing
