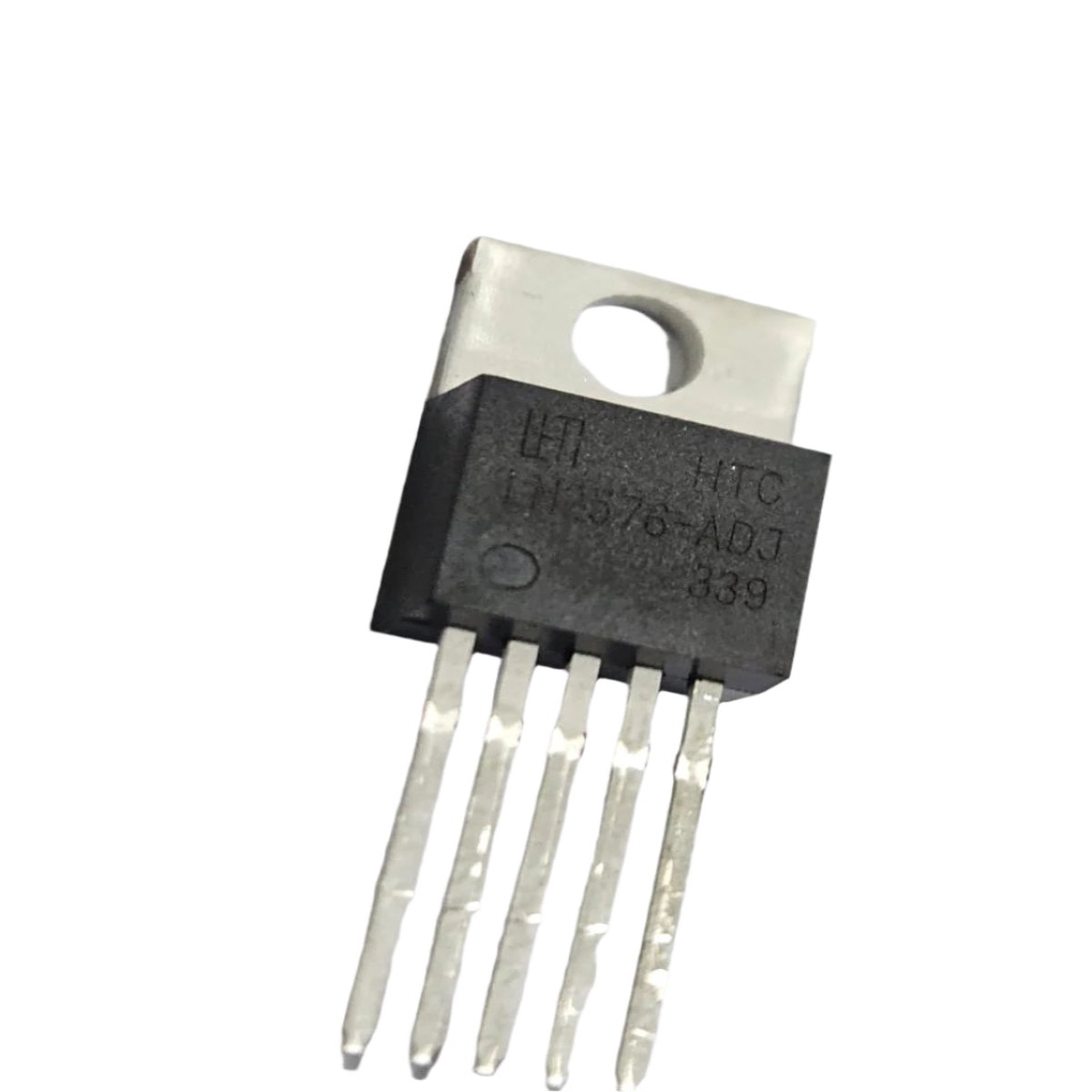

The LM 2576 – ADJ HTC is an adjustable step-down (buck) voltage regulator designed for efficient DC-DC conversion. With a wide adjustable output range and high efficiency, it is ideal for embedded power systems, industrial applications, and battery-powered devices.

Key Features:

• Adjustable Output Voltage: Provides an output range of 1.23V to 37V.
• High Efficiency: Operates at up to 90% efficiency for minimal power loss.
• High Output Current: Supports up to 3A continuous current.
• Thermal and Overload Protection: Built-in protection enhances reliability and prevents damage.
• Compact Package: Available in TO-220 and TO-263 for easy PCB integration.

Package Includes:

• 1 x LM 2576 – ADJ HTC Adjustable Step-Down Voltage Regulator

Specifications:

• Input Voltage Range: Up to 40V
• Output Voltage: 1.23V to 37V
• Maximum Output Current: 3A
• Switching Frequency: 52 kHz
• Operating Temperature Range: -40C to +125C
• Package Type: TO-220 / TO-263

Applications:

• DC-DC Voltage Regulation
• Embedded Power Management
• Battery-Powered Systems
• Industrial Power Control
• General Step-Down Converters

Datasheet:

Click here to view the datasheet
