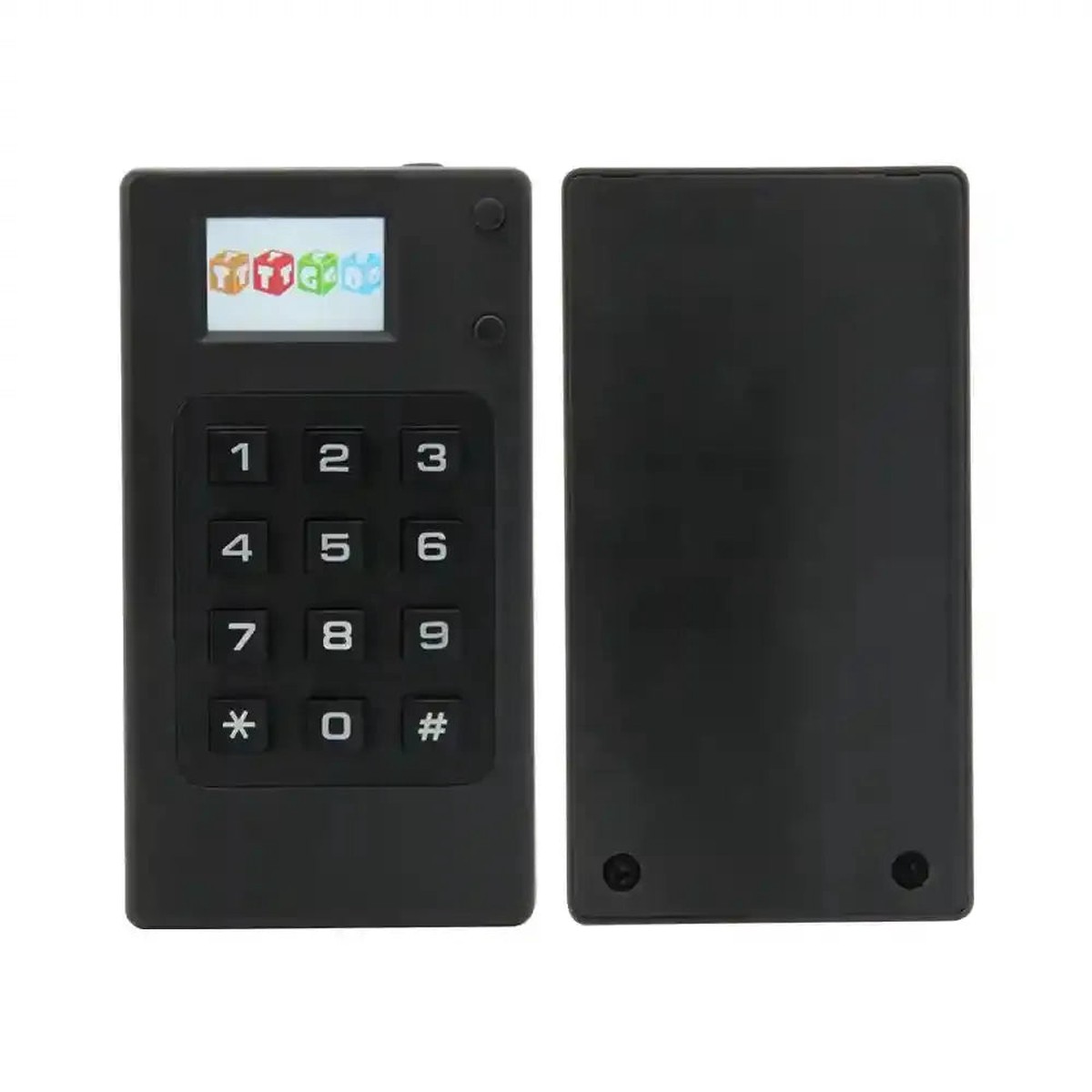

The LILYGO T-Display Keyboard is a compact development board featuring the ESP32 chipset. It includes a 1.14-inch IPS LCD screen with 240×135 resolution, making it perfect for creating handheld devices, interactive controls, and custom electronics interfaces.

Key Features:

• Chipset: ESP32 with Dual-core 240MHz processor

• Flash Memory: Available in 4MB/16MB QSPI flash options

• SRAM: 520 KB SRAM

• Display: 1.14-inch IPS ST7789V LCD with a resolution of 240×135

• Power Supply: USB Type-C with 5V/1A, Charging current 500mA

• Button: Reset button for easy reset

• Modular Interfaces: UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, DACLNA pre-amplifier

• Working Voltage: 2.7V to 4.2V

Power Supply Specifications:

• Charging Current: 500mA

• USB Connector: Type-C for seamless integration with modern power systems

• Power Supply: 5V/1A USB input

Whats in the Box (Shipping List):

Keyboard + Display 16MB

• 1 X Keyboard
• 1 X T-Display(4MB/16MB)(The product is welded and shipped by default)
• 1 X USB Type-C
• 1XJst2Pin1.25mmPowercable
• Notice:There is no battery by default.

Keyboard + Shell + Display 4MB/16MB

• 1 XT-Display Keyboard(4MB/16MB)(The product is welded Assembly shipped by default)
• 1 X USB Type-C
• Notice:Contains Type 805050 2800MAH lithium battery.

Pin Diagram

Applications:

• IoT device development

• Custom keyboard projects

• STEM education and prototyping

• Wearable devices

• Digital signage systems
