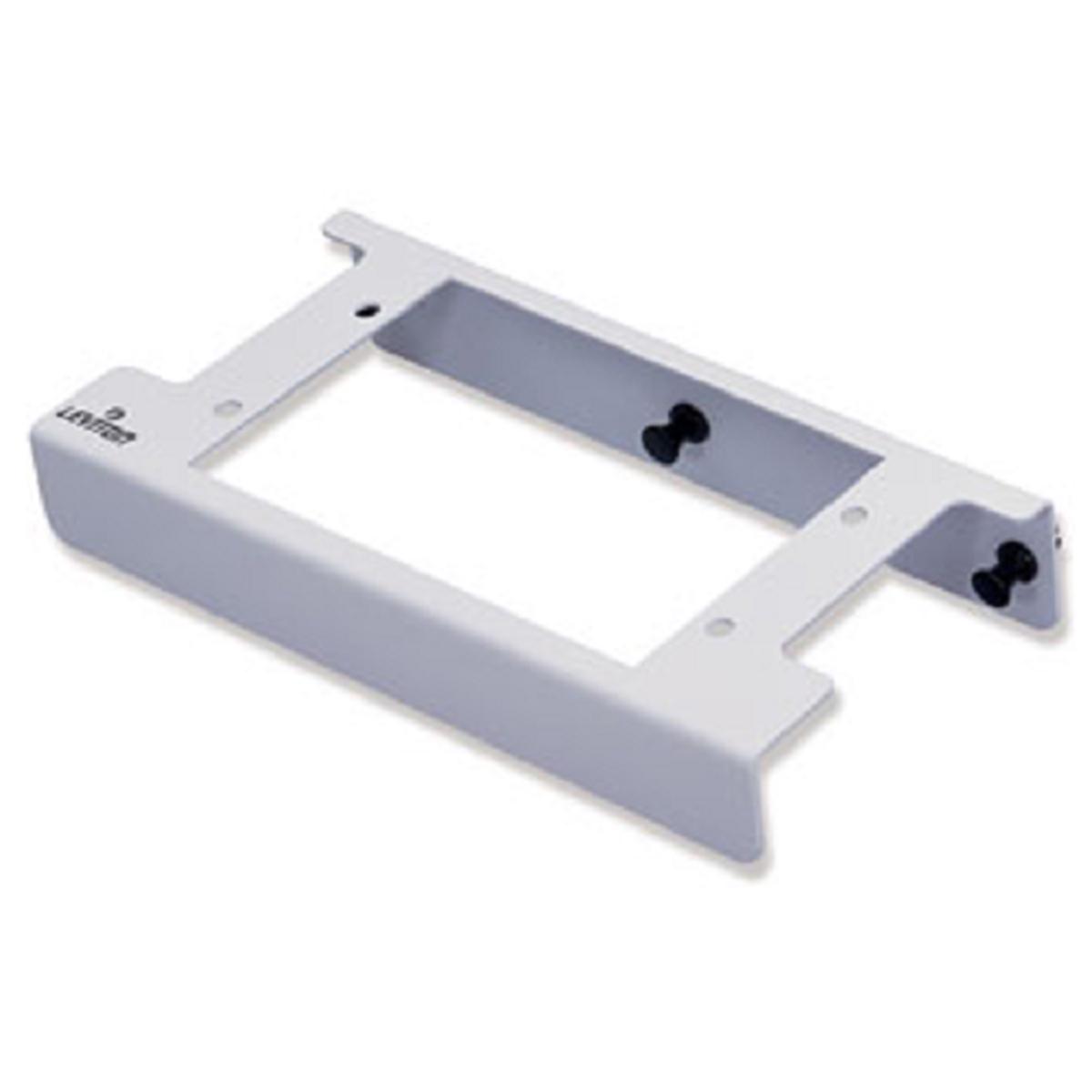

Multimedia Adapter Bracket 47612-MMA

Create a custom audio/video, copper or fiber mini-panel in a Structured Media Center with the Multimedia Adapter Bracket. The Bracket supports a choice of two 6-pack mounting plates and snaps easily into any of Levitons Structured Media Centers with push-pins. Pre-loaded mounting plates are available for BNC and F-connectors, or create a custom configuration with unloaded 6-pack QUICKPORT plates. QUICKPORT plates accept any combination of the following QUICKPORT adapters or connectors: BNC, F-Connector, ST, FC, SC and MT-RJ Fiber Optics, Banana Jacks, Speaker Binding Posts, RCA, S-Video, Voice Grade and Category 5, 5e or 6. Brackets mount vertically or horizontally.

Features

Create a custom audio/video, copper or fiber mini panel in your Structured Media Center with the Multi-Media Adapter Bracket.

Supports your choice of two 6-pack mounting plates, and snaps easily into any of Leviton’s Structured Media Centers with push-pins.

Bracket mounts vertically or horizontally.
