Technical Specifications:

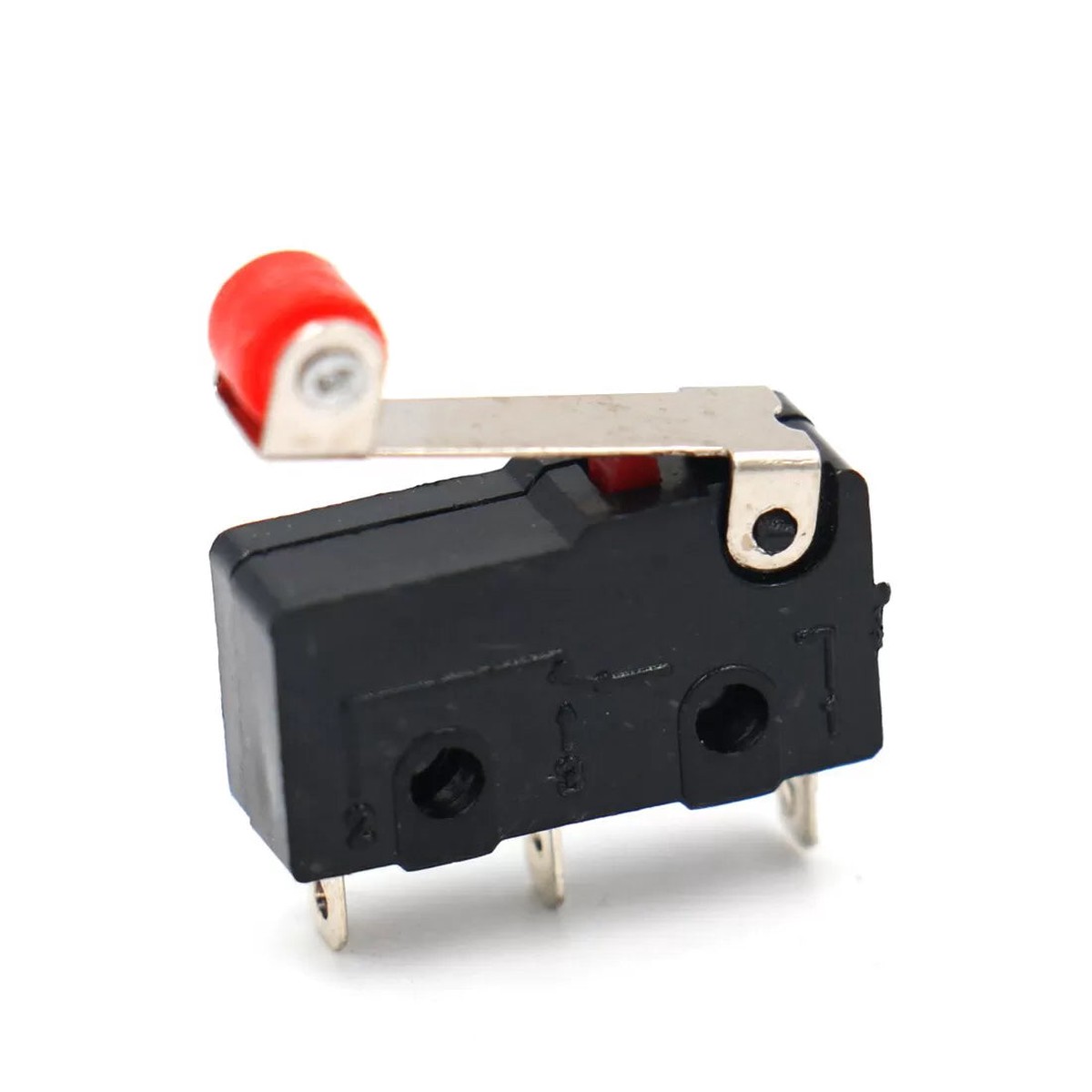

• Model: KW12-3
• Switch Type: Micro Limit Switch
• Contact Configuration: SPDT (Single Pole Double Throw)
• Terminals: 3 Pins (COM, NO, NC)
• Rated Voltage: Up to 250V AC
• Rated Current: Up to 5A
• Operating Force: Low operating force
• Actuator Type: Pin Plunger
• Mounting Type: Screw Mount
• Contact Material: Silver Alloy
• Mechanical Life: Up to 1,000,000 operations
• Electrical Life: Up to 100,000 operations
• Operating Temperature: -25C to +85C

Pin Configuration:

• COM Common
• NO Normally Open
• NC Normally Closed
