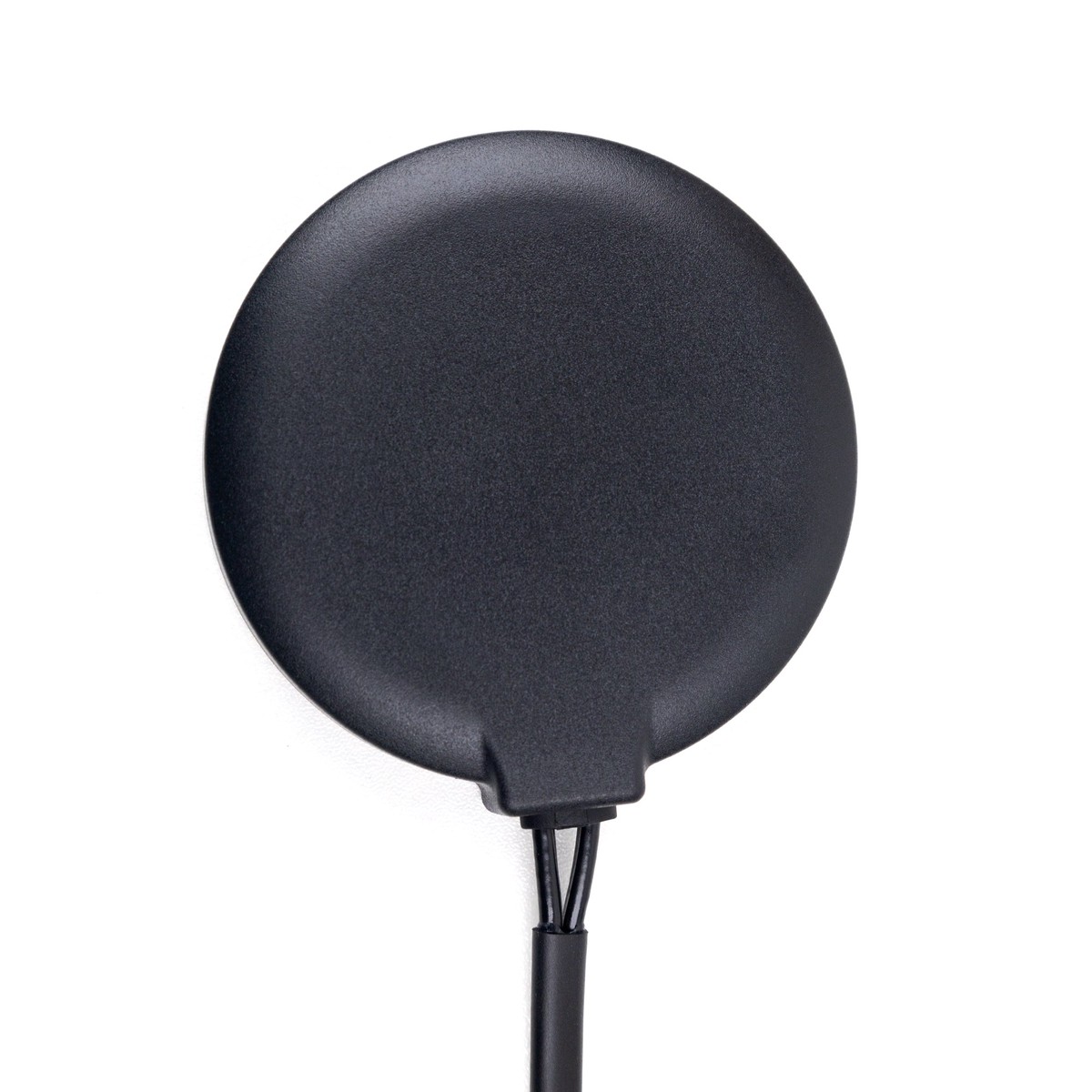

JCB305L ACTIVE GPS+LTE COMBINATION ANTENNA

Name: JCB305L ACTIVE GPS+LTE COMBINATION ANTENNA
SKU: US31254337
Availability: InStock

Price

SKU:

US31254337

Category: Electronic Components

Shopping information

Description

JCB305L Active GPS and LTEcombined antenna simplifies your AVL application with a work voltage from 2.2 to 5.0 V, max current 15mA, cable length up to 5m. Different connector types and cable length are available according to users’ specifications.

Specifications:

Item	Specifications
GPSAntenna	Dielectric Antenna	FrequencyRange	1575.423MHz
Polarization	RHCP
Gain	2dBicZenith
V.S.W.R	1.5
Impedance	50
LNA	Gain	282dB
Noise Figure	1.5dB
V.S.W.R	2.0
Supply Voltage	3~5V DC
Current Consumption	15mA
LTEAntennaMAIN	Frequency Range	698~960MHz/1710~2690MHz
V.S.W.R	3.0
Polarization	Linear
Gain	2.5dBiZenith
Impedance	50
LTEAntennaAUX	Frequency Range	698~960MHz/1710~2690MHz
V.S.W.R	3.0
Polarization	Linear
Gain	2.0dBiZenith
Impedance	50
Mechanical	Cable	RG174
Connector	SMA/FAKRA or others
Material	ABS
Mounting Method	Adhesive/Magnet
Environmental	Operating Temperature	-40~+85
Relative Humidity	Up to 95%
Ingress Protection	IP67
Vibration	10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly	ROHS Compliant
