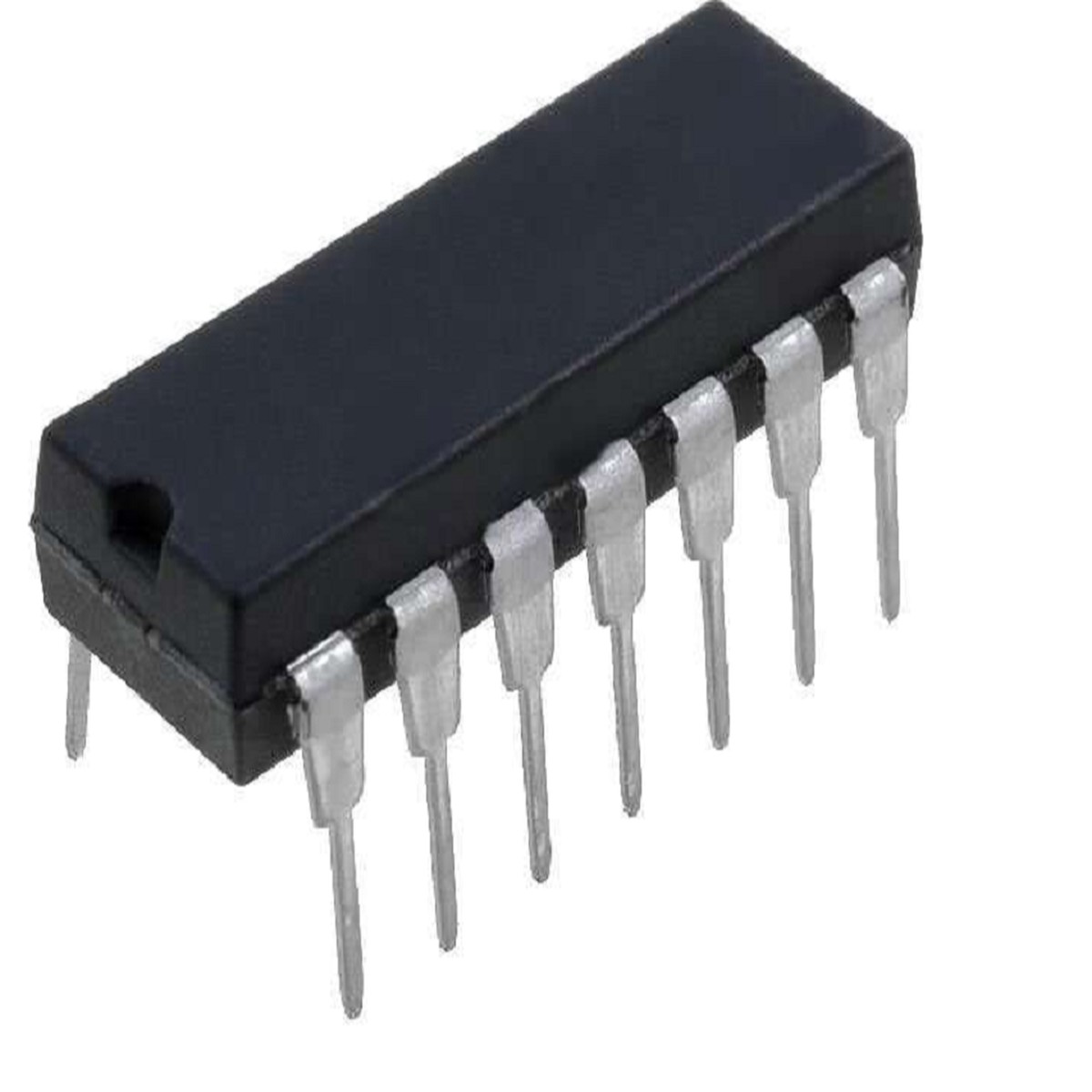

The IR 2156 is a high-performance ballast control IC with an integrated half-bridge driver, designed for driving fluorescent and HID lamps with high efficiency. Its advanced features ensure optimal lamp ignition and power regulation, making it ideal for industrial and commercial lighting applications.

Key Features:

• Integrated Half-Bridge Driver: Simplifies circuit design and enhances efficiency.
• Programmable Preheat and Ignition Timing: Allows precise control of lamp startup.
• Overvoltage, Overcurrent, and Thermal Protection: Ensures reliable operation in demanding environments.
• Low Standby Power Consumption: Reduces energy waste and enhances efficiency.
• Compact Package: Available in DIP-14 and SOIC-14 for easy PCB integration.

Package Includes:

• 1 x IR 2156 Ballast Control IC with Integrated Half-Bridge Driver

Specifications:

• Supply Voltage: 10V to 15.6V
• Operating Frequency: Programmable
• Preheat and Ignition Timing: Adjustable
• Operating Temperature Range: -40C to +125C
• Package Type: DIP-14 / SOIC-14

Applications:

• Electronic Ballasts
• Fluorescent Lamp Drivers
• High-Intensity Discharge (HID) Lighting
• Industrial Lighting Systems
• Energy-Efficient Lighting Control

Datasheet:

Click here to view the datasheet
