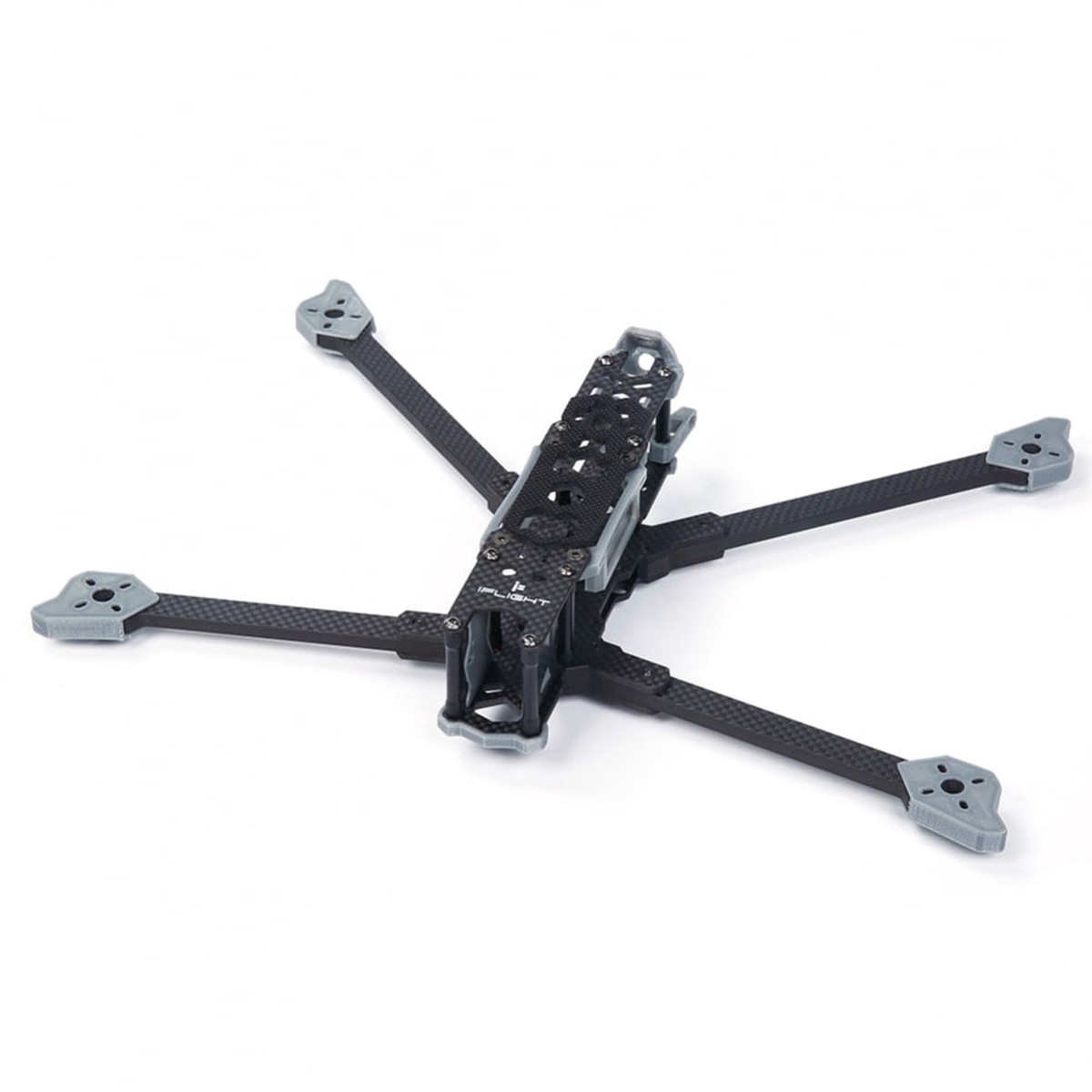

The Titan DC7 HD is a 7 inch long range quadcopter frame in a deadcat quad configuration which ideal for long range keeping the front props out of view of your camera. In addition this frame can also fit the DJI FPV system in the middle to maintain a neutral COG

Features

• Popular Deadcat style configuration, No prop in View

• Optimised weight distribution: DJI unit and Stack centred

• Fits both 30.5x and 20x stacks

• Full 3K Carbon Fiber airframe with chamfered boomerang arm

• 333mm wheelbase, weight: 208.8g dry with TPU parts

Specifications

• Weight: 208.8 (with TPU parts, and battery anti-slip pads)

• Wheelbase: 333mm

• Main body dimension: 330*223mm

• Bottom to top distance: 35mm

• Arm thickness: 6mm

• Bottom plate thickness: 3mm

• Top plate thickness: 2.5mm

• Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)

• Mounting Holes: 30.5*30.5mm / 20*20mm

• Support camera size: 19*19mm 22*22mm

• Recommended motors: 22xx, 23xx

Included

-1 x TITAN DC7 HD Frame

-1 x Screw Bag

-1 x TPU Camera mount adapters

-4 x Arm guard/Motor mount

-1 x TPU DJI Air Unit Bracket Mount

-1 x TPU DJI Air Unit Antenna Mount

-1 x TPU bottom plate front protective mount

-1 x TPU bottom plate rear protective mount

-1 x Battery Anti-slip Mat

-2 x Battery Straps

NOTE: This frame kit does not include any electronics
