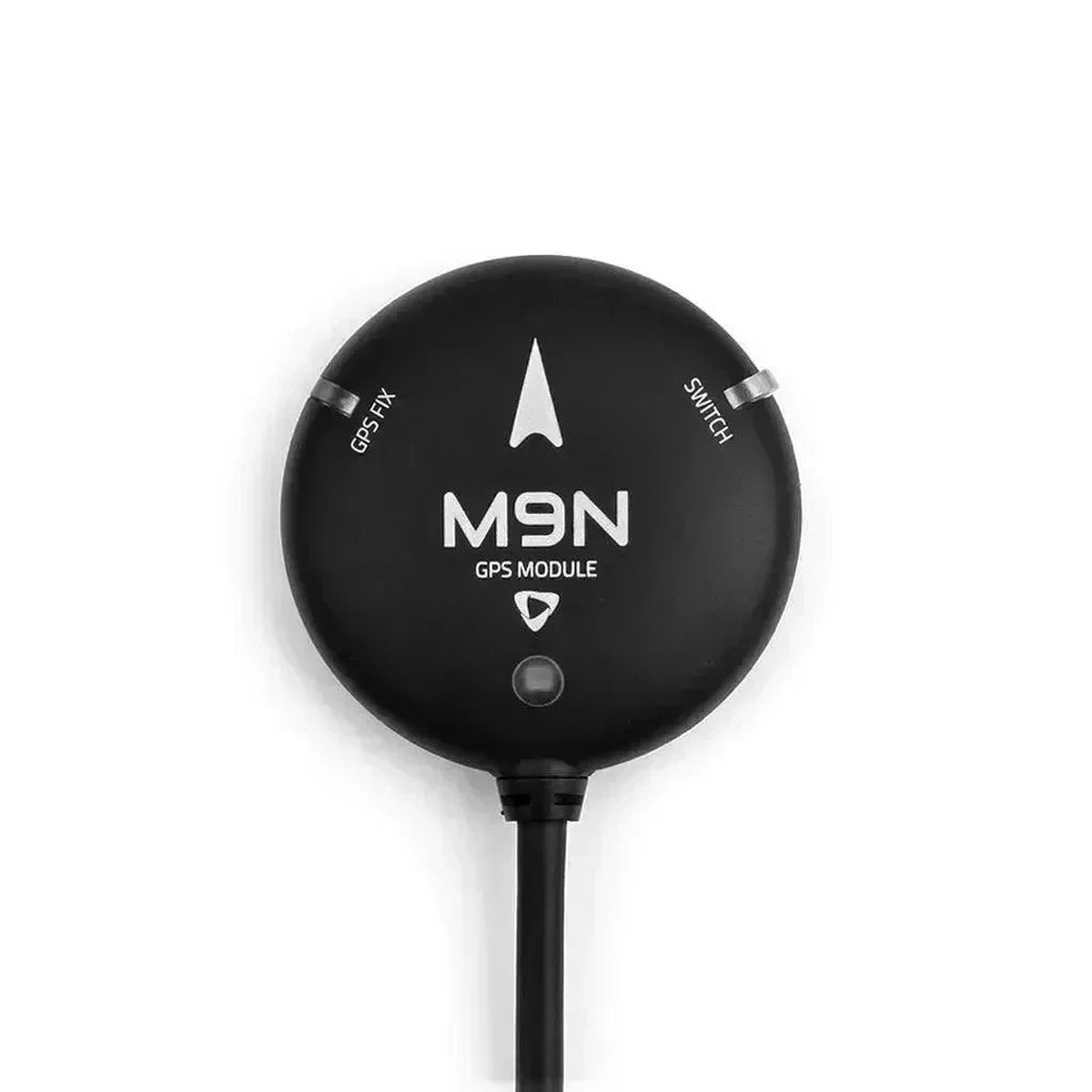

Holybro GPS M9N

Holybro GPS M9N

Electronic Components

Holybro GPS M9N

Price
Original price was: $104.00.Current price is: $52.00.

SKU:

US31209609

Category:

Shopping information

The M9N GPS uses multi-constellation GNSS powered by u-blox M9N,a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation.It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Feature

  • Ublox M9N GNSS Reciever

  • Accurate Positioning

  • Fast Navigation Update Rate

  • IST8310 Compass

  • High-gain 25*25*4mm antenna

  • Internal Buzzer, Safety switch

  • Ultra Bright UI RGB LED

Note

  • The Status LED driver has changed. This LED is support inPX4 1.14, ArduPilot 4.4.0 & later. (More info)

Holybro M10 GPS Holybro M9N GPS
GNSS Receiver Ublox M10 Ublox M9N
Number of Concurrent GNSS Up to 4 GNSS Up to 4 GNSS
BeiDou BeiDou
Galileo Galileo
GLONASS GLONASS
GPS GPS
QZSS QZSS
Frequency Band GPS L1 GPS L1
Galileo E1 Galileo E1
GLONASS L1 GLONASS L1
BeiDou B1 BeiDou B1
SBAS L1 SBAS L1
QZSS L1 QZSS L1
Compass IST8310 IST8310
Output Protocol UBX (U-blox) UBX (U-blox)
NMEA NMEA
Accuracy 2.0m CEP 1.5m CEP
Nav. Update Rate Up to 25 Hz (single GNSS), Up to 25 Hz(4 concerrent GNSS)
Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System EGNOS, GAGAN, MSAS and WAAS EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S QZSS: L1S
Default Baud Rate 115200 115200
Input Voltage 4.7-5.2V 4.7-5.2V
Port Type JST-GH-10P JST-GH-10P
Antenna 25 x 25 x 4 mm ceramic patch antenna 25 x 25 x 4 mm ceramic patch antenna
Power consumption Less than 200mA @ 5V Less than 200mA @ 5V
Operating Temperature -40~80C -40~80C
Dimension 50 x14.4 mm 50 x14.4 mm
Weight 32g 32g
Cable Length 26cm (42cm cable purchase separately) 26cm (42cm cable purchase separately)
Other Tri-color LED Tri-color LED
Onboard Buzzer Onboard Buzzer
Safety Switch Safety Switch
LNA MAX2659ELT+ RF Amplifier LNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitance Rechargeable Farah capacitance
Low noise 3.3V regulator Low noise 3.3V regulator

    Ardupilot User:If unable to preform normal compass calibration “compass dance” for any reason, set parameterCOMPASS_ORIENT=6(Yaw270) for proper compass orientation.

    PIN MAP

    Reference Link:

    • Holybro Documentation

    • Ardupilot IST8310 Compass Orientation

    • Dimension

    • 3D CAD File Downloads

    Package Includes:

    • 1x M9N GPS Module

    • 1xFixed Carbon Fiber GPS mount

    Spare Part & Accessories

    • GPS Extended Length Cable
