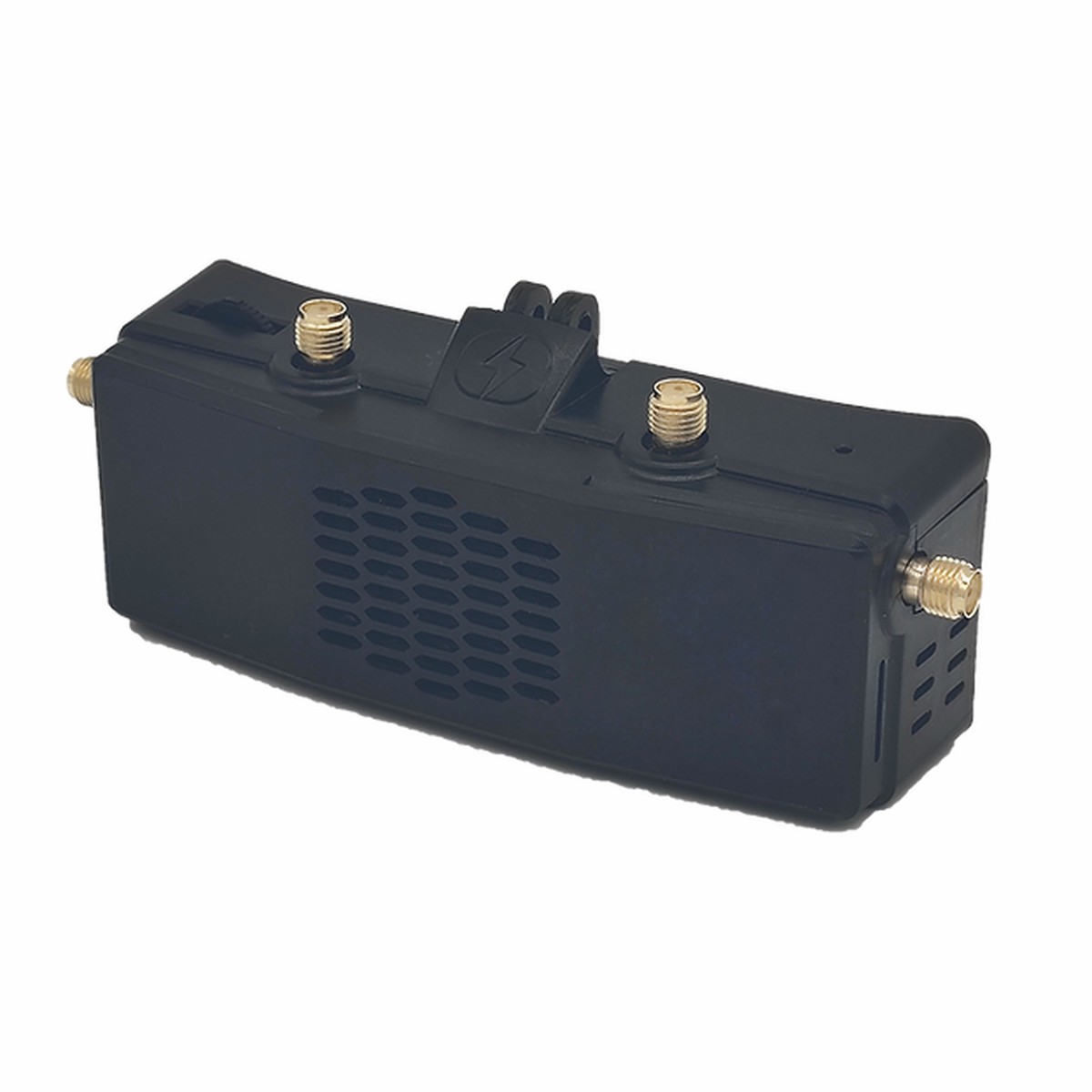

TheHDZero VRXby Divimath is a digital HD 720p 60fps video receiver on 5.8GHz. It works with the HDZero/Shark Byte VTX module to transmit video andmounts to the front of your goggle in the same manner as before using the included fan guard mount This VRX is compatible with any goggle which supports HDMI input.

VIDEO: HDZero VRX Review | Time to jump in?

Features

• 4x External SMA antenna connections to allow you to pick your own antennas for the best performance
• Mounting rails to allow for a custom patch and other antennas to be secured
• Real-Time Clock for DVR recording to show accurate time and date
• ELRS Backpack expansion plug
• Ambient Audio Recording

FOUR SMA JACKS

Four SMA jacks allow you to pick the right antennas for your situation. Racing or flying around the house? All Omni antennas work well. Outdoor applications benefit from the TrueRC slide-on patch antennas which can mount to the front rails or design your own slide-on antenna solution (CAD example file will be provided).

ELRS BACKPACK

ELRS Backpack expansion plug makes it easy to add automatic channel switching and other features from Express LRS.

AMBIENT AUDIO RECORDING

The real-time clock (RTC) automatically timestamps your DVR recordings to make it easier to review footage.

FOUR SMA JACKS

The real-time clock (RTC) automatically timestamps your DVR recordings to make it easier to review footage.

AMBIENT AUDIO RECORDING

The real-time clock (RTC) automatically timestamps your DVR recordings to make it easier to review footage.

Specifications

• Mounting: Remove the Goggles fan cover.
• Resolution Default: 1280*720@60fps
• Size: 105mm x 47mm x 30mm
• Frequency: 5.725-5.850GHz
• Power input: 7V-26V(2S-6S)
• Video Connector: HDMI
• RF Sensitivity: -105dBm
• RF Connector: 4 x SMA
• Model: HDZero VRX
• SKU: HDZ3500
• Power: 12W
• Weight: 85g
