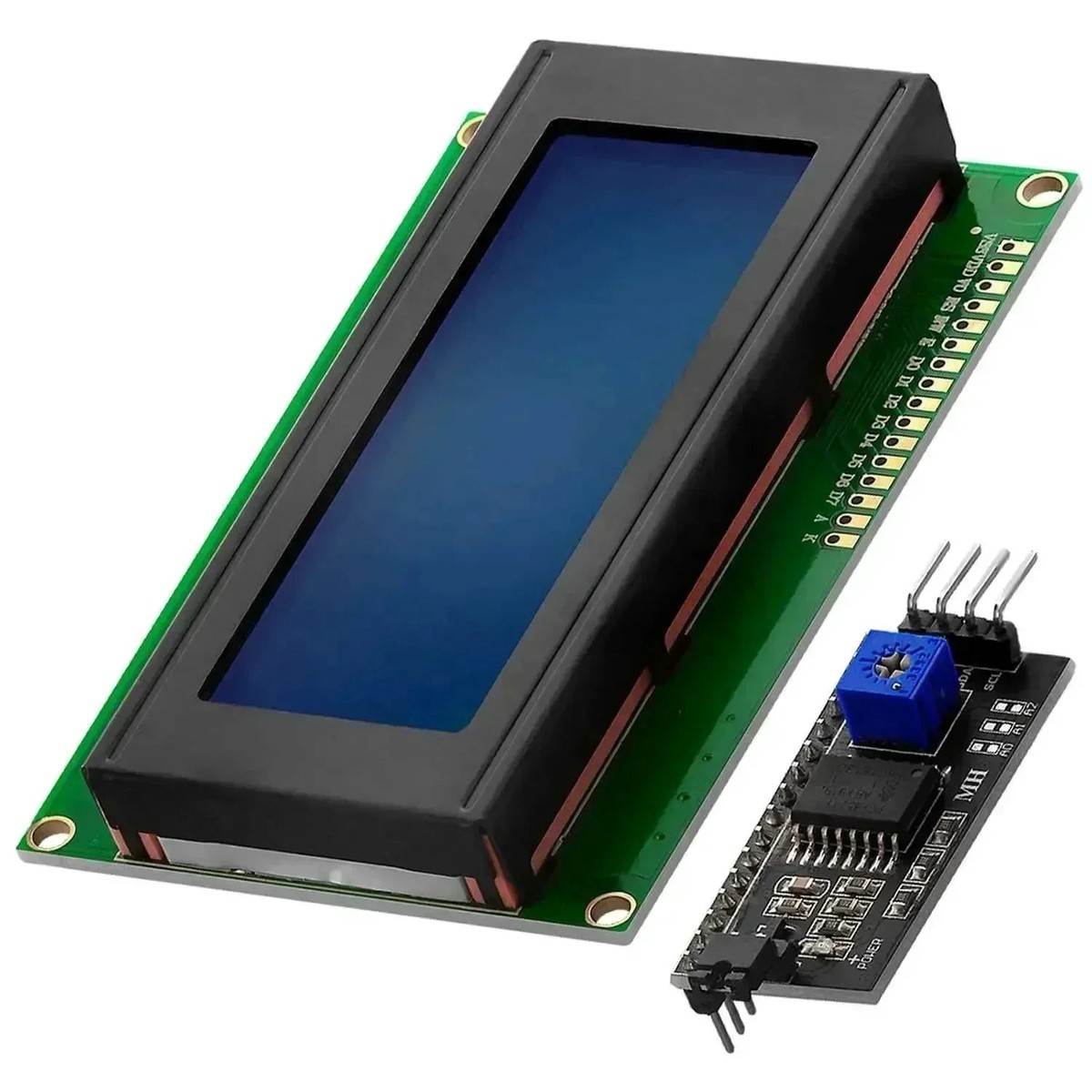

HD44780 2004 LCD Display Bundle 4x20 Characters

Name: HD44780 2004 LCD Display Bundle 4x20 Characters
SKU: US31209698
Availability: InStock

Price

Shopping information

Description

This display is a 2004 4-line, 20-digit alphanumeric LCD with HD44780 display controller and a standard 4/8-bit parallel interface.

Thanks to the 8 selectable I2C addresses, 6 displays can be operated simultaneously.
With the included jumper and potentiometer you can control the contrast of the display and the backlight independently from the code.

Dimensions	98 mm x 60 mm x 14 mm
Resolution	20 characters x 4 lines
LCD type	STN, positive, transflective, blue
Backlight	Blue
Modes	Parallel (8-bit and 4-bit)
I2C adapter / I2C address	0x27; Address can be selected – area 0x20 to 0x27
Operating voltage	5V
Operating temperature	From -20 C to +70 C
