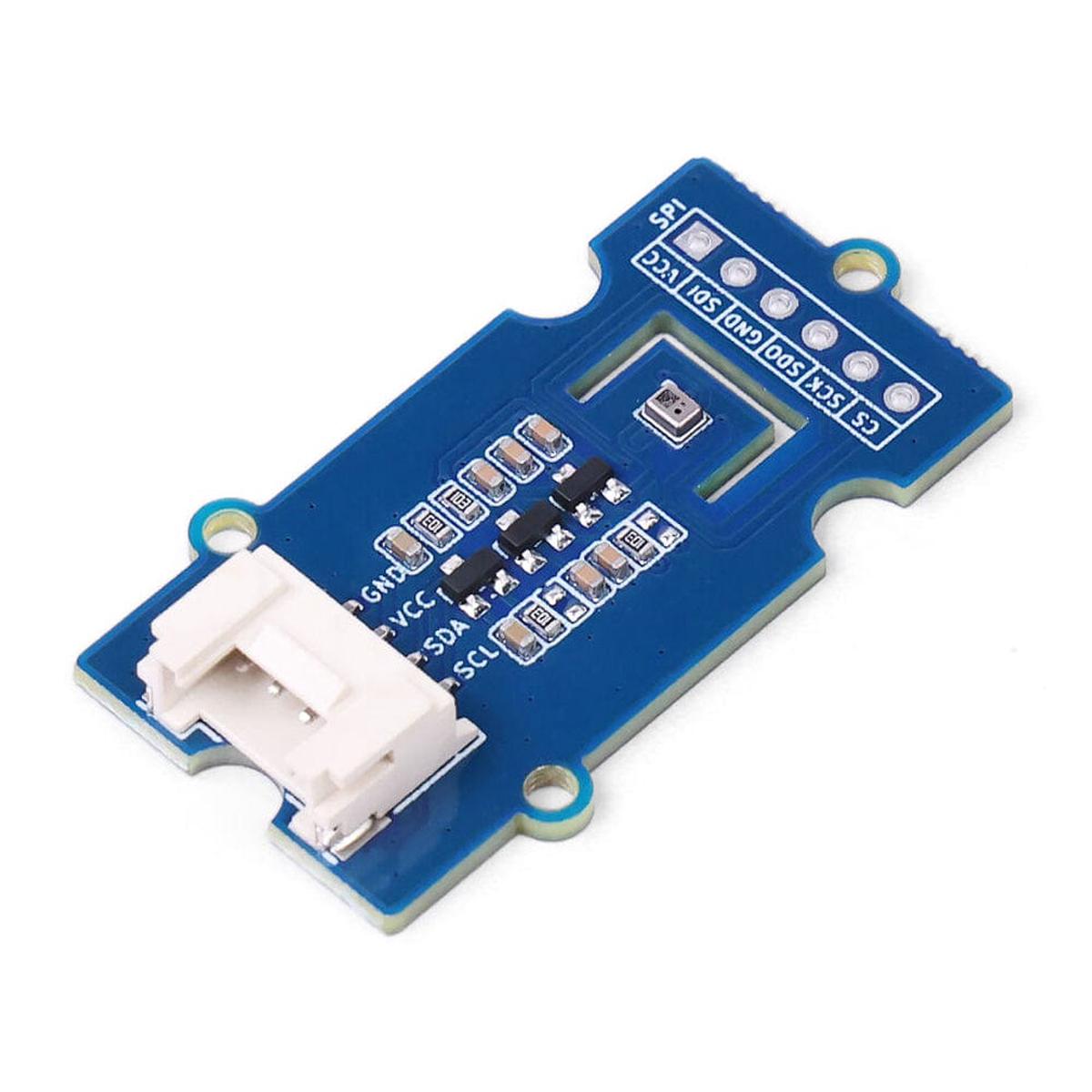

The Grove Temperature and Barometer Sensor (SPA06-003) is a compact environmental sensor designed to provide accurate readings of both air pressure and temperature. It supports both I2C and SPI communication and includes an Arduino-compatible library for easy integration. The sensor operates at 3.3V and connects via the standard 4-pin Grove interface, making it compatible with platforms such as Arduino, Raspberry Pi, and micro:bit.

It can measure barometric pressure in the range of 3001100 hPa with 0.3 hPa accuracy and temperature from -40C to +85C with 1C accuracy. Thanks to its low-power design and support for FIFO mode, the module achieves standby current consumption as low as 0.5 A, ideal for battery-powered or low-power applications.

The modules I2C address defaults to 0x77. To change it to 0x76, disconnect the right two pads and solder the left two instead. For SPI operation, disconnect all three pads if you need to use address 0x76. The board comes pre-soldered and includes a Grove cable.

Note: The sensor is sensitive to environmental interference. Do not touch it directly with your fingers.

Features

• Measures temperature and barometric pressure
• Supports I2C and SPI communication
• Compatible with Arduino, Raspberry Pi, micro:bit and more
• Pressure range: 3001100 hPa (0.3 hPa accuracy)
• Temperature range: -40C to +85C (1C accuracy)
• Low power consumption: standby current as low as 0.5 A using FIFO mode
• 3.3V operating voltage
• Selectable I2C address: 0x77 (default) or 0x76 via jumper pads
• Compact module: 40mm x 20mm x 6.5mm
• Includes Grove 4-pin connector and cable

Specifications

Resources

• Product Wiki
• SPA06-003 Datasheet
• Schematic
• Part number: Seeed 110992164

Package Contents

• 1x Grove – Temperature and Barometer Sensor (SPA06-003)
• 1x Grove cable
