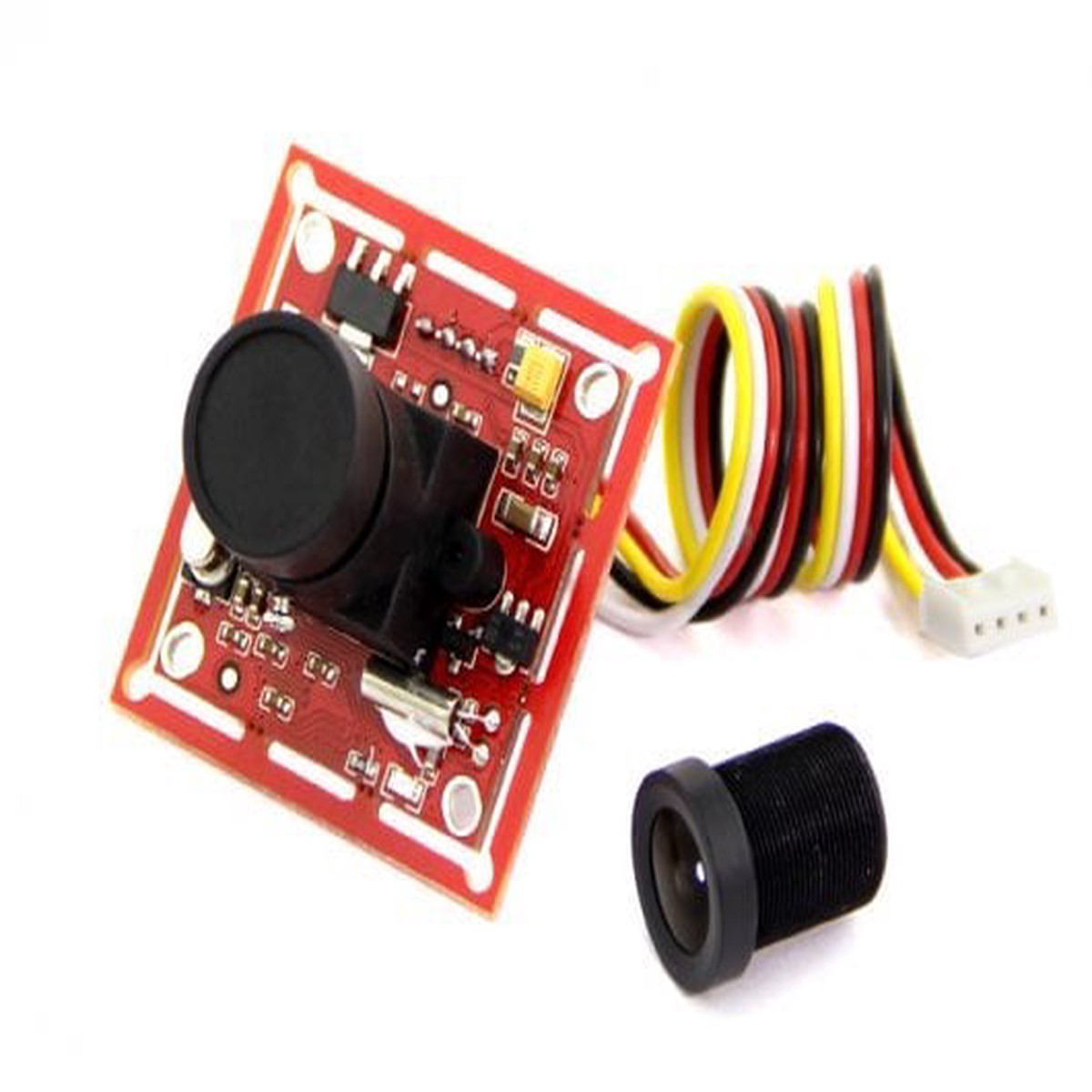

This is the Grove – Serial Camera Kit. This is a great little camera kit that includes one control board and two interchangeable lenses; one standard lens and one wide-angle lens. The standard lens is recommended for the common photo, whereas the wide-angle lens is specifically designed for monitoring projects. This is an ideal camera to choose for Arduino-centered image recognition based projects as the 30W pixel is extremely suited to Arduino. In this way, real-time image recognition is possible.

Specifications

• Input Voltage: 5V
• Pixel: 300,000
• Resolution: 640*480, 320*240, 160*120
• Uart Baud Rate: 9600~115200
• Communication: RS485 and RS232
• Photo JPEG compression, high, medium and low grades Optional
• AGC
• Auto Exposure Event Control
• Automatic White Balance Control
• Focus adjustable

For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before using this product. Documents Please visit this wiki page for more info about this product. It is appreciated if you can help us improve the documents by adding more demo code or tutorials. For technical support, please post your questions to this forum .

• Github – Demo code
