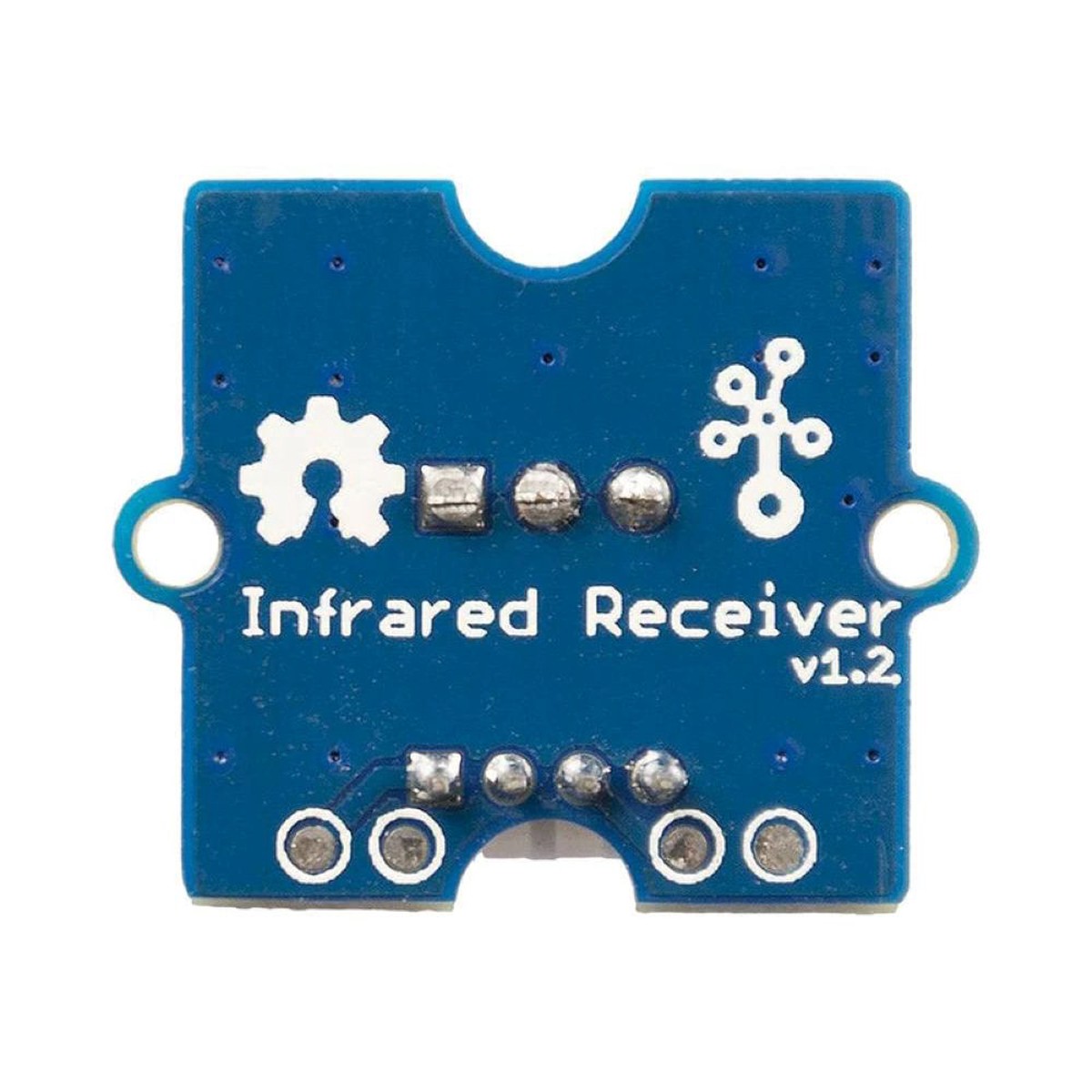

The Grove Infrared Receiver is used to receive infrared signals and also used for remote control detection. There is a IR detector on the Infrared Receiver which is used to get the infrared light emitted by the Infrared Emitter. The IR detector have a demodulator inside that looks for modulated IR at 38 KHz. The Infrared Receiver can receive signals well within 10 meters. If more than 10 meters , the receiver may not get the signals. We often use the two Groves-the Infrared Receiver and the Grove – Infrared Emitter to work together.

Features

• Grove compatible interface
• Supports 3.3V and 5V supply voltages.

Application Ideas

• Remote Control of robots, relays or other things Mechanic Dimensions 20mm by 24mm

Resources

• Wiki Page for arduino demo code and more information
• Eagle files: File:Twig – Infrared Receiver v0.9b.zip
• Schematic (PDF): File:Twig – Infrared Receiver v0.9.pdf
• IRremote arduino library
• IRremote arduino library documentation
• TSOP382 Datasheet
