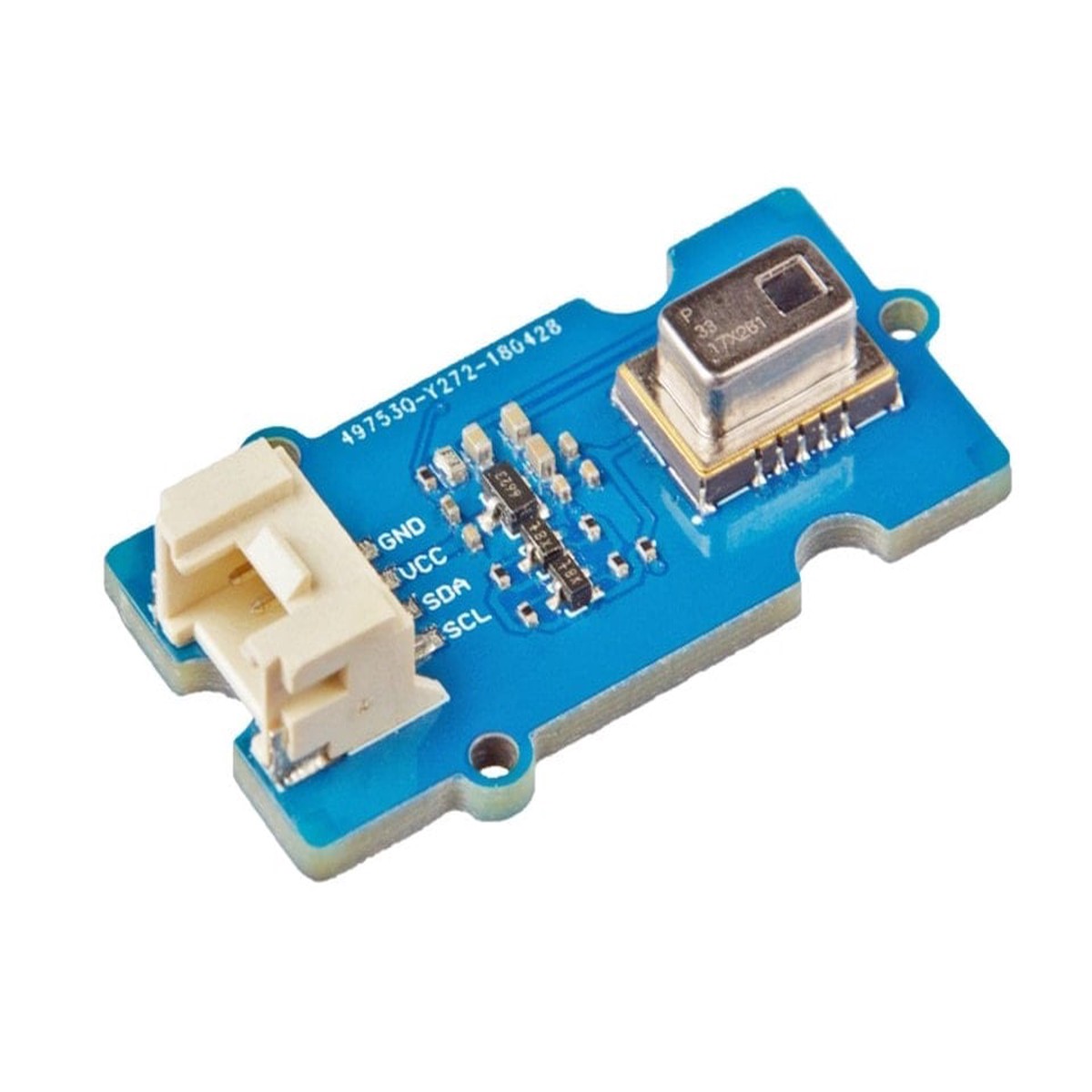

Grove – AMG8833 8×8 Infrared Thermal Temperature Sensor Array is a high precision infrared array sensor based on advanced MEMS technology.

This sensor can measure temperatures ranging from 0C to 80C (32F to 176F) and provide the accuracy of +- 2.5C (4.5F). It can support temperature detection of the two-dimensional area of 8 8 (64 pixels) and a maximum 7 meters detection distance.

We provide both Arduino and Raspberry Pi demo for this sensor. It will be a perfect module to make your own thermal camera

Features

• Temperature detection of the two-dimensional area: 8 8 (64 pixels)
• Temperature range of measuring object: 0 C to 80 C +32 F to +176 F
• I2C output (capability of temperature value output)
• High precision
• Long detection distance

Resources

• Grove Infrared Temperature Sensor Array(AMG8833)Eaglefile
• Seeed AMG8833 Arduino library
• Seeed AMG8833 Python library
• AMG8833 datasheet
• XC6206 datasheet
