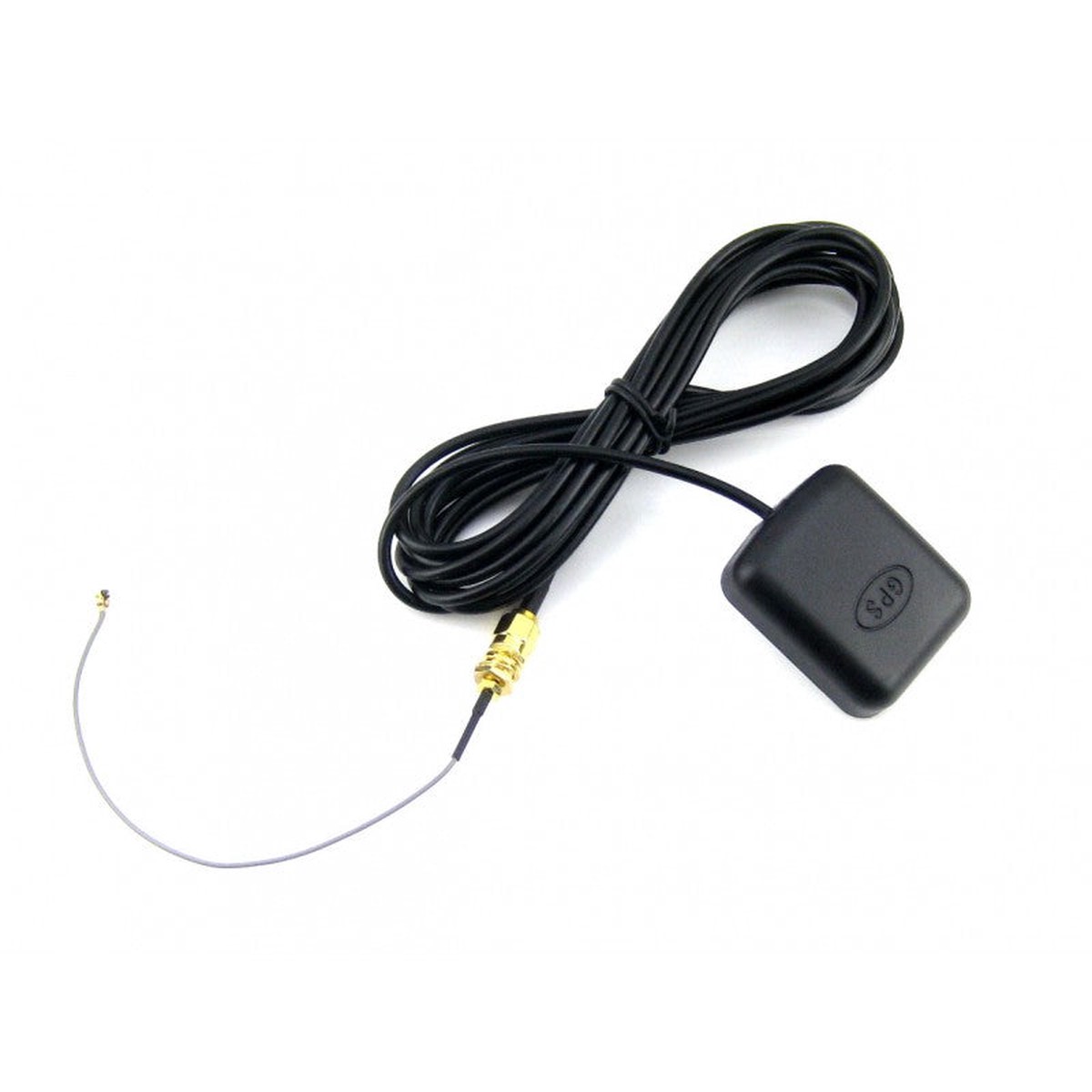

GPS External Antenna, Ceramics with Amplifier

GPS External Antenna, Ceramics with Amplifier

Electronic Components

GPS External Antenna, Ceramics with Amplifier

Price
Original price was: $5.00.Current price is: $4.00.

SKU:

US31254030

Category:

Shopping information

GPS External Antenna, Ceramics With Amplifier

Specifications

CERAMICS CENTER FREQUENCY 15751MHz
BAND WIDTH CF8MHz
POLARIZATION RHCP
GAIN 5dBic (Zenith)
V.S.W.R 1.5
RESISTANCE 50
AXIAL RATIO 3dB (max)
DIMENSION 25*25*4mm
AMPLIFIER GAIN 282dB
NOISE FACTOR 1.0
FILTER INSERTION LOSS 3dB
EX-BAND ATTENUATION 35dB@CF50MHz/50dB@CF100MHz
POWER SUPPLY VOLTAGE 2.7-5V DC
CURRENT CONSUMPTION 16mA
V.S.W.R 2.0
MECHANICAL TYPE GPS active antenna
CABLE LENGTH about 3m
CABLE MATERIAL RG174 96-weave copper with tin coating
CONNECTOR SMA, IPX (via adapter wire)
RADOME MATERIAL PC
MOUNTING METHOD Magnet/Adhesive
ENVIRONMENTAL OPERATING TEMPERATURE -40~+85
RELATIVE HUMIDITY Up to 95%
WATERPROOF RATING IP65~IP67
VIBRATION 10 to 55Hz with 1.5mm amplitude 2hours
ENVIRONMENTALLY FRIENDLY ROHS compliant

Applications

  • GPS antenna
  • Navigator antenna
  • Car DVD antenna

Package Includes:

  1. 1x GPS External Antenna
  2. 1xIPX to SMA adapter wire
