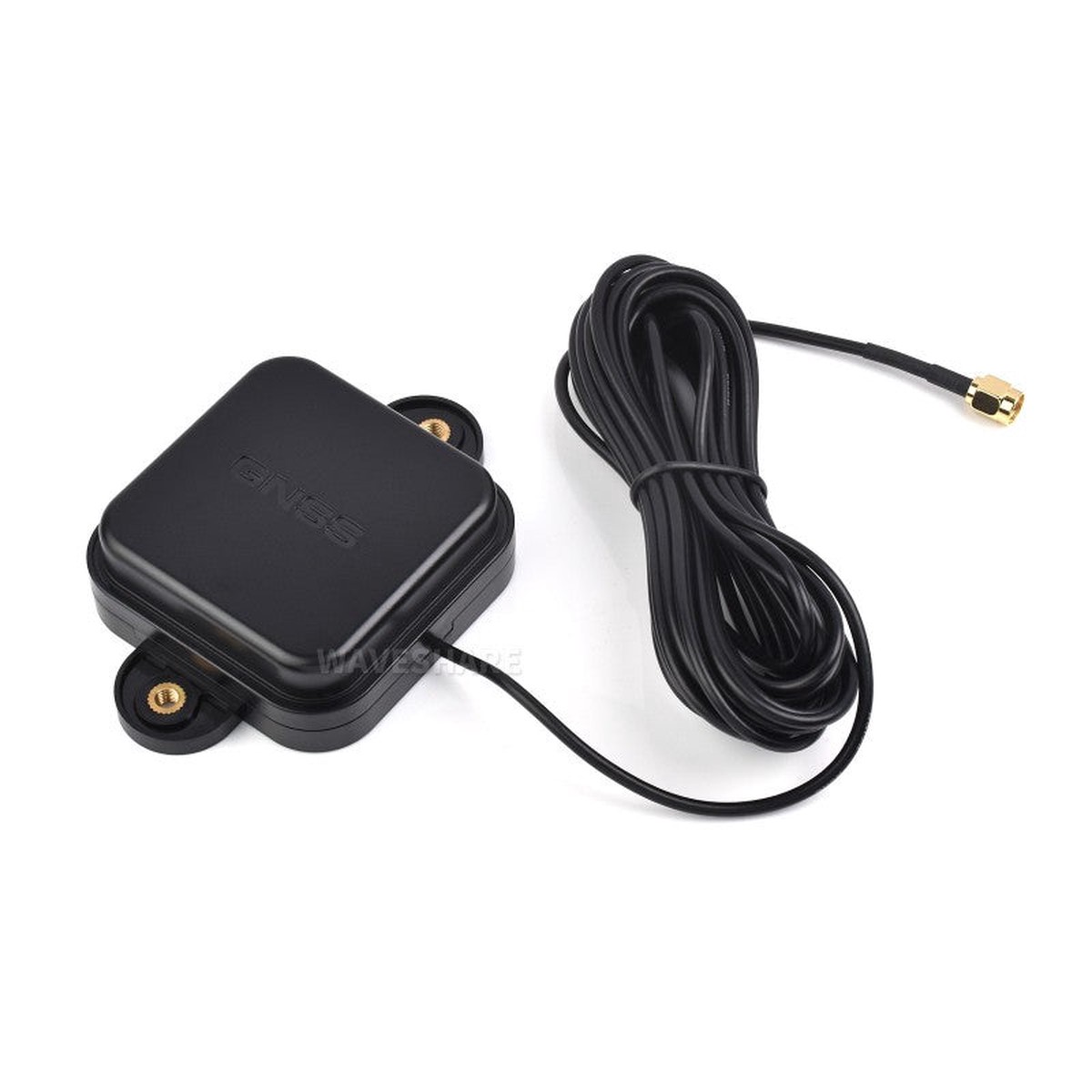

GNSS L1+L2+L5 Multi-GNSS & Multi-Frequency Active Antenna
Price
Original price was: $79.00.$39.50Current price is: $39.50.
Shopping information
GNSS L1+L2+L5Multi-GNSS & Multi-Frequency Active Antenna
Sunproof|High Temperature Tolerance|IP67 Waterproof
Supports Multiple GNSS Such As BD, GPS, GLONASS, Galileo, Etc.
Specifications
| FREQUENCY RANGE | BDS B1/B2/B3 GPS L1/L2/L5 GLONASS G1/G2/G3 GALILEO E1/E2/E5a/E5b/E6 |
PHASE CENTER ERROR | 2mm |
|---|---|---|---|
| LNA GAIN | 402dB | POLARISATION | Right-Hand Circular Polarization |
| GAIN | 4dBi | CONNECTOR | SMA-J |
| VSWR | 2.0 | ANTENNA SIZE | 1087627mm |
| OUTPUT IMPEDANCE | 50 | CABLE | RG174 |
| WORKING CURRENT | 45mA | CABLE LENGTH | 5m |
| WORKING VOLTAGE | DC 3.0~18.0V | WORKING TEMPERATURE | -40~70C |
| AXIAL RATIO | 3.0dB | STORAGE TEMPERATURE | -55~85C |
| NOISE FIGURE | 1.8dB | MOUNTING | Magnetic base |
Application Example
* for reference only, the Raspberry Pi board and GPS HAT are NOT included
Application Scenarios
Product Show
Outline Dimensions
Note: supports mass customization for cable length and antenna connector
