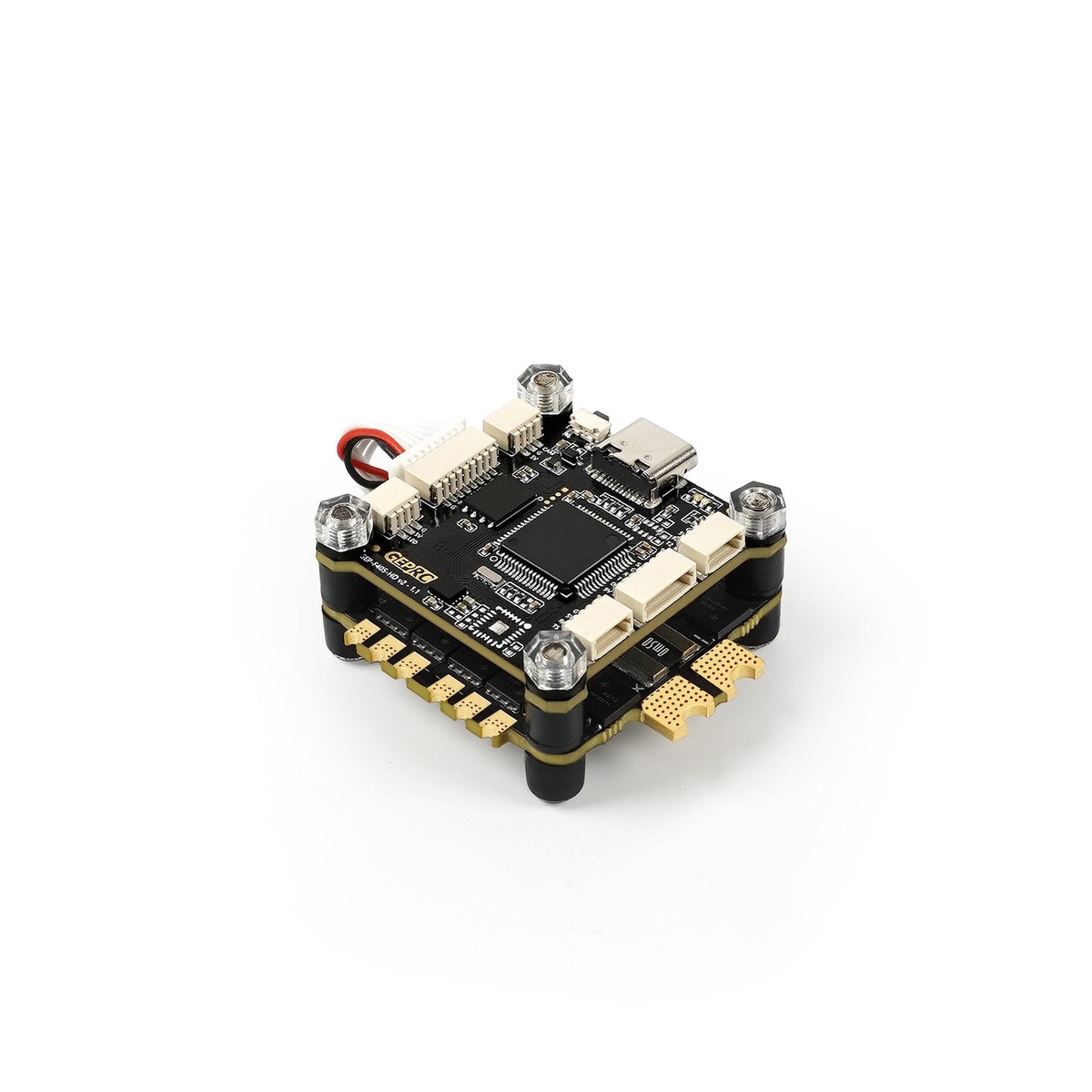

Elevate your drone game with the GEPRC TAKER F405 BLS 50A STACK, a state-of-the-art system that marries the pinnacle of flight control technology with seamless DJI Air Unit integration. Crafted for the discerning pilot, this stack boasts a formidable STM32F405 chip and the precision of an ICM42688-P gyroscope, ensuring your flights are nothing short of extraordinary.

Key Highlights:

• Advanced Control: Powered by the renowned STM32F405 chip, ensuring rapid response and unparalleled flight control.
• Precision Gyroscope: The latest ICM42688-P gyroscope at your service, offering unmatched stability and a silky-smooth flying experience.
• Effortless Integration: Direct plug-in capability with the DJI Air Unit for a hassle-free setup, leaving soldering woes in the dust.
• Enhanced Durability: Upgraded with a type-C USB connector, significantly extending the life of your connections.
• Robust Power: Equipped with a dual independent BEC of 9V 2.5A + 5V 3A, providing a stable power supply to all your external devices.
• Smooth Power System: The GEP-BLS50A-4IN1 ESC not only supports up to 55A burst current but also ensures that every maneuver feels fluid and responsive.

Specifications at a Glance:

FC Specs

• GEP-F405-HD v2 Flight Controller
• MCU: STM32F405
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plugging into DJI Air Unit
• Black Box: 16M onboard
• USB Connector: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V,9V dual BEC
• Firmware Target: GEPRCF405
• Size: 36.836.8mm, hole 30.530.5mm4mm hole becomes 3mm after using a silicone shock-absorbing circle.
• Input Voltage: 3-6S LiPo
• UART: 6
• Power Filter: Integrated LC filter
• Weight: 7.7g

ESC Specs

• GEP-BLS50A-4IN1 ESC
• Input Voltage: 3-6S Lipo
• Galvanometer: Support
• Continuous Current: 50A
• Burst Current: 55A5s
• Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600
• Size: 42.939.7mm, hole30.530.5mm
• Weight:13.7g
• Target: G_H_30

Package Includes:

• Flight Controller
• ESC
• Accessories

The GEPRC TAKER F405 BLS 50A STACK is more than just a flight controller; it’s your ticket to transcending the ordinary, offering a fusion of power, precision, and ease that caters to the needs of the most demanding FPV pilots. Get ready to experience flight on a whole new level.
