If you are looking for a development board to help with any network communication needs, look no further! It comes with the RP2040 micro-controller chip on board for high performance and low dynamic power consumption, to get a quick and stable connection.

With GPIO pins on board to easily connect to a Raspberry Pi Pico, multiple communication modes (TCP Server / TCP Client / UDP Server / UDP), small size and highly integrated packaging provide easy integration into various applications, a wide array of support for C/C++, MicroPython, Arduino, and comprehensive SDK, dev resources and tutorials to easily help you get started on your next project!

Note: Ethernet and USB-C cables are not included

Features

• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 4MB of onboard Flash memory
• Onboard CH9120 with integrated TCP/IP protocol stack
• 14x multi-function GPIO pins, compatible with some Pico HATs
• Castellated module allows soldering direct to carrier boards
• Drag-and-drop programming using mass storage over USB
• Temperature sensor
• 8x Programmable I/O (PIO) state machines for custom peripheral support

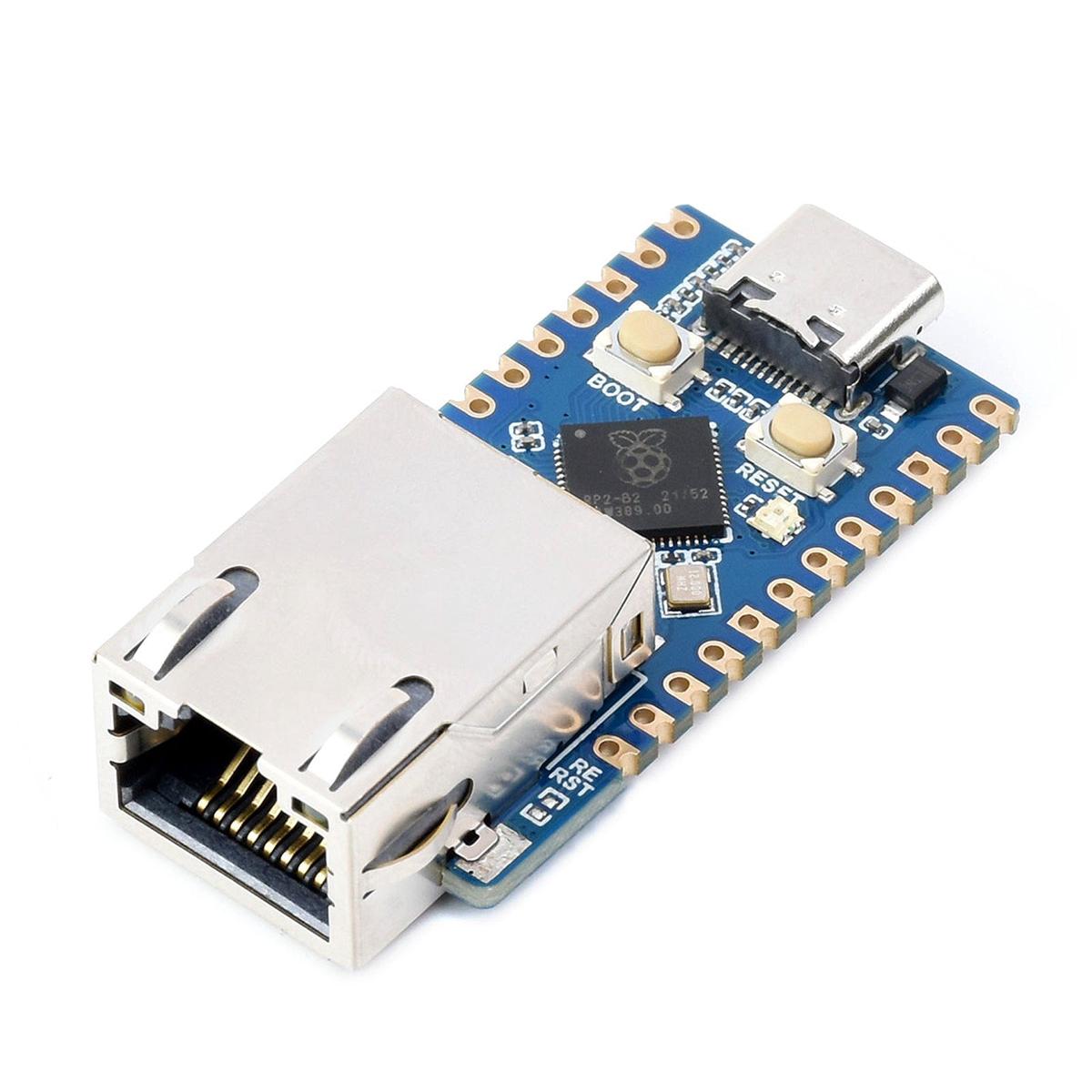

What’s on Board

1. USB Type-C connector
   Supports USB1.1 hosts and slave devices
2. BOOT button
   Press it when resetting to enter download mode
3. RESET button
4. RP2040
   Dual-core processor, up to 133MHz operating frequency
5. RJ45 Ethernet port
6. RT9013-33GB
   500mA Low Dropout, Low Noise, Ultra-Fast LDO
7. W25Q32JVSSIQ
   4MB NOR-Flash
8. CH9120
   Ethernet serial port transmission IC

Resources

• Product Wiki
• RP2040-ETH Schematic
• RP2040-ETH-STEP File (3D model)

Pinout

Package Contents

• 1x RP2040-ETH Mini Development Board
