ESP32-S3-DevKitM-1U-N8 Development Board

ESP32-S3-DevKitM-1U-N8 Development Board

Electronic Components

ESP32-S3-DevKitM-1U-N8 Development Board

Price
Original price was: $16.00.Current price is: $12.80.

SKU:

HXH392976011

Category:

Shopping information

ESP32-S3-DevKitM-1

This user guide will help you get started with ESP32-S3-DevKitM-1 and will also provide more in-depth information.

The ESP32-S3-DevKitM-1 is an entry-level development board equipped with either ESP32-S3-MINI-1 or ESP32-S3-MINI-1U, a module named for its small size. This board integrates complete Wi-Fi and Bluetooth Low Energy functions.

Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S3-DevKitM-1 on a breadboard.

ESP32-S3-DevKitM-1 with ESP32-S3-MINI-1 Module

The document consists of the following major sections:

  • Getting Started: Overview of the board and hardware/software setup instructions to get started.

  • Hardware Reference: More detailed information about the boards hardware.

  • Related Documents: Links to related documentation.

Getting Started

This section provides a brief introduction of ESP32-S3-DevKitM-1, instructions on how to do the initial hardware setup and how to flash firmware onto it.

Description of Components

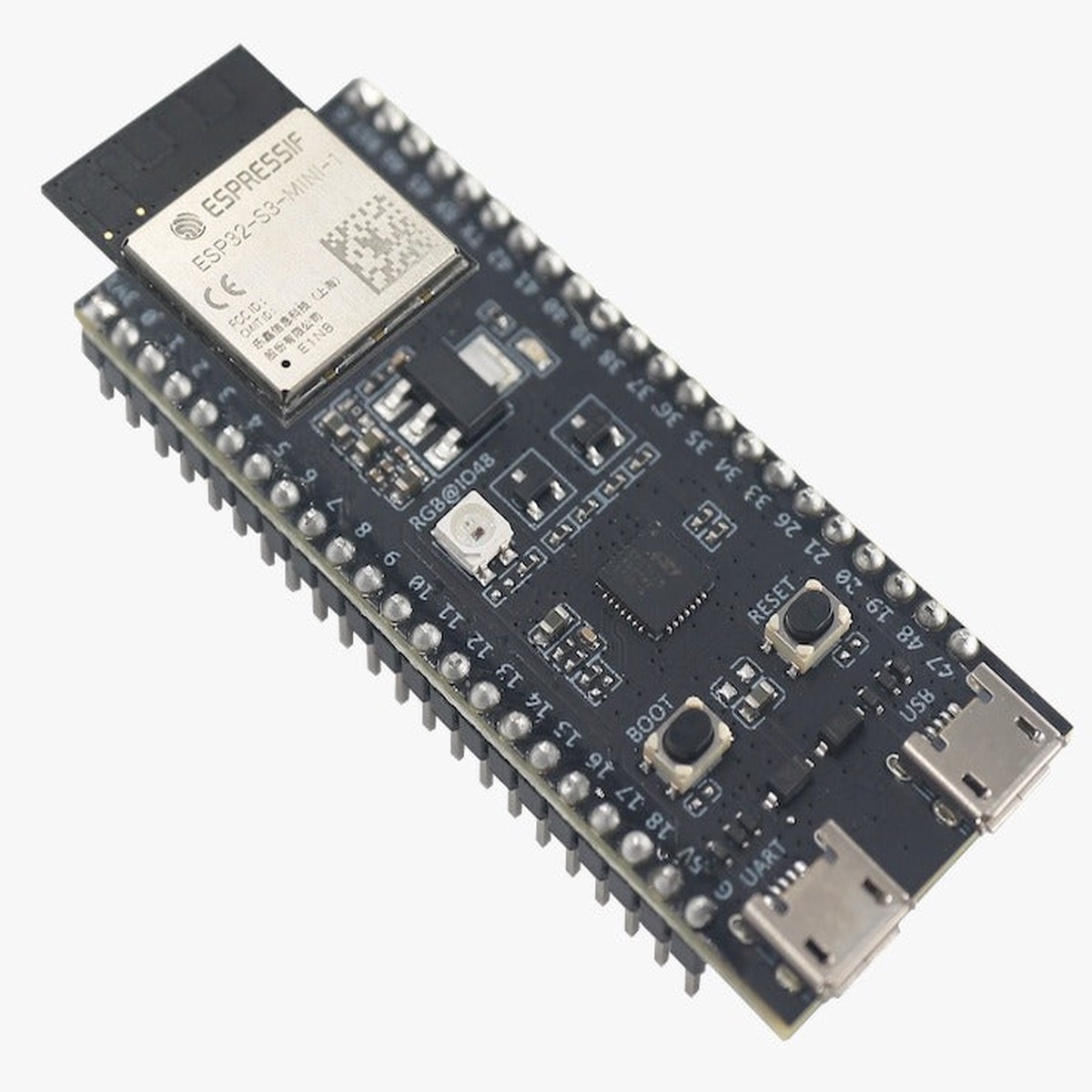

ESP32-S3-DevKitM-1 – front

The key components of the board are described in a counter-clockwise direction, starting from the ESP32-S3-MINI-1/1U module.

Key Component

Description

ESP32-S3-MINI-1/1U

ESP32-S3-MINI-1 and ESP32-S3-MINI-1U are two general-purpose Wi-Fi and Bluetooth Low Energy combo modules that have a rich set of peripherals. ESP32-S3-MINI-1 comes with a PCB antenna. ESP32-S3-MINI-1U comes with an external antenna connector. At the core of the modules is ESP32-S3FN8, a chip equipped with an 8 MB flash. Since flash is packaged in the chip, rather than integrated into the module, ESP32-S3-MINI-1/1U has a smaller package size.

5 V to 3.3 V LDO

Power regulator that converts a 5 V supply into a 3.3 V output.

Pin Headers

All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board for easy interfacing and programming. For details, please seeHeader Block.

USB-to-UART Port

A Micro-USB port used for power supply to the board, for flashing applications to the chip, as well as for communication with the chip via the on-board USB-to-UART bridge.

Boot Button

Download button. Holding downBootand then pressingResetinitiates Firmware Download mode for downloading firmware through the serial port.

Reset Button

Press this button to restart ESP32-S3.

ESP32-S3 USB Port

ESP32-S3 full-speed USB OTG interface, compliant with the USB 1.1 specification. The interface is used for power supply to the board, for flashing applications to the chip, for communication with the chip using USB 1.1 protocols, as well as for JTAG debugging.

USB-to-UART Bridge

Single USB-to-UART bridge chip provides transfer rates up to 3 Mbps.

RGB LED

Addressable RGB LED, driven by GPIO48.

3.3 V Power On LED

Turns on when the USB power is connected to the board.

Start Application Development

Before powering up your board, please make sure that it is in good condition with no obvious signs of damage.

Required Hardware

  • ESP32-S3-DevKitM-1

  • USB 2.0 cable (Standard-A to Micro-B)

  • Computer running Windows, Linux, or macOS

Note

Be sure to use an appropriate USB cable. Some cables are for charging only and do not provide the needed data lines nor work for programming the boards.

Hardware Setup

Connect the board with the computer usingUSB-to-UART PortorESP32-S3 USB Port. In subsequent steps,USB-to-UART Portwill be used by default.

Software Setup

Please proceed toGet Started, where SectionInstallationwill quickly help you set up the development environment and then flash an application example onto your board.

Contents and Packaging

Retail Orders

If you order a few samples, each board comes in an individual package in either antistatic bag or any packaging depending on your retailer.

For retail orders, please go tohttps://www.espressif.com/en/contact-us/get-samples.

Wholesale Orders

If you order in bulk, the boards come in large cardboard boxes.

For wholesale orders, please go tohttps://www.espressif.com/en/contact-us/sales-questions.

Hardware Reference

Block Diagram

The block diagram below shows the components of ESP32-S3-DevKitM-1 and their interconnections.

ESP32-S3-DevKitM-1 (click to enlarge)

Power Supply Options

There are three mutually exclusive ways to provide power to the board:

  • USB-to-UART Port and ESP32-S3 USB Port (either one or both), default power supply (recommended)

  • 5V and G (GND) pins

  • 3V3 and G (GND) pins

Header Block

The two tables below provide theNameandFunctionof the pins on both sides of the board (J1 and J3). The pin names are shown inESP32-S3-DevKitM-1 – front. The numbering is the same as in theBoard Schematic(PDF).

J1

No.

Name

Type1

Function

1

3V3

P

3.3 V power supply

2

0

I/O/T

RTC_GPIO0, GPIO0

3

1

I/O/T

RTC_GPIO1, GPIO1, TOUCH1, ADC1_CH0

4

2

I/O/T

RTC_GPIO2, GPIO2, TOUCH2, ADC1_CH1

5

3

I/O/T

RTC_GPIO3, GPIO3, TOUCH3, ADC1_CH2

6

4

I/O/T

RTC_GPIO4, GPIO4, TOUCH4, ADC1_CH3

7

5

I/O/T

RTC_GPIO5, GPIO5, TOUCH5, ADC1_CH4

8

6

I/O/T

RTC_GPIO6, GPIO6, TOUCH6, ADC1_CH5

9

7

I/O/T

RTC_GPIO7, GPIO7, TOUCH7, ADC1_CH6

10

8

I/O/T

RTC_GPIO8, GPIO8, TOUCH8, ADC1_CH7, SUBSPICS1

11

9

I/O/T

RTC_GPIO9, GPIO9, TOUCH9, ADC1_CH8, FSPIHD, SUBSPIHD

12

10

I/O/T

RTC_GPIO10, GPIO10, TOUCH10, ADC1_CH9, FSPICS0, FSPIIO4, SUBSPICS0

13

11

I/O/T

RTC_GPIO11, GPIO11, TOUCH11, ADC2_CH0, FSPID, FSPIIO5, SUBSPID

14

12

I/O/T

RTC_GPIO12, GPIO12, TOUCH12, ADC2_CH1, FSPICLK, FSPIIO6, SUBSPICLK

15

13

I/O/T

RTC_GPIO13, GPIO13, TOUCH13, ADC2_CH2, FSPIQ, FSPIIO7, SUBSPIQ

16

14

I/O/T

RTC_GPIO14, GPIO14, TOUCH14, ADC2_CH3, FSPIWP, FSPIDQS, SUBSPIWP

17

15

I/O/T

RTC_GPIO15, GPIO15, U0RTS, ADC2_CH4, XTAL_32K_P

18

16

I/O/T

RTC_GPIO16, GPIO16, U0CTS, ADC2_CH5, XTAL_32K_N

19

17

I/O/T

RTC_GPIO17, GPIO17, U1TXD, ADC2_CH6

20

18

I/O/T

RTC_GPIO18, GPIO18, U1RXD, ADC2_CH7, CLK_OUT3

21

5V

P

5 V power supply

22

G

G

Ground

J3

No.

Name

Type

Function

1

G

G

Ground

2

RST

I

EN

3

46

I/O/T

GPIO46

4

45

I/O/T

GPIO45

5

RX

I/O/T

U0RXD, GPIO44, CLK_OUT2

6

TX

I/O/T

U0TXD, GPIO43, CLK_OUT1

7

42

I/O/T

MTMS, GPIO42

8

41

I/O/T

MTDI, GPIO41, CLK_OUT1

9

40

I/O/T

MTDO, GPIO40, CLK_OUT2

10

39

I/O/T

MTCK, GPIO39, CLK_OUT3, SUBSPICS1

11

38

I/O/T

GPIO38, FSPIWP, SUBSPIWP

12

37

I/O/T

SPIDQS, GPIO37, FSPIQ, SUBSPIQ

13

36

I/O/T

SPIIO7, GPIO36, FSPICLK, SUBSPICLK

14

35

I/O/T

SPIIO6, GPIO35, FSPID, SUBSPID

15

34

I/O/T

SPIIO5, GPIO34, FSPICS0, SUBSPICS0

16

33

I/O/T

SPIIO4, GPIO33, FSPIHD, SUBSPIHD

17

26

I/O/T

SPICS1, GPIO26

18

21

I/O/T

RTC_GPIO21, GPIO21

19

20

I/O/T

RTC_GPIO20, GPIO20, U1CTS, ADC2_CH9, CLK_OUT1, USB_D+

20

19

I/O/T

RTC_GPIO19, GPIO19, U1RTS, ADC2_CH8, CLK_OUT2, USB_D-

21

48

I/O/T

SPICLK_N, GPIO48, SUBSPICLK_N_DIFF, RGB LED

22

47

I/O/T

SPICLK_P, GPIO47, SUBSPICLK_P_DIFF

1

P: Power supply; I: Input; O: Output; T: High impedance.

For description of function names, please refer toESP32-S3 Datasheet(PDF).

Pin Layout

ESP32-S3-DevKitM-1 Pin Layout (click to enlarge)
