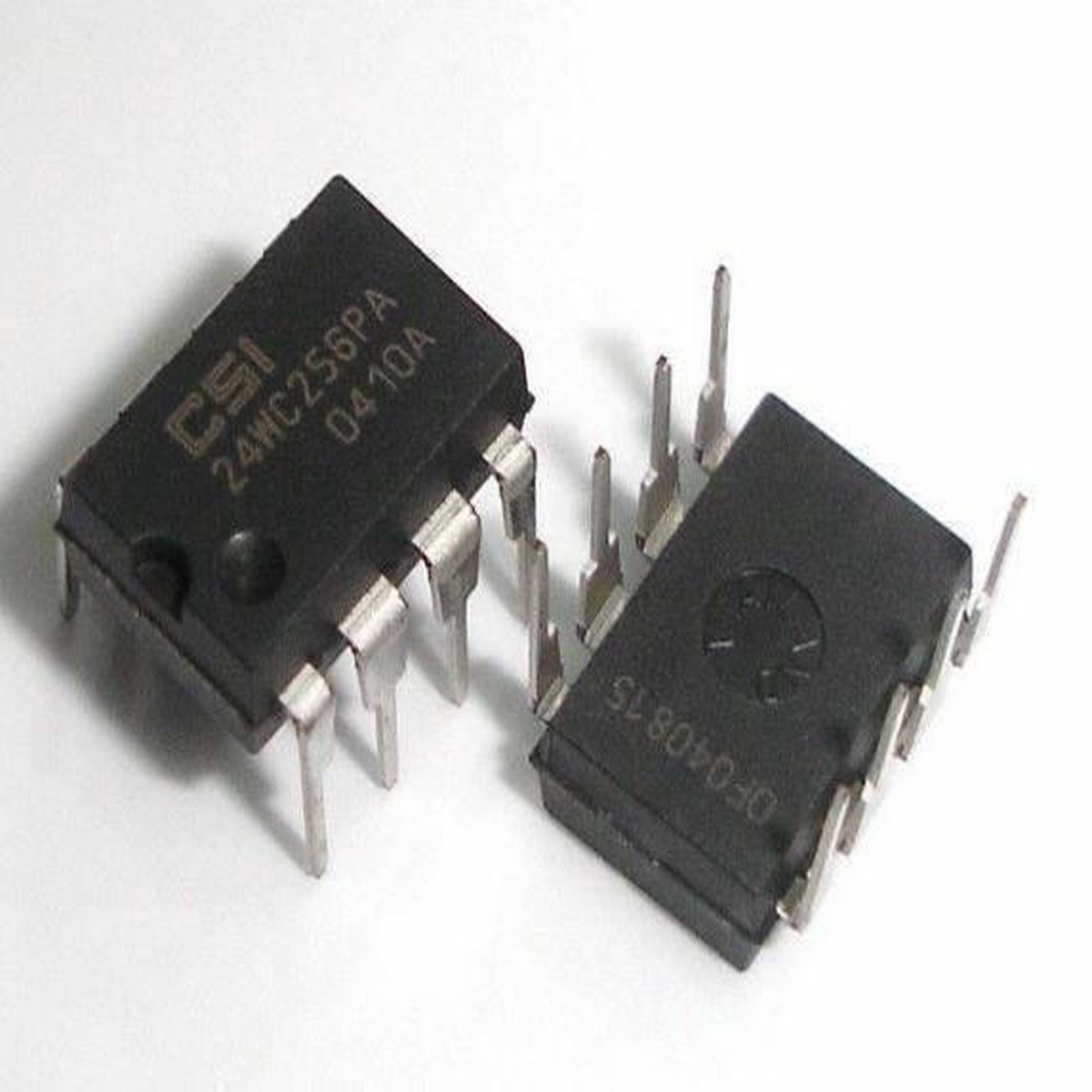

EEPROM 24c256is a 256K-bit Serial CMOS EEPROM.EEPROM 24c256isinternally organized as 32,768 words of 8 bits each. Catalysts advanced CMOS technology substantially reduces device power requirements. The 24WC256features a 64-byte page write buffer. The device operates via the I2 C bus serial interface and is available in 8- pin DIP or 8-pin SOIC packages.EEPROM 24c256 supports the I2C Bus data transmission protocol. This Inter-Integrated Circuit Bus protocol ofEEPROM 24c256 defines any device that sends data to the bus to be a transmitter and any device receiving data to be a receiver. The transfer is controlled by the Master device which generates the serial clock and all START and STOP conditions for bus access. TheEEPROM 24c256 operates as a Slave device. Both the Master device and Slave device can operate as either transmitter or receiver, but the Master device controls which mode is activated.

Link For DataSheet EEPROM 24c256:

https://www.alldatasheet.com/datasheet-pdf/pdf/57368/CATALYST/CAT24WC256J1TE13.html

EEPROM 24c256Features:

1. 1MHz I2 C bus compatible
2. 1.8 to 6 volt operation
3. Low power CMOS technology
4. 64-byte page write buffer
5. Self-timed write cycle with auto-clear
6. 100,000 program/erase cycles
7. 100 year data retention
8. 8-pin DIP or 8-pin SOIC

Package Includes:

• 1 xEEPROM 24c256 IC
