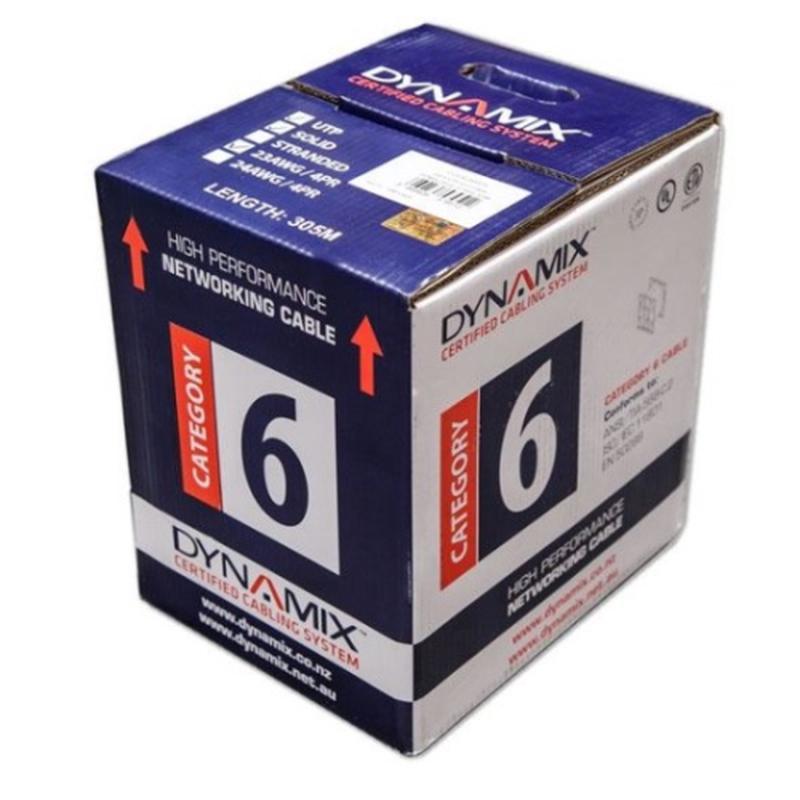

Dynamix 305m Green Cat6 UTP Stranded Cable Roll – Supplied in Pull Box

The Dynamix 305m Green Cat6 UTP Stranded Cable Roll cable manufactured by Dynamix – New Zealand’s leading distributor of cables & cabling solutions since 1989.

Specifications:

General Specifications:
Cable Length: 305m
Exterior Colour: Green
Cable Type: Cat6
Connections: Unterminated

Conductor:
Material: Bare Copper
Size: 24 AVVG

Insulation :
Material: HDPE
Thickness: Normal Avg.: 0.221 mm
Diameter: Normal : 1.03 mm
Colours: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
Elongation: Min. 300%
Tensile Strength: Min. 1.683 Kg/mm

Sheath:
Material: PVC
Thickness: Average: 0.50 mm
Diameter 6.4 0.3 mm
Elongation: Min. 100%
Tensile Strength: Min. 1.407 Kg/mm
Aging at 100C for 168Hrs: Min. elongation retention: 50%, Min. tensile strength retention: 75%
