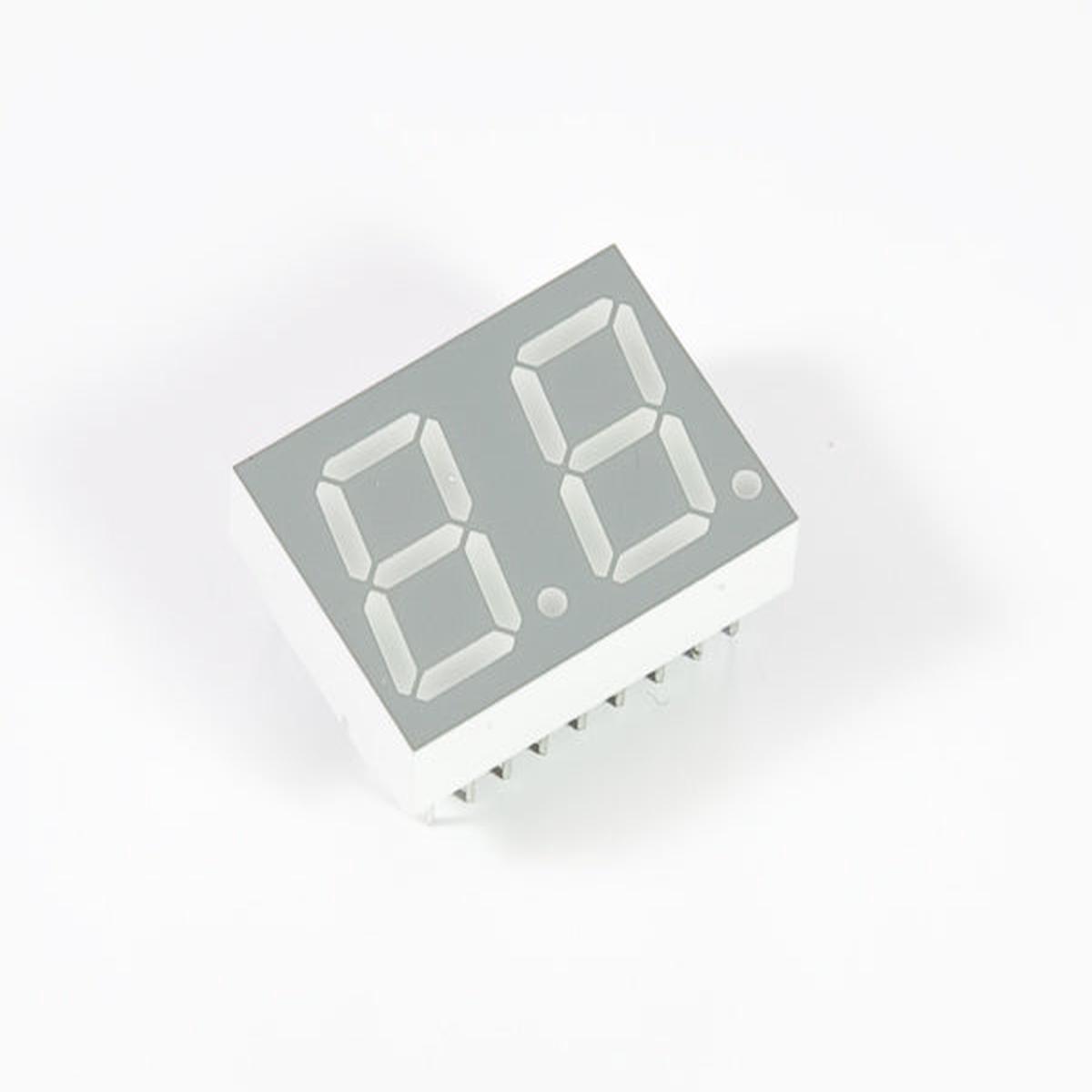

A dual 7-segment green LED display, 0.56″ height. Common Anode.

Features

• Type HDSP-521G
• LED DISPLAY, DUAL, 0.56″, GREEN
• Operating Temperature Range:-35C to +85C
• External Depth:8mm
• External Length / Height:18.6mm
• External Width:25.15mm
• Background Colour:Grey
• Character Size:14.2mm
• Character Type:8.
• Common Connection:Anode
• Current If Luminous Intensity:20mA
• Forward Current:20mA
• LED Colour:Green
• Max Current If:20mA
• Max PIV:5V
• Max Voltage Vf:2.1V
• Min Luminous Intensity per Segment, @ If:1.01mcd
• No. of Characters:2
• Typ Luminous Intensity:2.5mcd
• Typ Luminous Intensity per Segment, @ If:2.5mcd
• Typ Voltage Vf:2.1V

Document

• Datasheet
