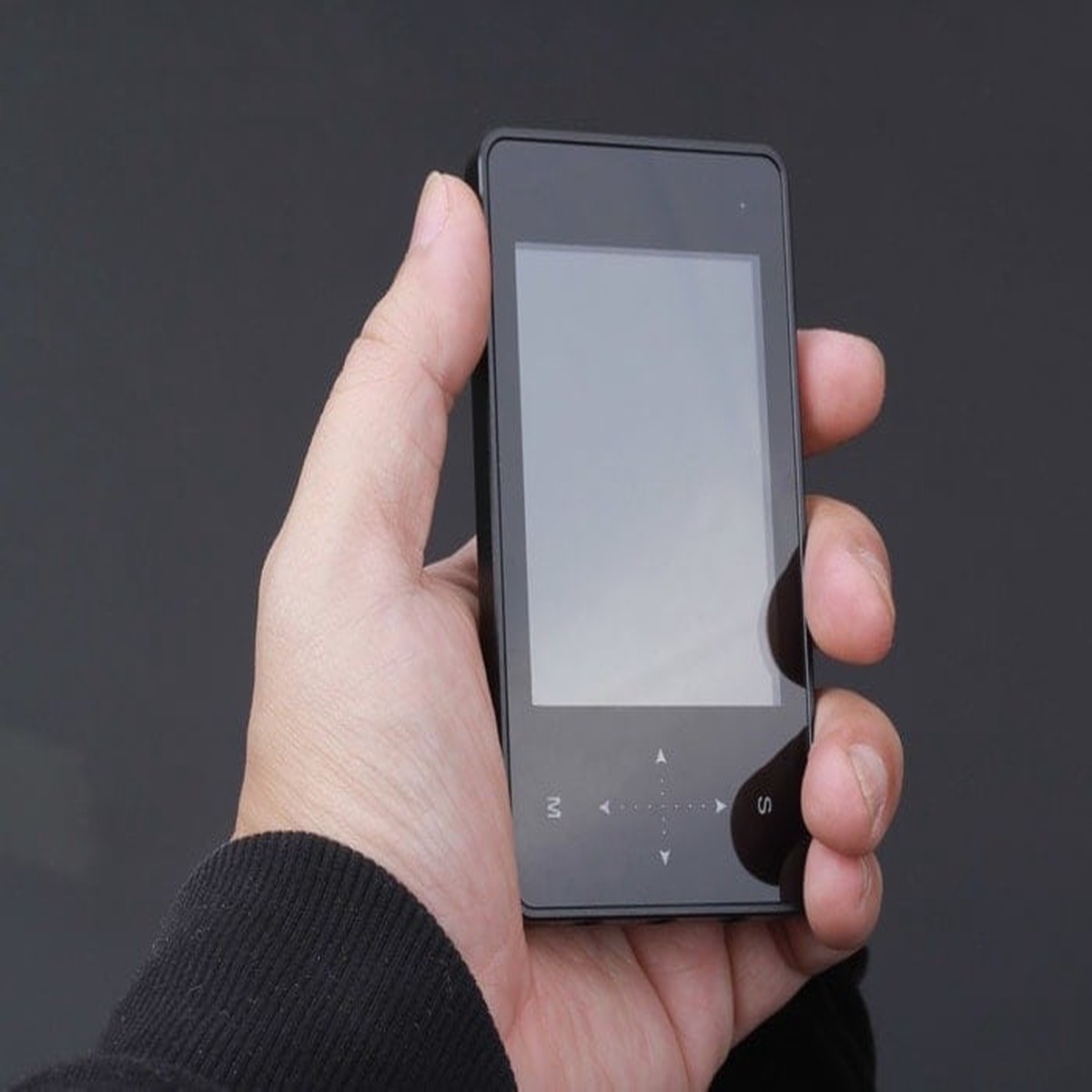

The DSO Touch, is a 2 channels digital pocket size oscilloscope. It is only 10mm thick with an aluminum alloy appearance. How a compact and fashionable tool! The touch screen is 320×240 color display. It supports SD card USB flash disk storage and USB charging. DSO Touch can be used in academic, experiment, electronics maintenance, engineering task etc.

Features:

• Pocket size and light
• Touch screen
• Two channels
• Signal Generator
• Various Triggering Option
• Easy waveform storage

Specification:

• Analog bandwidth: 1MHz
• Max sample rate: 10MSa/s
• Max sample memory depth: 8K
• Analog input impedance: 1M
• Max input voltage: 40V (X1 probe)
• Couling: AC/DC
• Vertical Sensitivity: 20mv/Div ~ 10V/Div (stepping in by 1-2-5 mode)
• Horizontal sensitivity: 1uS/Div ~ 2S/Div (1-2-5 stepping)
• Math waveforms: -A,-B; A+B; A-B; RecA, RecB, RecC
• Triggering Mode: Auto, Normal, Single, Noce, Scan
• Rising/Falling Edge Trigger
• Vertical precise, horizontal precise measurement
• Waveform functions auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage
• Signal Generator/10Hz ~ 1MHz square wave (duty adjustable) or 10Hz ~ 20KHz Sine/Square/Triangle/Sawtooth wave
• U disk waveform storage of 8MB, can store waveform data and waveform image
• Power supply internal 550mAh lithium battery, external USB port
• Display full color TFT LCD (320×240 pixels)
• Capacitive touchscreen: support input by finger sliding
• Dimension: 100 x 56.5 x 10.7 mm

Part List:

• DSO Touch x 1
• Spare probe X1 x 2
• Metal Stand x 1
• Sack x 1
• Micro USB Cable x 1
• Screw x 1
• DSO Touch User Manual x 1
