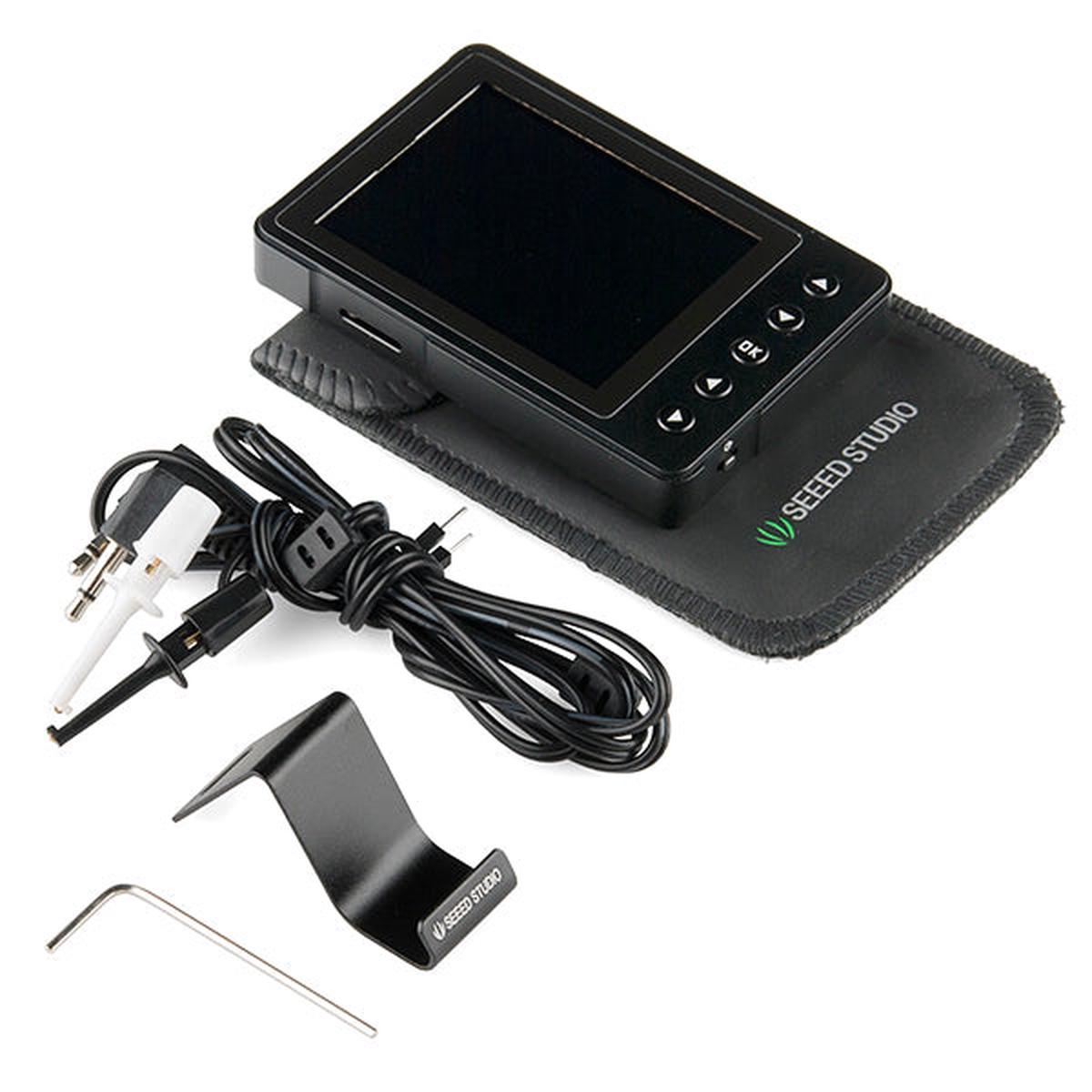

An oscilloscope is an awesome tool to have around the shop. Unfortunately, most scopes take up quite a bit of bench space and they’re not very portable. The DSO Nano v3, on the other hand, is a 32bit digital storage oscilloscope that fits in the palm of your hand! Based on ARM -M3, its equipped with a 320×240 color display, SD card, USB port and recharging function. Its compact, simple to operate and perfect for everything from the test bench to field work.
The version 3 of DSO Nano differs from version 2 in that it does not use white plastic shell. Instead, it uses black metal shell which is more durable and rugged.
Dimensions: 91 x 62 x 13mm
Features

• Portable and lightweight
• Color display
• Waveform storage and playback
• 6 triggering modes
• 200Khz Analog Bandwidth
• Complete measurement markers and signal characteristics
• Built-in Signal Generator
• Analog bandwidth: 0 – 200KHz
• Max sample rate: 1Msps 12Bits
• Sample memory depth: 4096 Point
• Input impedance: >500K
• Max input voltage: 80Vpp (by 1 probe)
• Trig modes: Auto, Normal, Single, None, Scan and Fit; Rising/Falling edge/level trigger; Trig level adjustable with indicator; Trig sensitivity adjustable with indicator.
• Waveform Functions: Auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage; Precise vertical/horizontal measurement with markers; Hold/Run.
• Signal Generator: 10Hz~1MHz square wave
• Waveform storage: Micro SD card
• PC connection via USB: as SD card reader

Documents

• Product Manual
