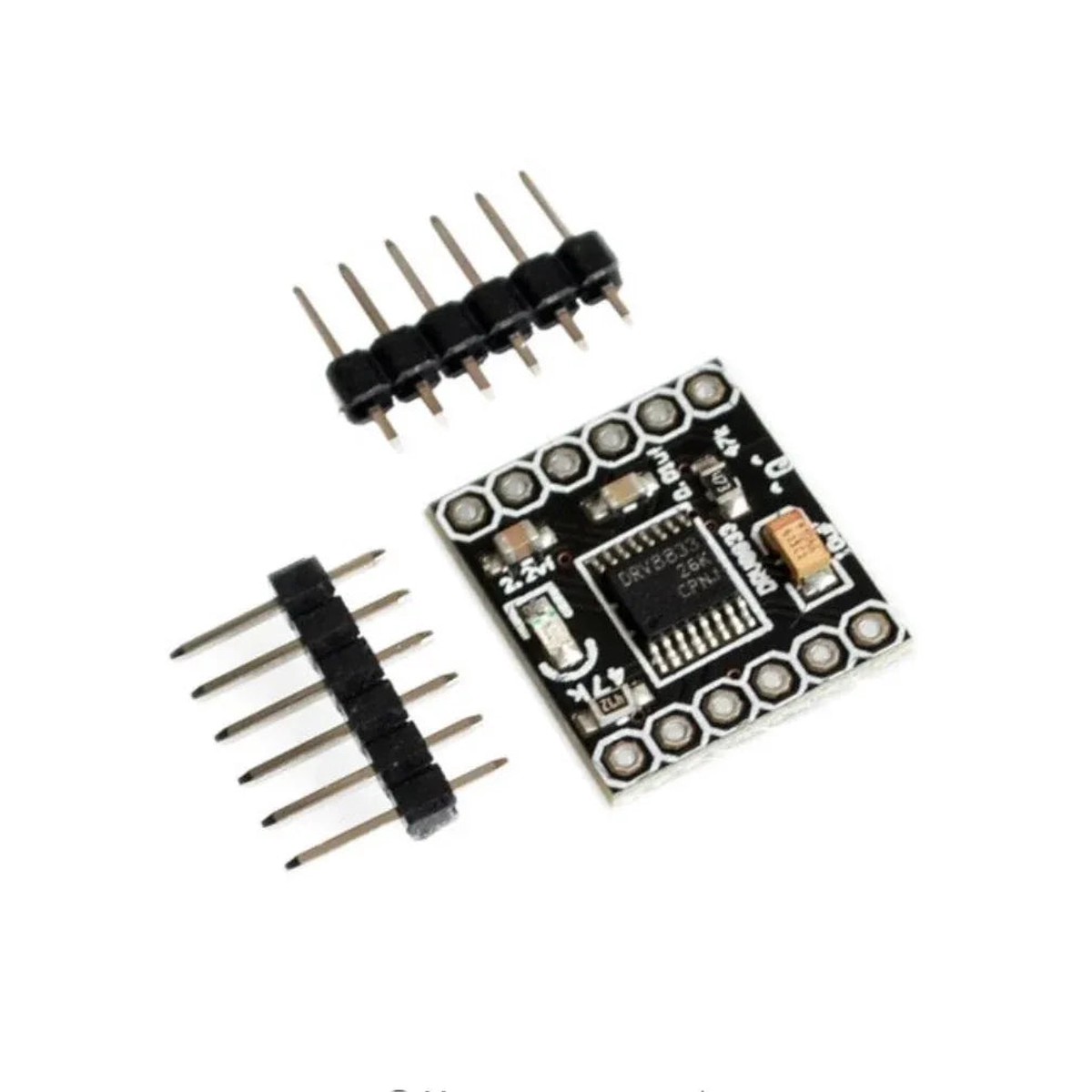

Descriptions:

• Size:18.5*16mm

• Input voltage:3V-10V

• Single H-Bridge output current:1.5A(It can drive two DC motor)

• Overcurrent protection:YES

• Short circuit protection:YES

• Undervoltage lockout:YES

• Overheating protection:YES

• With a low-power sleep mode

PINS:

1. ULT PIN:mode set.Low level is sleep mode

2. OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2

3. OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4

4. EEP PIN:Output protection.Default no need to connect.

5. VCC:3-10V

6. GND

Application:

• DC motor which drive current is less then 1.5A

• 4-wire step motor
