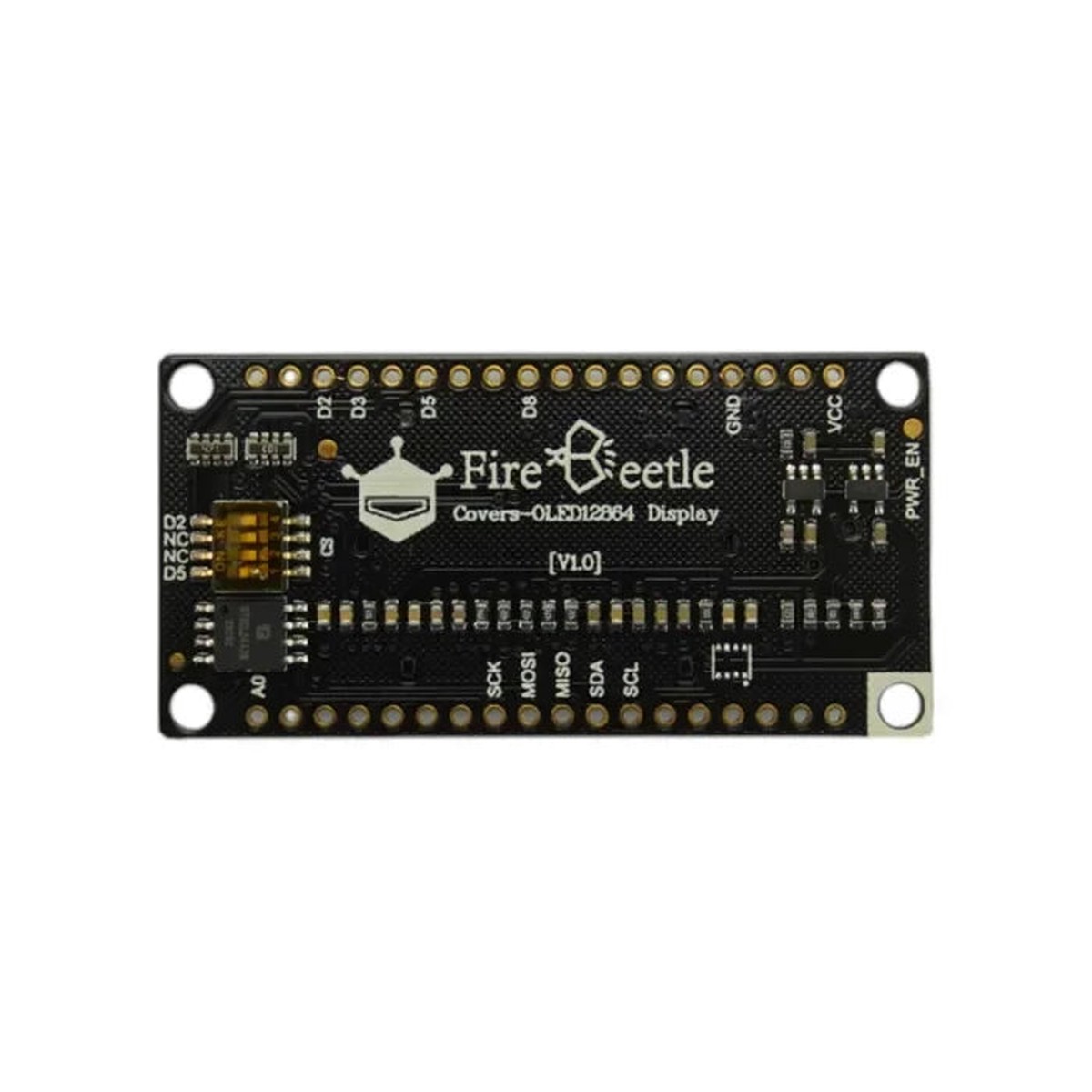

FireBeetle Covers-OLED12864 OLED Shield for ESP8266/ESP32

The DFRobot FireBeetle Covers-OLED12864 Display Module is a low-power OLED shield designed for IoT projects. Equipped with a 12864 resolution OLED and the SSD1360 driver IC, it uses the I2C interface and supports both Arduino libraries and MicroPython coding, fully compatible with the Gravity I2C OLED-2864 screen.

The OLED screen includes a protective frame to prevent scratches, integrates the GT30L24A3W multi-language font chip, and the BMA220 three-axis accelerometer. It also features an analog directional key and two independent digital keys (A & B), making it ideal for UI development on ESP8266/ESP32 boards.

Features

• Multi-language Font Support: Built-in GT30L24A3W chip.

• 3-Axis Accelerometer: Integrated BMA220 sensor via I2C.

• User Controls: Analog directional key + 2 digital buttons (A & B).

• Easy Integration: I2C bus for OLED, SPI bus for font chip.

• Compact OLED Display: 0.96″ blue screen, 12864 pixels.

• Low Power Consumption: 250A accelerometer, 12mA OLED.

Specifications

Applications

• IoT Projects: Easy UI for ESP8266/ESP32.

• Robotics & Sensors: Integrated accelerometer for motion detection.

• Multi-language Displays: Supports Chinese, Korean, Japanese, and Unicode fonts.

• DIY & Education: Perfect for prototyping and learning projects.

Shipping List

• 1 FireBeetle Covers-OLED12864 Display

• 2 18-pin 2.54mm Pin Header

• 2 18-pin 2.54mm Long Pin Header
