Quick Specs

• Device Type: Storage Controller (RAID) – Plug-in Card
• Interface Type PCI Express x8
• Data Transfer Rate 300MB/s
• Buffer Size 512MB
• Supported Devices Hard Drive Disk Array (RAID)
• Channel Qty 8
• Max Storage Devices Qty 16
• RAID Level RAID 0 1 5 6 10 50 60

The PERC H700 internal host-RAID product offers three different models to support 11th Generation Dell PowerEdge servers:

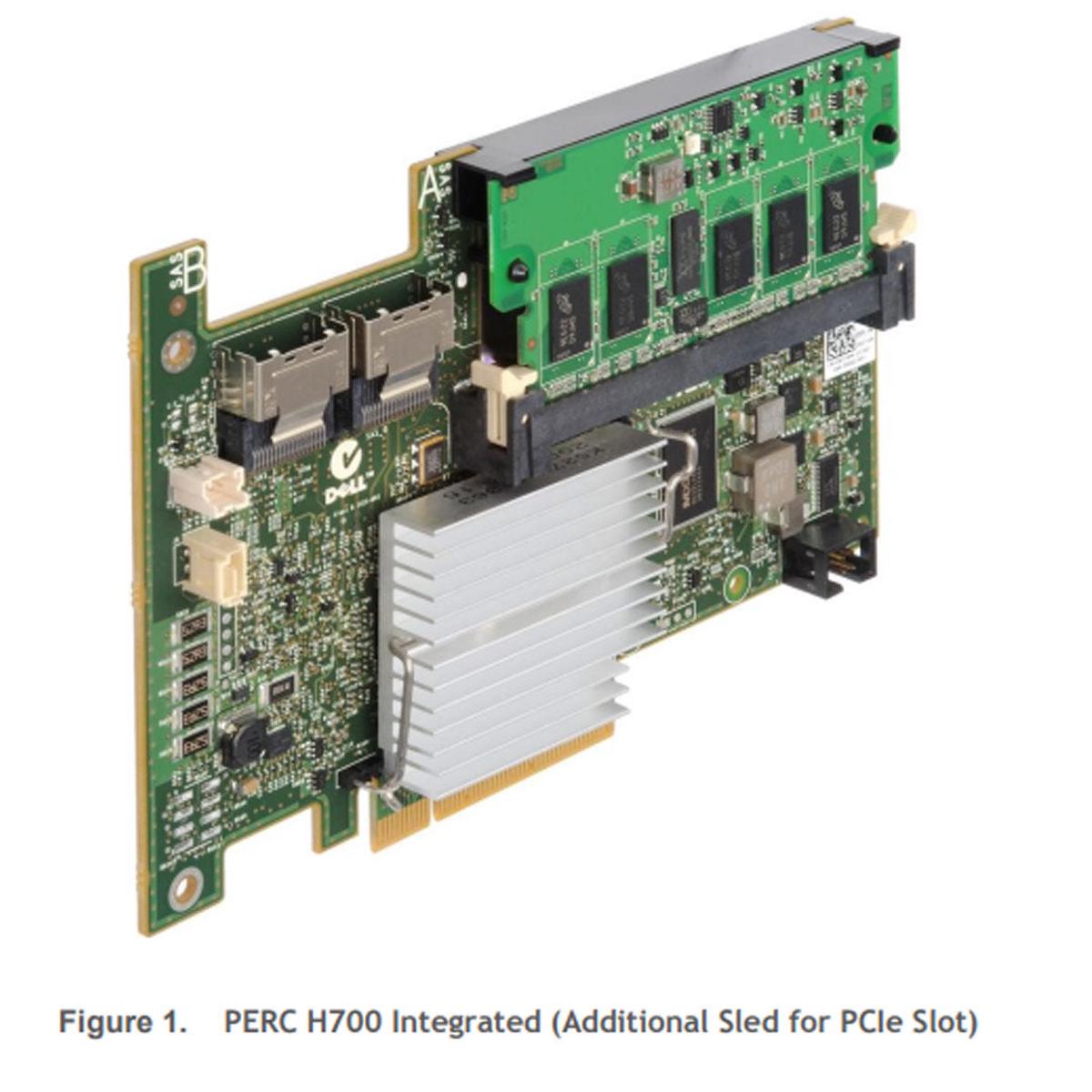

• The PERC H700 Integrated card with two x4 internal mini-SAS ports supports the PCIe 2.0 x8 host interface. Cache options include standard 512 MB with battery backup unit (BBU), 512 MB non-volatile (NV) cache, or 1 GB non-volatile cache. The PERC H700 Integrated card is installed in the dedicated internal storage slot of the server. See Figure 1 for a view of the PERC H700 Integrated card.
• The PERC H700 Adapter with two x4 internal mini-SAS ports supports the PCIe 2.0 x8 host interface. Cache options include standard 512 MB with BBU, 512 MB non-volatile cache, or 1 GB non-volatile cache. The PERC H700 Adapter is installed in a PCIe slot in the server. See Figure 1 for a view of the PERC H700 Integrated card (adapter version is the same with the addition of a sled for adhering to the PCIe slot connection).
• The PERC H700 Modular card with one x4 internal SAS port and a BBU supports the PCIe 2.0 x4 host interface. The PERC H700 Modular card is installed in the integrated slot in the blade server platforms. See Figure 2 for a view of the PERC H700 Modular card
