Adapter Specs

• Models: Host Bus Adapter – Front
• Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3 Gb/s SAS/SATA
• PCI Support: PCI-e 4.0
• SAS Connectors: 16 Port 2×8 Internal
• Cache Memory: N/A
• Write Back Cache: N/A
• Boot Support: Yes
• Max Drive Support: 16/controller, 50 with SAS Expander (Platform Limit)
• RAID Support: N/A

Part Numbers:

• fPERC: K6MCJ
• fPERC: T761Y
• FH: GJYVJ

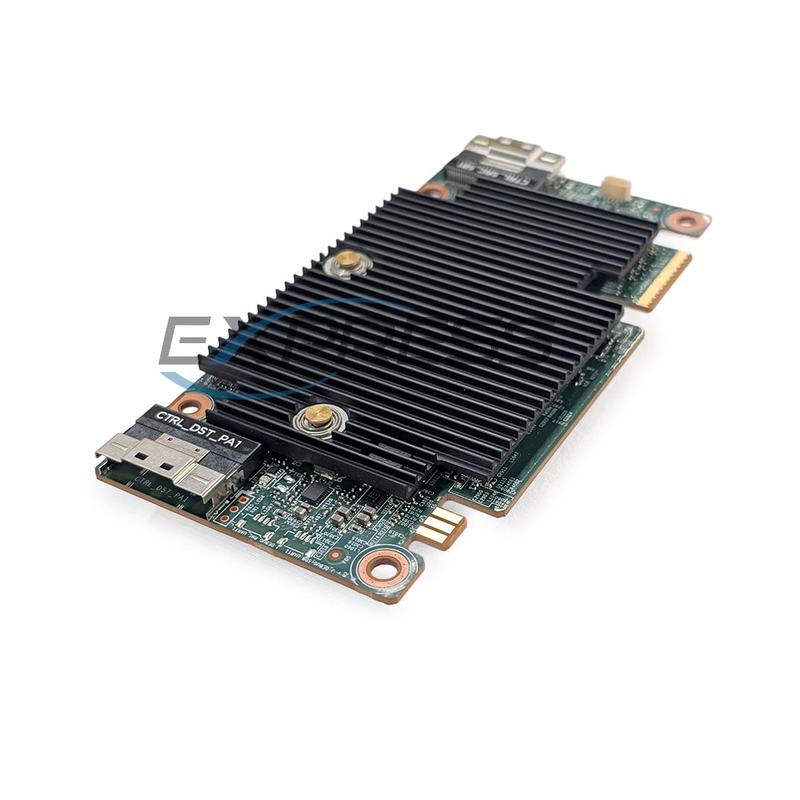

The Dell PERC 11 HBA355i Non-RAID Front Controller provides high-speed 12Gb/s SAS connectivity for enterprise servers requiring direct-attached storage without RAID overhead. Designed with a PCI-e 4.0 interface, it supports a wide range of SAS and SATA drive speeds through its 16-port 2×8 internal configuration.

Offering boot support and compatibility with SAS expanders, the HBA355i enables connection to up to 50 drives within platform limits. With no RAID and no cache, it delivers efficient, streamlined storage performance ideal for non-RAID configurations and environments focused on flexible scalability and maximum throughput.
