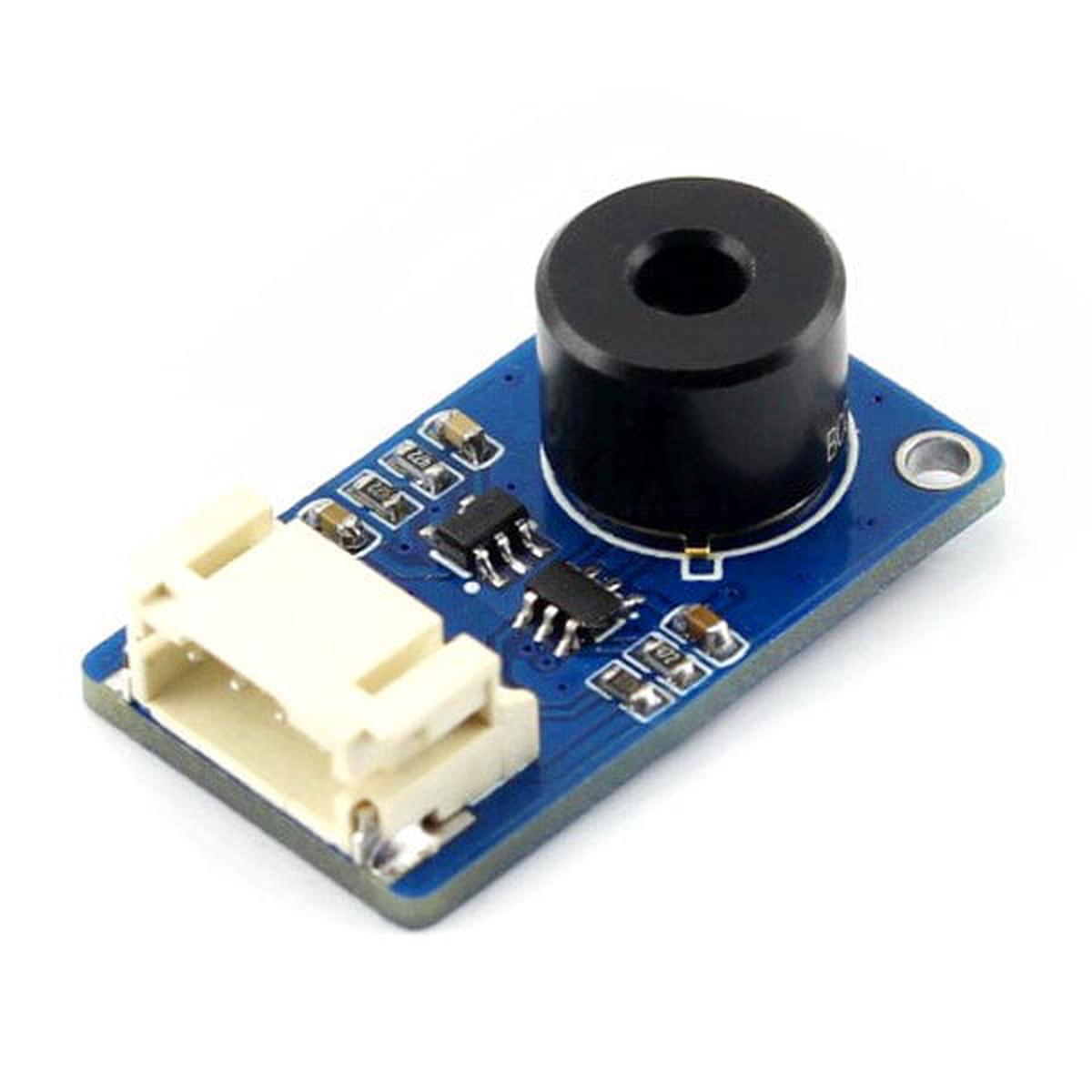

This is a contact-less infrared temperature sensor for use in microcontroller-based projects as well as with the popular SBCs on the market today. This sensor has both digital PWM and SMBus (System Management Bus) output, and a range of 40c-85c. This is the perfect non-contanct temperature sensor for your next Raspberry Pi, Arduino, or Adafruit Feather HUZZAH project.

Features

• Measures the surface temperature of an object without touching it, The sensor determines the temperature depending on the emitted IR wave length of the target
• Also measures the average temperature over an area
• Contact-less, high precision, high resolution, fast response
• Calibrated before delivery, with gradient temperature compensation
• Works with 3.3V/5V MCU system directly, thanks to built-in logic level conversion

Specifications

• Power: 3.3V ~ 5V
• Measuring range (area): -40C ~ 85 C
• Measuring range (object): -70C ~ 380 C
• Resolution: 0.02C
• Precision: 0.5C ( 0~50C)
• Field of view (FOV): 35
• Dimension: 28mm x 16 mm
• Mounting holes size: 2.0mm

Resources

• Waveshare Wiki

Pinout

• VCC 3.3V ~ 5V
• GND GND
• SDA MCU.I2C data line
• SCL MCU.I2C clock line

Package Contents

• 1x Infrared Temperature Sensor
• 1x PH2.0 4-PIN wire
