The Raspberry Pi Pico (and Pico 2) has 40 pins spread across two 20-pin headers. Now that’s a lotta’ pins folks, and mixing them up can be the difference between a successful prototype and a puff of the infamousmagic blue smoke!

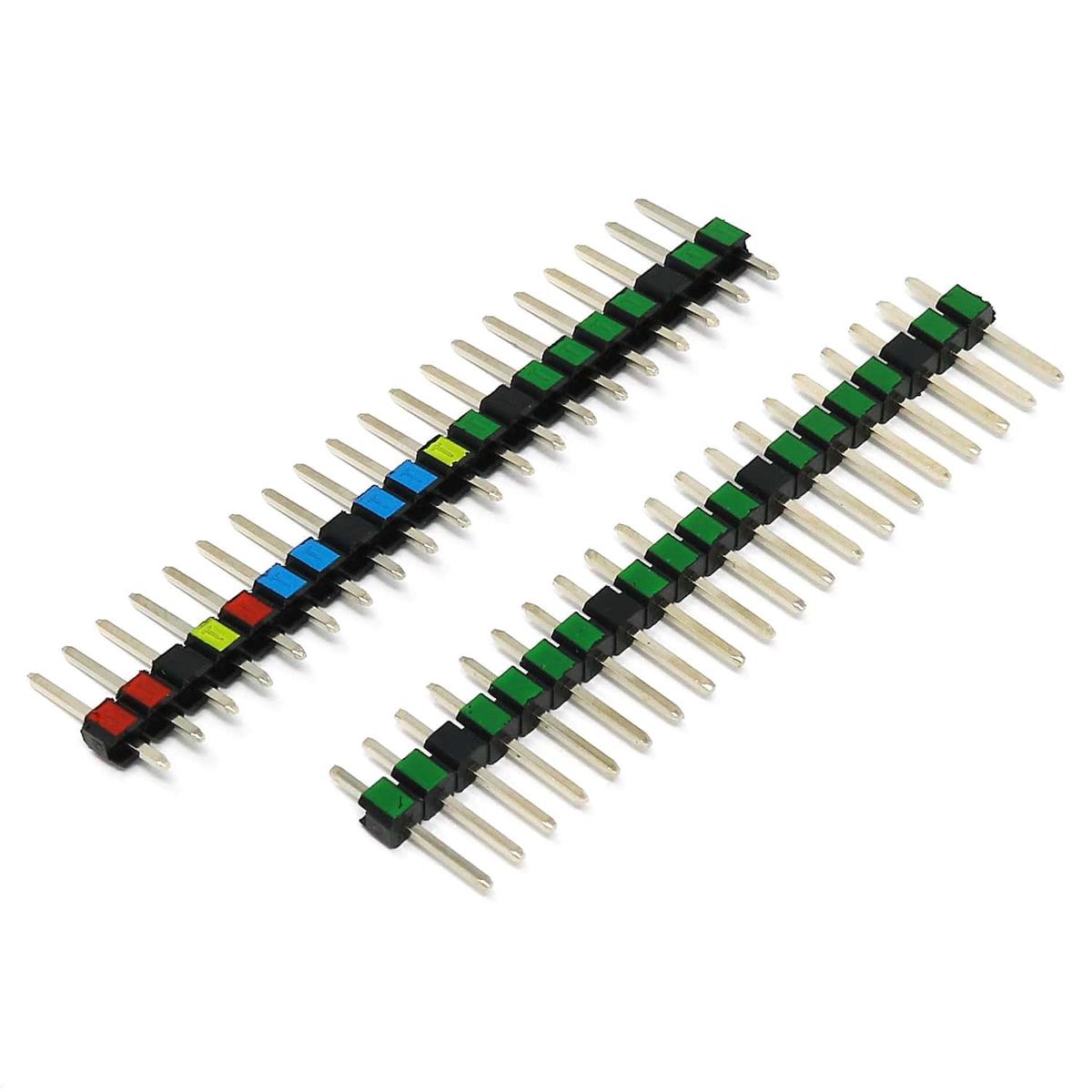

To help avoid these issues, we’ve had these custom colour-coded Pico pin headers made to help you navigate your pins with confidence. Solder them to your Pico (the right way up/right side!) and you’ll no longer need to count your way across the pins, just get to the right spot using the colours and find your chosen pin.

Colour Scheme

The following colour scheme has been used:

• Green for general GPIO I/O pins
• Black for GND
• Red for the main power pins
• Blue for ADC pins
• Yellow for 3V3_EN and RUN (because these guys aren’t used much)

Package Contents

• 1x Colour-coded Pico header set

Raspberry Pi Pico not included
