Product Datasheet

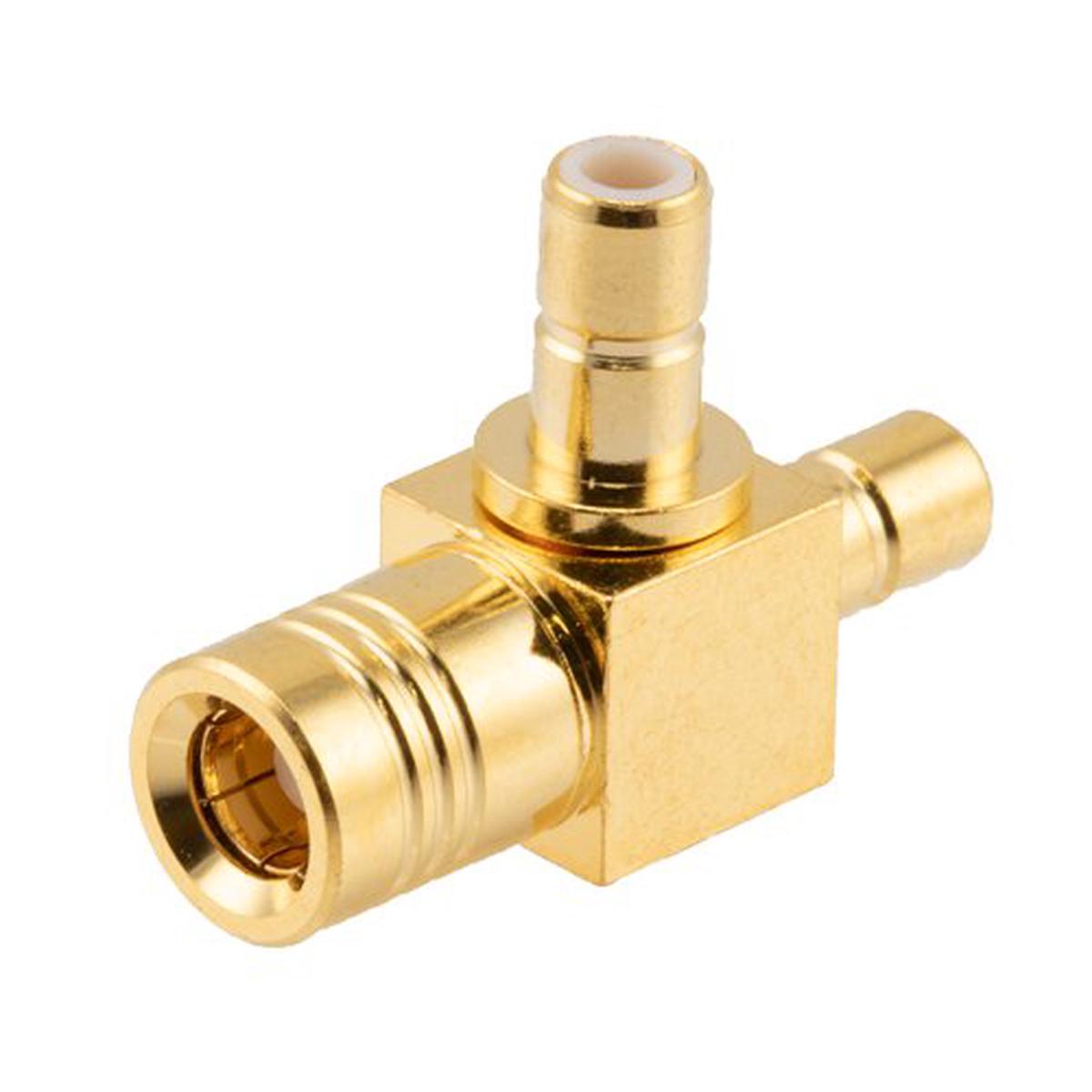

These L-com RF Coaxial Adapters are used to interface between SMB to SMB with coaxial connections. The LCAD30021 is a tee adapter with a plug to jack configuration. This Coaxial Adapter, SMB Tee Plug / Jack / Jack is made from brass and has a gold finish.The SMB interface is smaller than an SMA and uses a snap on connection. An important difference to note is that the SMB Jack (female) interface design has a Male center contact and the SMB Plug (Male) design uses a female socket for the center pin. SMB connectors generally have a maximum operating frequency of 4 GHZ and are available in 50 Ohm and 75 Ohm impedances.

Features

• Provides In-Series SMB Connections
• Gold Plated Center Contacts

Application

• Multi Cable In-Series Interconnect
• Synchronization and Trigger Signal Interconnect
• General Purpose Lab Use
