43″ – 85″, max. 68 kg, max. 863 x 450 mm, +/- 10 Tilt, Black

Key Features

• Easy to reach 0.75 (19 mm) post-installation leveling screw and 10 (254 mm) ball end hex-key included
• Display can be tilted 10 forward or back to set the optimal viewing angle especially useful for large screens
• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 863 x 450 mm
• Rigid wall plate supports up to 150 lbs (68 kg) and has additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords
• Kickstand for easy access to power and signal connections
• Theft deterrent locking option to secure the screen in place with padlock or steel cable (not included)
• UL and TUV safety standards approved

Description

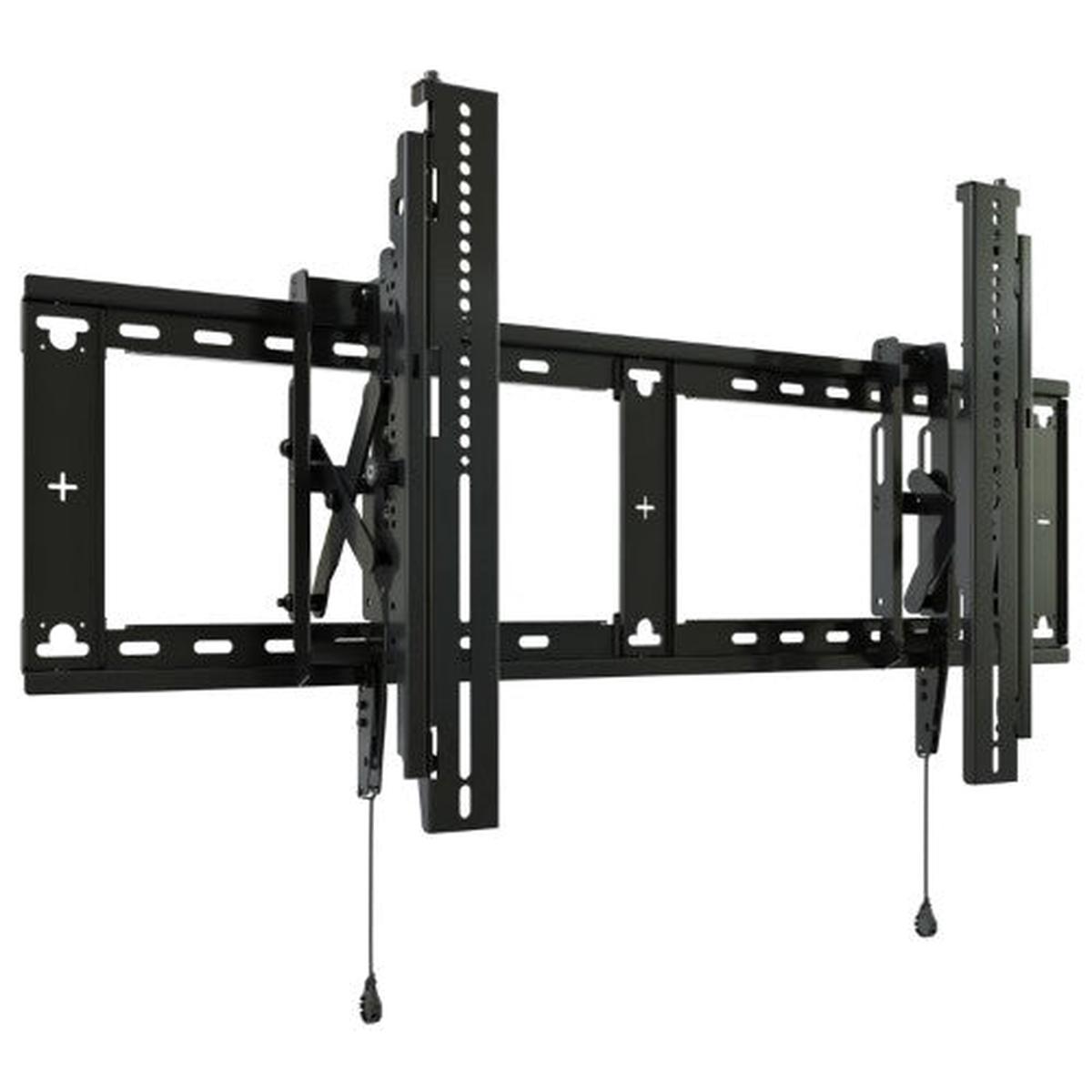

The Fit series RLXT3 is a large extending tilt display wall mount for 43 to 85 typical display sizes and supports mounting patterns up to 863 x 450 mm. This next-generation design features 0.75 (19 mm) post-installation leveling, robust wall plate design supporting up to 150 lbs (68 kg), minimum 2.67 (68 mm) depth up to 6 (152 mm) when fully extended away from the wall, 10 forward and back tilt, and UL and TUV safety standard approvals.

Specifications
