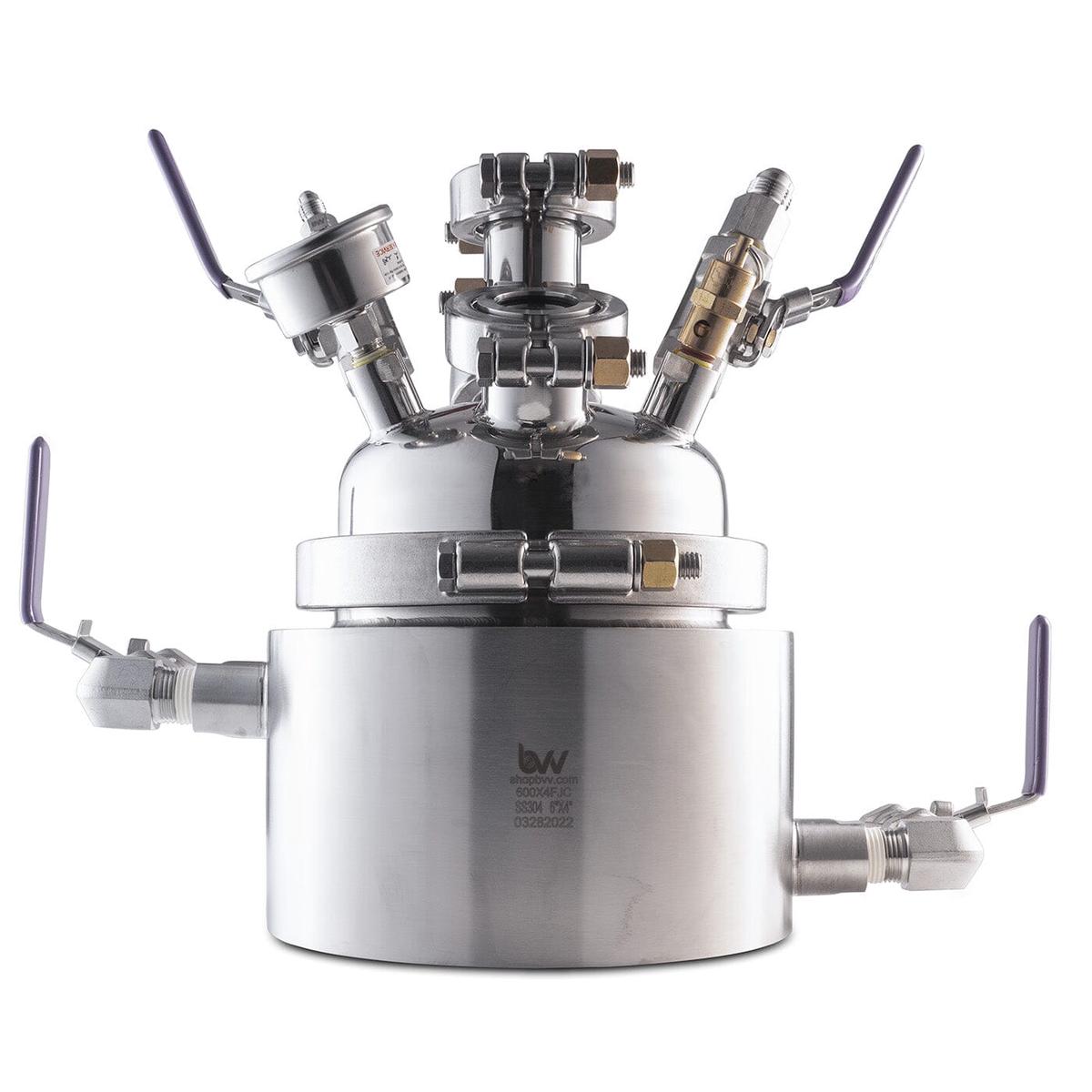

Certified Jacketed Diamond Miner

Introducing BVV’s Certified Jacketed Diamond Miner, peer reviewby PRV Engineers, the ultimate tool for precise and efficient crystallization procedures. Take control of your crystallization process like never before with our Certifed Jacketed Diamond Miner. Designed to accelerate crystal growth, this miner allows for precise heating or cooling through its jacketed base, ensuring optimal conditions for crystal formation.

Our Certified Jacketed Diamond miner comes fully loaded with all the features you could ask for in a diamond miner including 2X 1/4″ JIC Lid Valves, 1X 1/2″ JIC Lid Valves for exceptional versatility, 2X Certified Borosilicate Sight Glasses for optimized process viewing, 1X-30hg-250PSI Compound Pressure Gauge for precise process monitoring, and1X100 PSI ASME Safety Valve for insured safety and peace of mind.

With the capability to maintain precise temperature control, you can achieve consistent and high-quality crystals for a wide range of applications. Whether you’re looking to produce large crystals or control the size and shape of your crystal output, our Jacketed Diamond Miner provides the flexibility and accuracy you need to meet your specific requirements.

Upgrade your crystallization process into compliance today and elevate the quality, and efficiency of your crystal production with BVV’s Certified Jacketed Diamond Miner.

*Certified versions require infield verification by PRV engineers to ensure compliance prior to certification being issued. Certification includes Jurisdiction specific peer review document, Field inspection letter for the unit, & a field certificate approving its use.*

Specifications:

• 2X Certified Borosilicate Sight Glasses (FJDM-6: 1.5″/FJDM-12: 2″)
• 1X100 PSI ASME Safety Valves
• 1X-30hg-250PSI Compound Pressure Gauge
• 2X 1/4″ JIC Lid Valves
• 1X 1/2″ JIC Lid Valve with
• 1X 1/2″ JIC Cap for Seeding
• 2X 1/2″ Barb Jacket Valves

Available Size/Type:

• 6″Non-Certified
• 12″Non-Certified

• 6″ Infield Certified
• 12″Infield Certified
