CD4013 consists of two identical, independent data-type flip-flops. Each flip-flop ofCD4013 has independent data, set, reset, and clock inputs and Q and Not Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications.

Features of CD4013D type flip-flop:

1. Power Delivery
2. Grid Infrastructure
3. Medical, Healthcare, and Fitness
4. Body Electronics and Lighting
5. Building Automation
6. Telecom Infrastructure
7. Test and Measurement

Features of CD4013D type flip-flop:

1. Functions: Setting (Preset) and Resetting
2. Type: Type D
3. Output type: differential
4. Number of components: 2
5. Bit per component: 1
6. Frequency-clock: 24MHz
7. Maximum propagation delay at different V, maximum CL: 90ns @ 15V, 50pF
8. Trigger Type: Positive Edge
9. Current-output high, low: 6.8mA, 6.8mA
10. Voltage-power supply: 3V~18V
11. Current-static: [4] UA
12. Input Capacitance: 5pF

Package Includes:

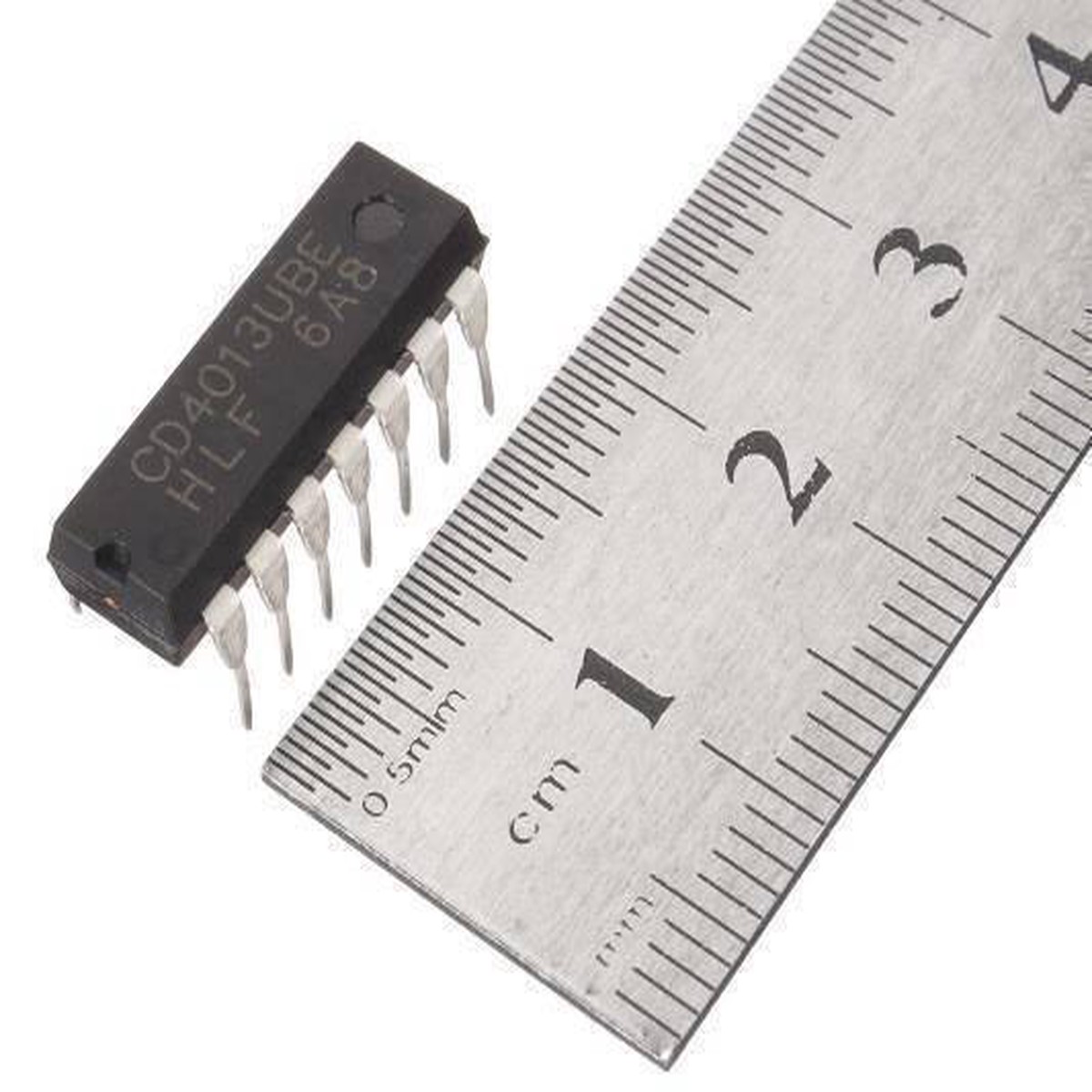

1 xCD4013 DIP14.
