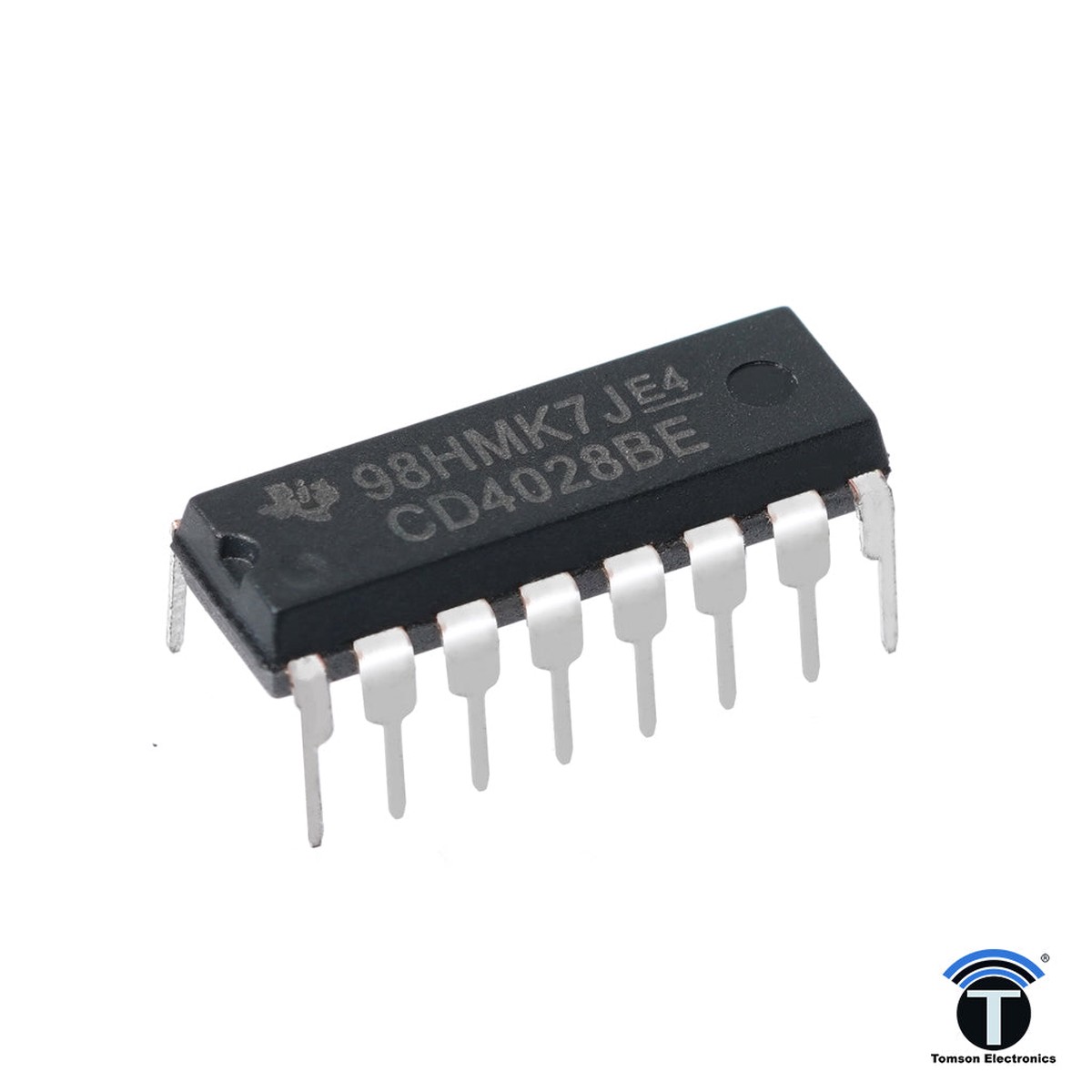

CD 4028

CD4028 B types are BCD-to-decimal or binary-to-octal decoders consisting of buffering on all 4 inputs, decoding logic gates, and 10 output buffers. A BCD code applied to the four inputs, A to D, results in a high level at the selected one of 10 decimal decoded outputs. Similarly, a 3-bit binary code applied to inputs A through C is decoded in octal code at output 0 to 7 if D = 0. High drive capability is provided at all outputs to enhance dc and dynamic performance in high fan-out applications.

CD 4028 Features

• High Voltage Type (20V Rating)
• BCD-to-Decimal Decoding or Binary-to-Octal Decoding
• High Decoded Output Drive Capability
• Positive Logic Inputs and Outputs – Decoded Outputs Go High On Selection
• Medium-Speed Operation – tPHL, tPLH = 80ns (typ) at VDD = 10V
• Standardized Symmetrical Output Characteristics
• 100% Tested For Quiescent Current at 20V
• Maximum Input Current of 1A at 18V Over Full Package-Temperature Range; – 100nA at 18V and +25oC Noise Margin (Over Full Package Temperature Range): – 1V at VDD = 5V – 2V at VDD = 10V – 2.5V at VDD = 15V 5V, 10V and 15V Parametric Ratings
