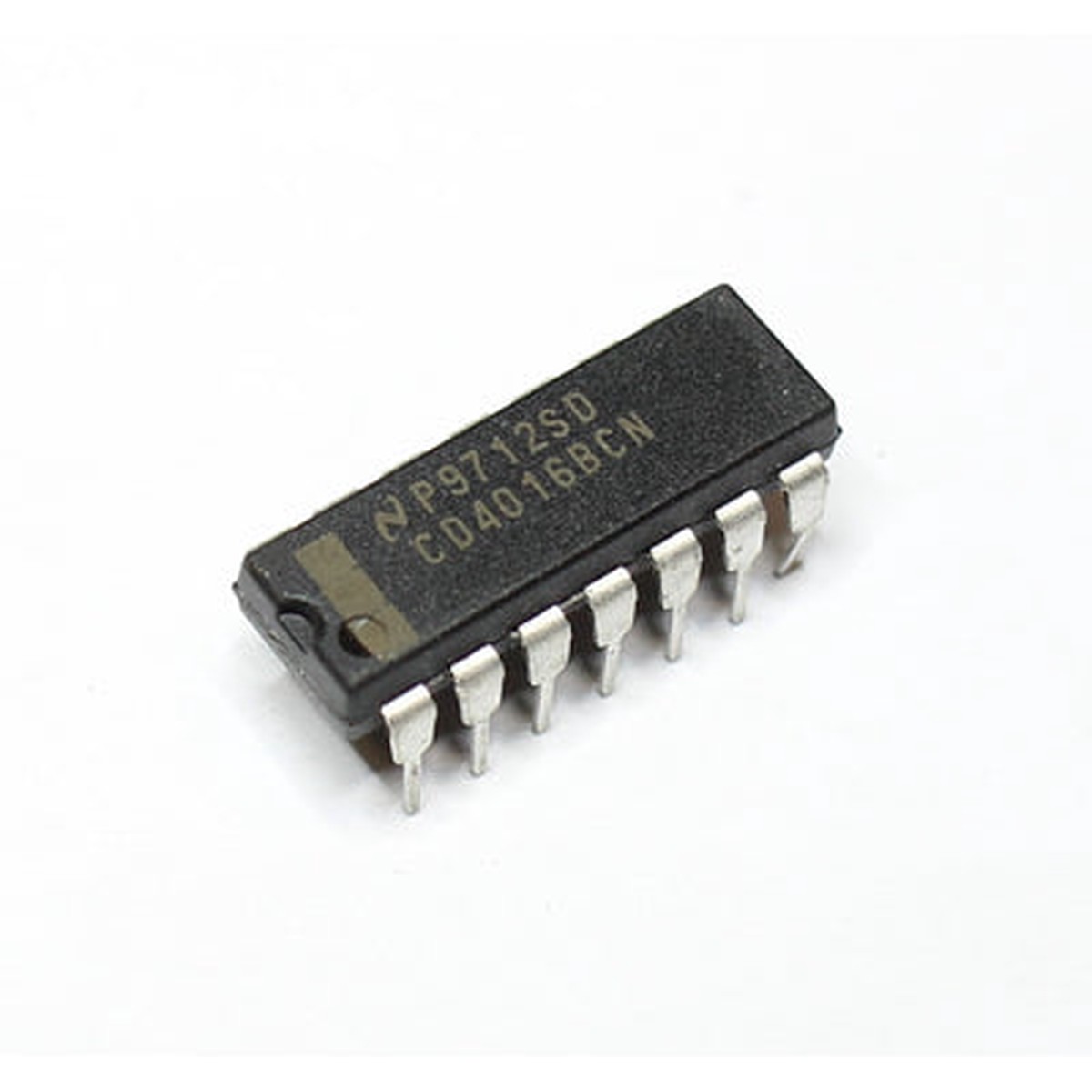

The CD 4016 BP is a quad bilateral analog switch IC designed for signal routing and switching applications in analog and digital circuits. It allows bidirectional signal transmission with low on-resistance, making it ideal for audio switching, data multiplexing, and communication systems.

Key Features:

• Quad Bilateral Switches: Four independent switches for signal routing.
• Wide Operating Voltage Range: Operates from 3V to 15V.
• Low “ON” Resistance: Provides minimal signal loss and high integrity.
• High Noise Immunity: Ensures stable operation in mixed-signal environments.
• Compact Package: Available in DIP-14 and SOIC-14 for easy PCB integration.

Package Includes:

• 1 x CD 4016 BP Quad Bilateral Analog Switch IC

Specifications:

• Supply Voltage: 3V to 15V
• ON Resistance: 200 (typical at 10V)
• Switching Time: 60ns (typical at 10V)
• Operating Temperature Range: -55C to +125C
• Package Type: DIP-14 / SOIC-14

Applications:

• Analog and Digital Signal Switching
• Audio and Video Switching
• Data Multiplexing
• Sensor Signal Routing
• Communication Circuits

Datasheet:

Click here to view the datasheet
