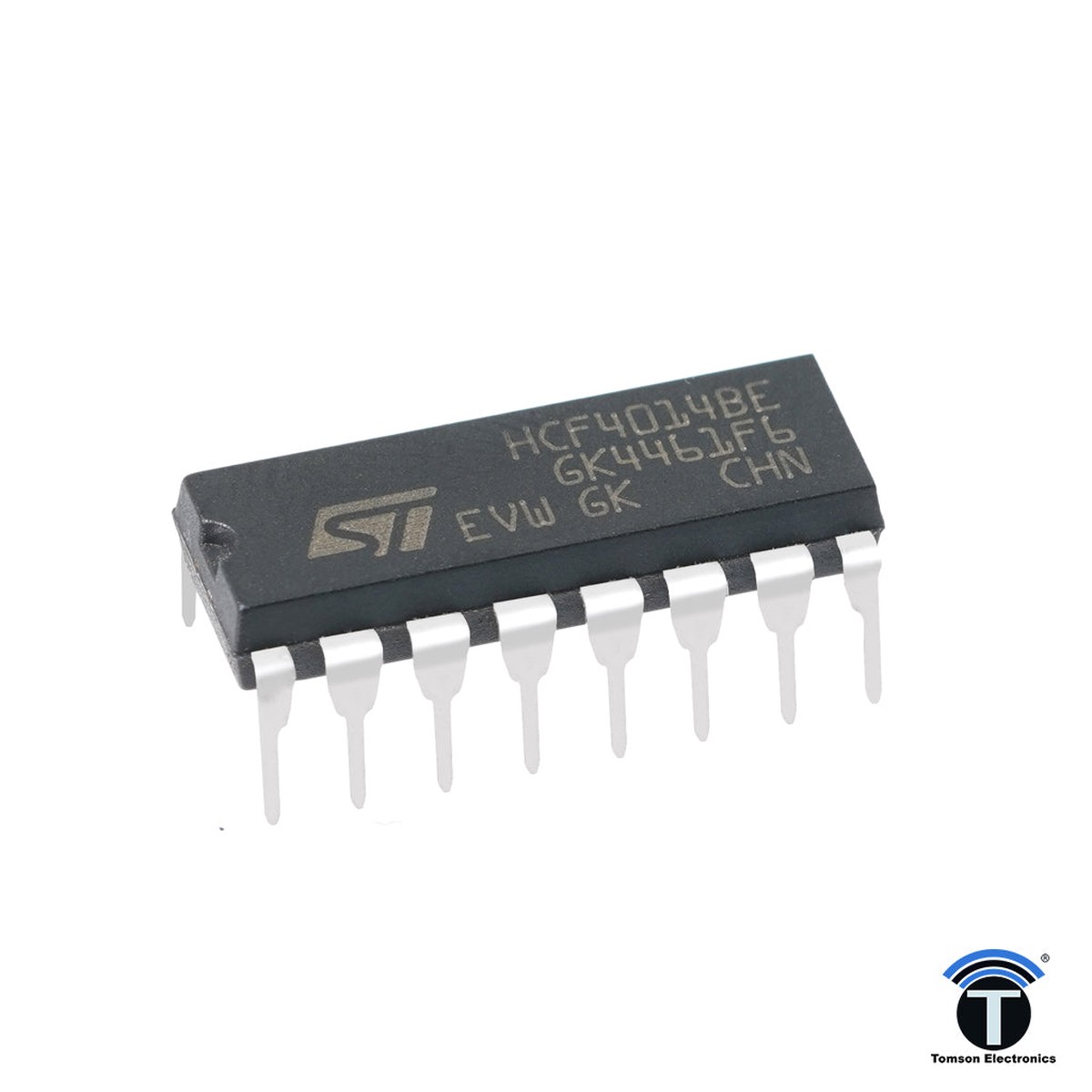

The CD4014 is an 8-stage static shift register IC designed for high-speed data storage and transfer applications. It features parallel and serial data input capabilities, making it ideal for use in digital logic circuits, data conversion, and control systems.

Key Features:

• 8-Bit Static Shift Register: Provides reliable data storage and transfer.
• Parallel and Serial Data Input: Supports flexible data handling.
• High-Speed Operation: Optimized for fast signal processing.
• Low Power Consumption: CMOS technology ensures energy efficiency.
• Wide Operating Voltage Range: 3V to 15V for various circuit applications.
• Standard Logic Compatibility: Interfaces easily with TTL and other CMOS circuits.

Package Includes:

• 1 x CD4014 8-Stage Static Shift Register IC

Specifications:

• Logic Family: CMOS
• Number of Stages: 8
• Operating Voltage: 3V – 15V
• Input Voltage Range: 0V – VDD
• Power Consumption: Low-power operation
• Package Type: DIP-16 / SOIC-16
• Operating Temperature Range: -55C to +125C

Applications:

• Data Latching and Storage
• Shift Register Applications
• Serial-to-Parallel Data Conversion
• Digital Control Systems
• Signal Processing

Datasheet:

Download the full CD4014 datasheet for complete technical specifications.
