Product Datasheet

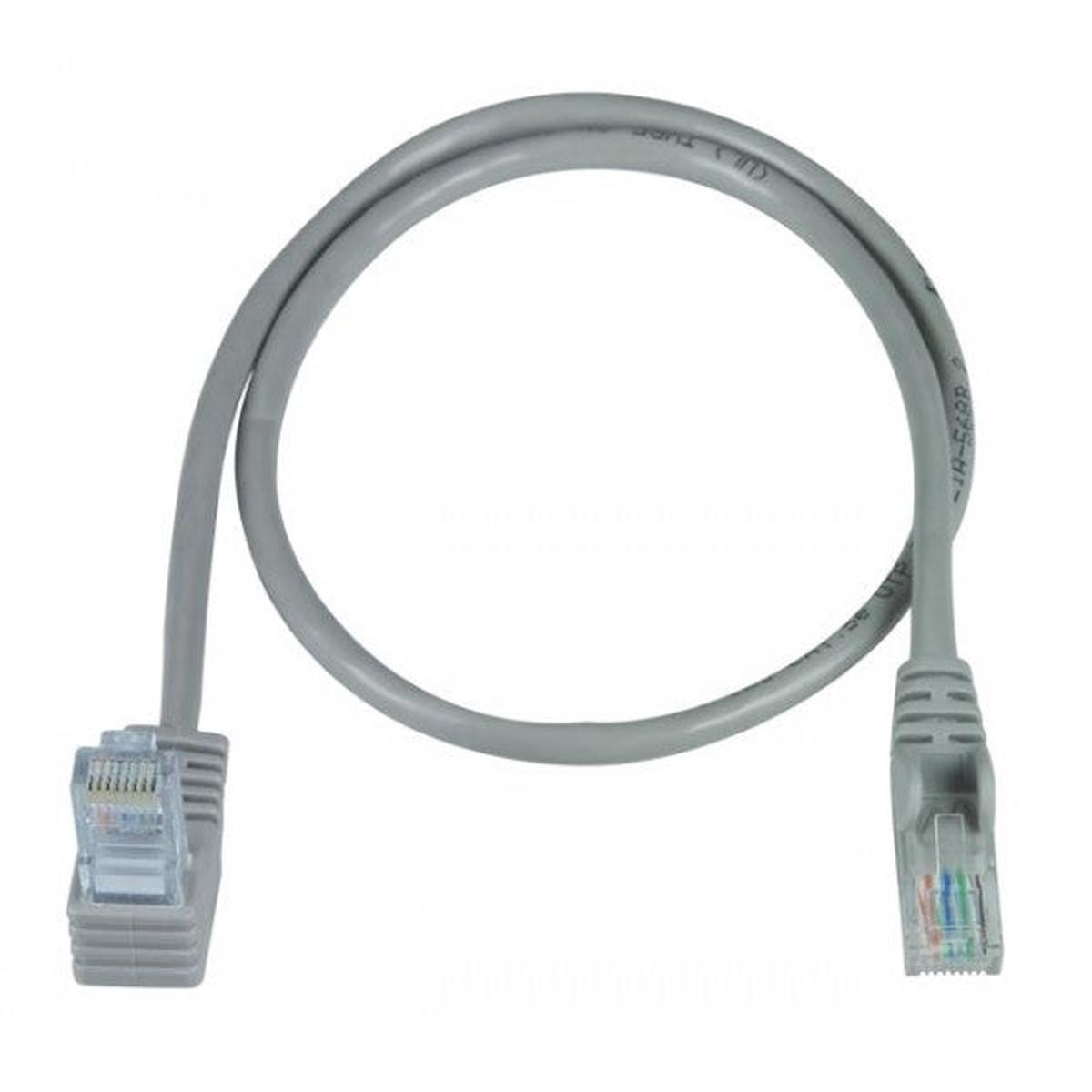

VPI’s VPCAT Up Angle to Straight CAT6 Patch Cords are assembled with T568B four pair stranded cable, and are ideal for confined spaces. The strain relief boot angles the cable straight up, preventing excessive bending while reducing stress on the cable.

• Used to connect your network card to a 10/100/1000Base-T hub or switch.
• Patch cables and boots are the same color
• Boot of straight end is snagless.
• Patch cables have stranded copper conductors for flexibility – great for frequent changes that occur at the wall outlet or patch panel.
• Up angle L plug configuration useful in tight fit situations.

Environmental

• Operating temperature: 32 to 167F (0 to 75)
• Storage temperature: -4 to 185F (-20 to 85)

Specifications

• 24AWG stranded UTP CAT6.
• 8×8 (RJ45) plugs
• Wired straight through.
• 15 micron gold plated contacts
• Complies with TIA/EIA 568B standard.
• UL, CSA, RoHS compliant.
