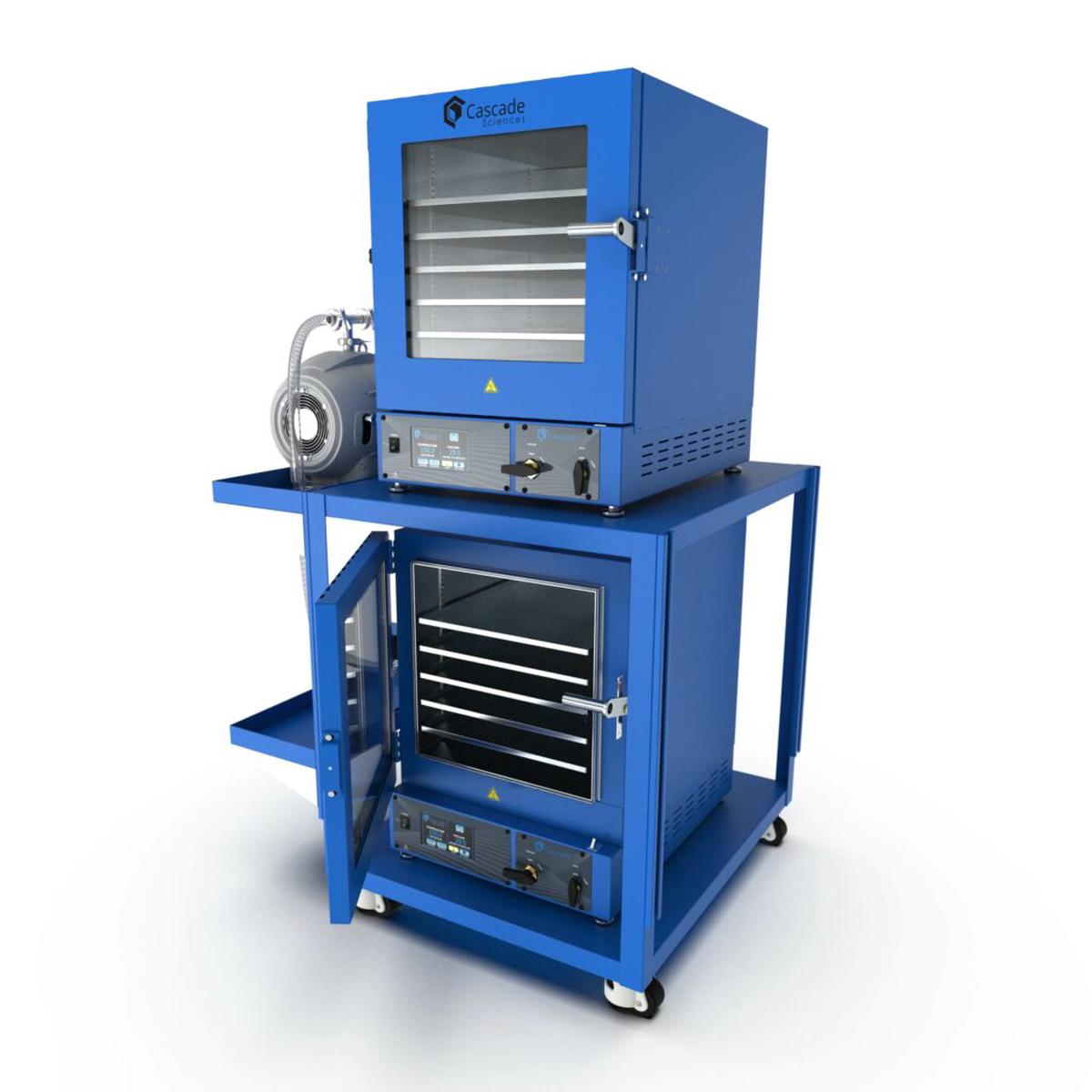

Cascade CVO-5 DOUBLE UP Vacuum Package

Cascades CVO-5 DOUBLE UP Vacuum Package is ideal for large volume production with the flexibility of small batch management. The package offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material.

Typically ships in 3-5 weeks

• 2xCascade Sciences CVO-5 Vacuum Ovens
• 1x Heavy-Duty Industrial Mobile Cart
• 10x Adjustable, Removable Shelves
• 2x Adjustable Side Shelves
• 2x MAXEVAP Connection Kits
• 1xAgilent IDP15 Oil-Free Vacuum Pump, 9cfm

Model CVO-5

VOLUME:
4.5 Cubic Ft. (127 Cubic Liters)

SHELVING:
Includes 5 removable, adjustable (recommend 8 MAX)
Surface Area: 18W x 24D
Weight Capacity: 50 lbs (22.7Kg)
Aluminum

OVEN INTERIOR:
18W x 24D x 18H
457mm x 609mm x 457mm

OVEN EXTERIOR:
33.3 W x 38.6 D x 31.8H
846mm x 980mm x 808mm

WEIGHT:
360 lbs / 163.3 Kg

TEMPERATURE RANGE:
Operating Range: Ambient +14.4C to 150C / +26F to 302F

TEMPERATURE UNIFORMITY:
@ 105F +/- 2.0F
@ 200F +/- 3.6F
@ 300F +/- 5.5F

@ 40C +/- 1.0C
@ 90C +/- 2.0C
@ 150C +/- 3.0C

TEMPERATURE STABILITY:
@ 105F +/- 0.2F
@ 200F +/- 0.4F
@ 300F +/- 0.2F

@ 40C +/- 0.1C
@ 90C +/- 0.2C
@ 150C +/- 0.1C

HEAT UP FROM AMBIENT TO STABILIZATION TIME:
To 105F (40C) 60 minutes
To 200F (90C) 126 minutes
To 300F (150C) 180 minutes (170 minutes for 220V version)

COOL DOWN TIME:
From 105F (40C) 345 minutes
From 200F (90C) 285 minutes
To 300F (150C) 335 minutes (460 minutes for 220V version)

*Temperature performance specifications are preformed in empty ovens. Performance can vary in ovens containing product, ambient lab conditions.

VACUUM VALVE:
Turn Lever

VENT VALVE:
Turn Lever

INTERIOR LIGHTING:
LED Strips (Rated to 150C)

GLASS WINDOW:
Tempered NGI-US to ANSI Z97.1.2007

VACUUM GAUGE:
Digital, selectable to read in inches mercury (Hg) or torr, barr

CONTROLLER:
Touch Screen
Accurate Within 1F
Independent Overtemp Failsafe
Easy updates with USB port

PORTS (REAR):
Vacuum = 3/8thBarb
Vent = Barb
Auxiliary KF-25 Port

INERT GAS INTRODUCTION:
Vent Barb
15 psi max inlet pressure

POWER:
110V 120V / 1ph / 14A 50/60Hz
Cord Included
NEMA 5-15 Power Outlet

1105 BTU/hr
Rating at max power

220V 240V / 1ph / 7A 50/60Hz Available
Cord Included
NEMA 6-15R Power Outlet

1228 BTU/hr
Rating at max power

INCLUDED ACCESSORIES:
5 Shelves
20 Clips
4 Leveling Feet
Power Cord

DOOR GASKET:
18 x 18 Cured Silicone
Temp Silicone rated to 446F(230C)

SHIPPING DIMENSIONS:
41L x 41W x 45H
Class 85
Shipping Weight: 449 lbs / 204 Kg
