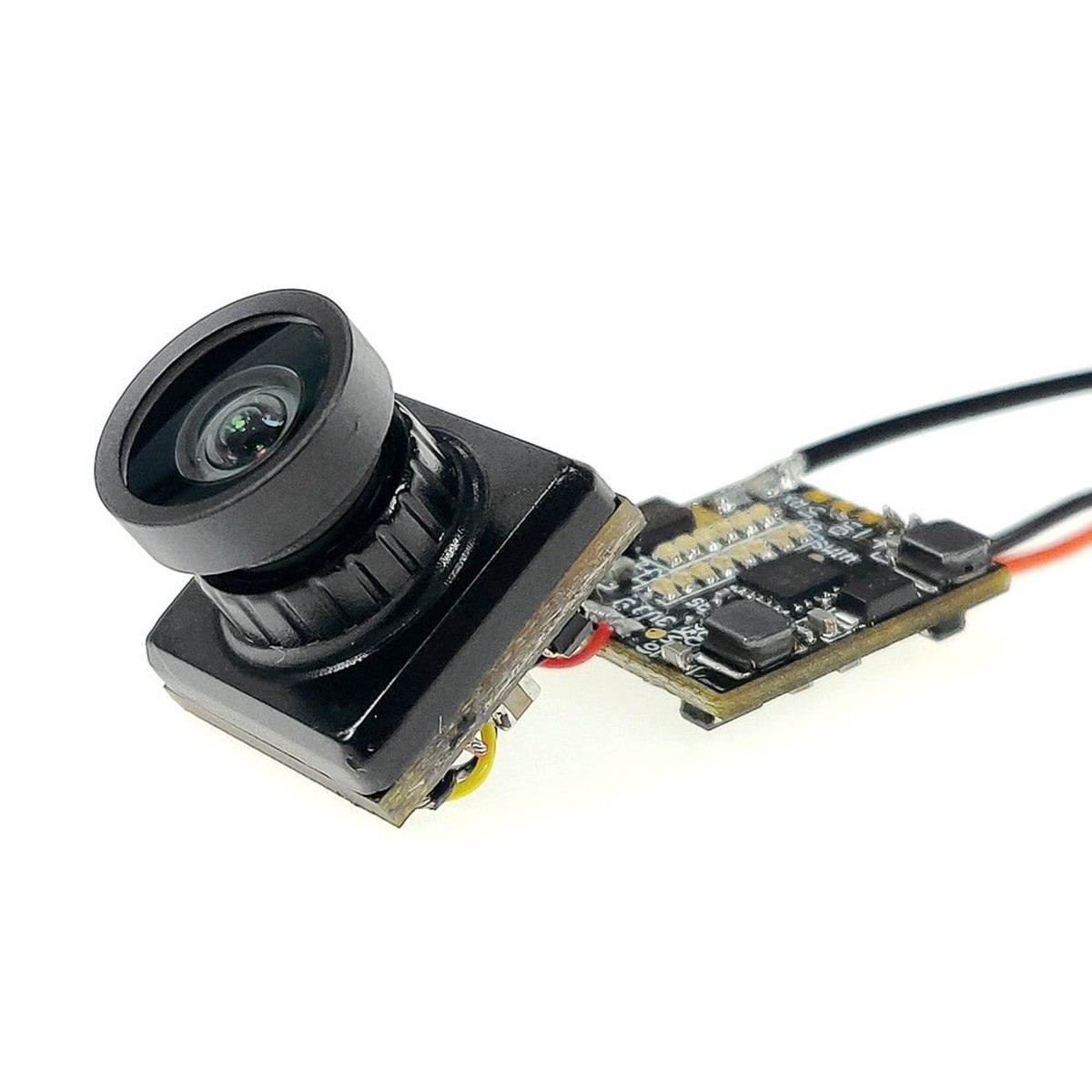

The Firefly is a micro-sized FPV camera with a tiny 5.8GHz VTX attached. Even though it’s micro-sized, the Firefly packs a 1/3″ CMOS sensor at 1200TVL. Other features global WDR, two levels of DNR, and an easy to press button not commonly found on micro VTXs. All of this comes together to weigh only 4.2g. All in all, this is a boon for micro FPV / whoop style builds!

Specifications

FPV Camera

• Color: Black
• Lens: 2.1mm
• Image Sensor: 1/3″ CMOS Sensor
• Horizontal Resolution: 1200 TVL
• TV System: NTSC (optional)
• Image: 4:3 (optional)
• Synchronization: Internal
• Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio: >52dB (AGC OFF)
• Video Output: CVBS
• Min. Illumination: [email protected]
• Auto Gain Control: YES
• BLC: YES
• WDR: Global WDR
• DNR: 2 DNR
• Dimensions: 14mm*14mm*16mm
• Wide Power Input: DC 3.3-9V
• Work Temperature: -20~+60
• Work Humidity: 20%~80%
• Weight: 4.1g (Camera + VTX)

Video Transmitter

• Feature: TBS SMART OSD
• Channel Customer: 48
• Modulation Type: FM
• Channel SEL.: Touch Switch
• Channel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDS
• Transmit Power: 131dBm
• Frequency Control: PLL
• All Harmonic: Max -50dBm
• Frequency Stability: 100KHz (Typ.)
• Frequency Precision: 200KHz (Typ.)
• Channel Carrier Error: 1dB
• Antenna Port: 50
• Power Consumption: 14020MA@5V DCIN
• Supply Voltage: 2.9-5.5V
• Operating Temperature: -10~+60
• Profile Dimension: 15mmx14mm

Firefly Manual

Includes

• 1x Firefly FPV Camera + VTX
