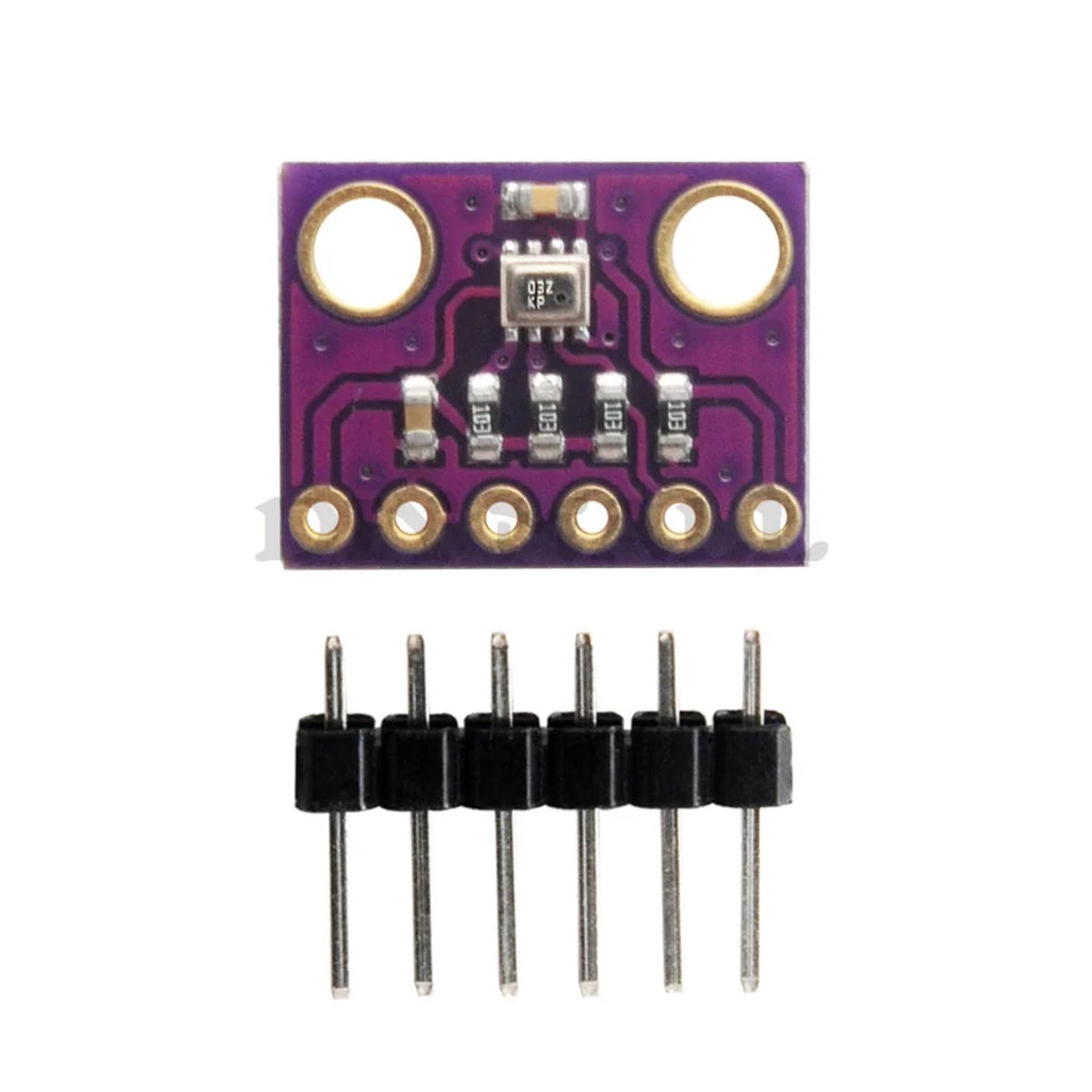

BMP280 Pressure Sensor Module Replace BMP180
Price
Original price was: $3.85.$3.08Current price is: $3.08.
Shopping information
The BMP280 is a low-cost barometric pressure and temperature sensor that doubles as a precise altimeter (1m accuracy).Key Specifications
- Pressure Range: 300 to 1,100 hPa.
- Accuracy: 1.0 hPa (pressure), 1.0C (temperature).
- Voltage: 3.3V (5V compatible with onboard regulator).
- Communication: I2C (default address 0x76 or 0x77) and SPI.
Pinout Configuration
- VCC: Power supply.
- GND: Ground.
- SCL/SCK: Clock line.
- SDA/SDI: Data line.
- CSB: Chip Select (SPI only).
- SDO: Data Out / I2C Address select.
