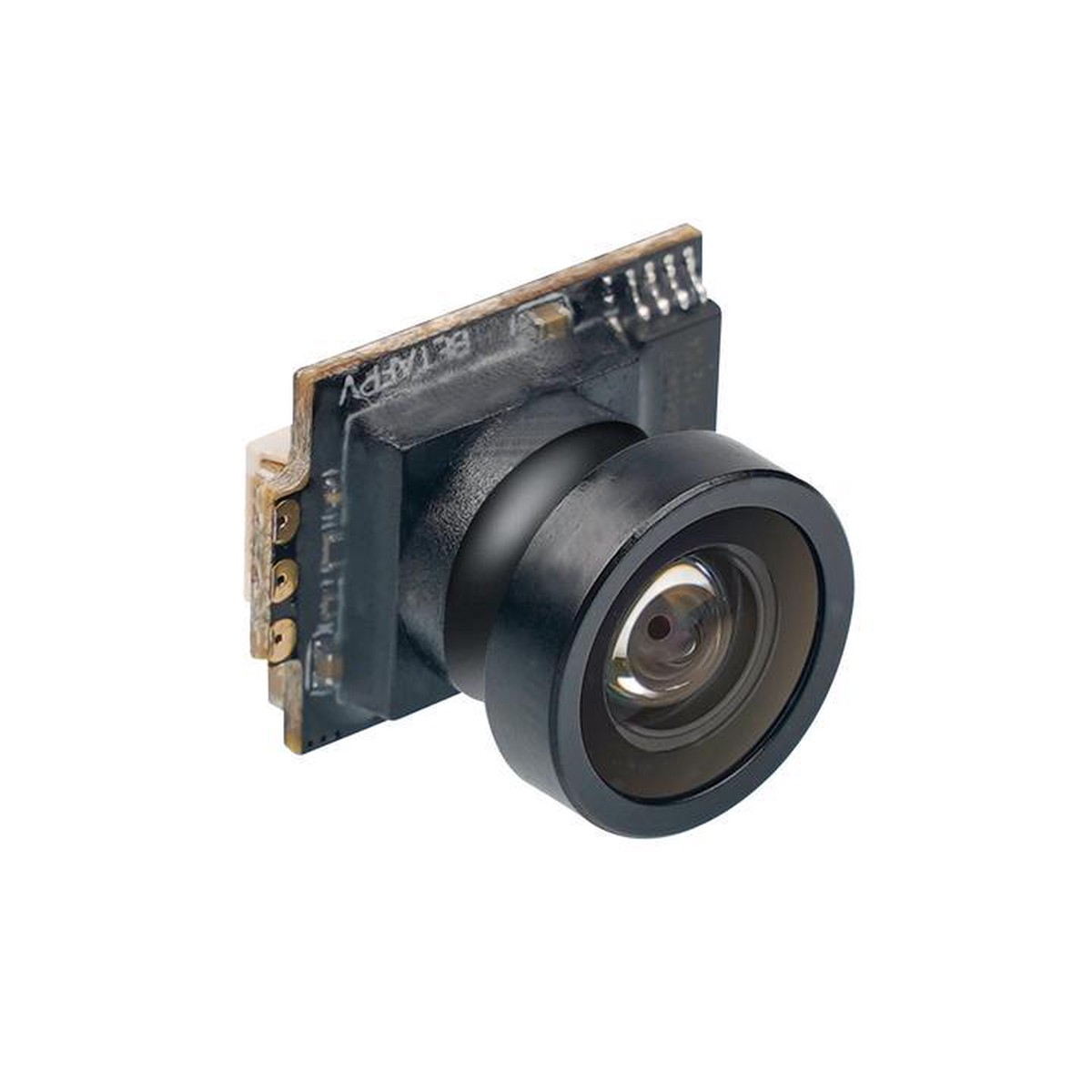

C02 Micro Camera is the lightweight camera customized forthose weight sensitivemicro whoop drones, likeMeteor65,Beta65S,Beta85 pro2,HX100SE. Adapted a 1/4” CMOS sensor, 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with themicro canopy, protect your camera well in a hard crash.

Plug-N-Play Connector

C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to installwithoutsoldering. Suitablefor Cetus seris drones,BETAFPV F4 1S AIO FC,BETAFPV M03 VTX, and NBDBeeBrainflight controllers.

Bullet Points

• Miniature, and lightweight design, weight at only1.4g. Best match with5.8G A01 VTXon micro whoop drone.
• 1200TVL resolutionand 1/4″ CMOS sensor ensure a high-quality and clear image
• Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition
• 2.1mm lens, FOV 160 beyond the wide-angle for recording more wide and beautiful scenes
• The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera

Specification

• Item: C02 Camera
• Image Sensor: 1/4″ CMOS Sensor
• Horizontal: 1200TVL with Global WDR
• Signal System: NTSC
• Lens : 2.1mm(M8) FOV 160
• S/N Ratio: >50db
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: [email protected]
• D-WDR: Auto
• Day/Night: Color
• Power: DC 3-5.5V
• Current: 110mA@5V / [email protected]
• Housing Material: ABS
• Dimension: 13*11mm
• Net weight: 1.4g

Package

• 1 * C02 FPV Micro Camera
• 1 * Injection Molded Canopy
• 1* 1/4” Camera Mounting hardware
