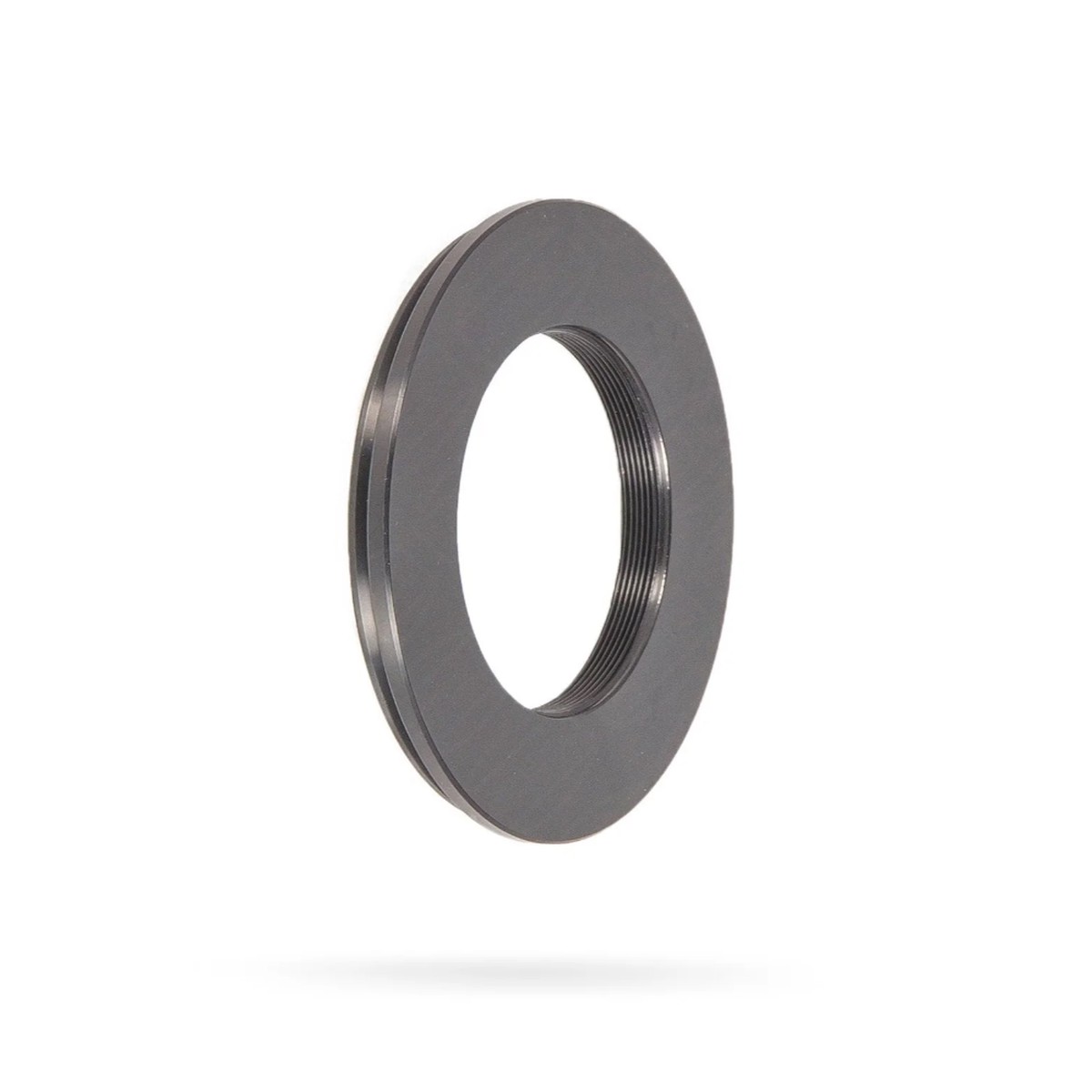

Baader 3mm UFC S70 C8 Hyperstar Adapter

• Baader UFC S70 / C8 Hyperstar, SC, HD Adapter
• Telescope-side: C8 Hyperstar, SC and EdgeHD Adapter
• Camera-side: with S70 dovetail
• Can be adapted via the S70 dovetail to the UFC filter base #2459110 as well as to UFC extensions
• Please note the below description on Hyperstar Adaptation

Important note on Hyperstar-Adaptation

The distances for adapting a camera to the Hyperstar system must be done with a precision of +/-0.3mm or better, otherwise the image quality will suffer. Please take a look at the following image showing the necessary Backfocus.

Example: A Celestron C11 Hyperstar has a backfocus requirement of 59.7mm; in addition, the focus shifts 0.66 in the extrafocal direction, if you use filters with a thickness of 2mm (as they are usually used for 2″/M48-housings). As a rule of thumb, a filter moves the focus in the extrafocal direction for 1/3 of the filters thickness. Substract the flange focal distance of the camera from this value (rounded 60.7mm). The remaining distance is adjusted by the UFC and its adapters. If you aren’t sure, please contact us for advice.

Technical Specifications

In the Box

• Baader 3mm UFC S70 C8 Hyperstar Adapter (UFC-C8HD)

Warranty & Manuals

2-Year Warranty

Baader Universal Filter Changer (UFC) – Technical Drawings

Testreport ATT 1/2018 Baader-UFC – the Swiss Army Knife of filter technology
